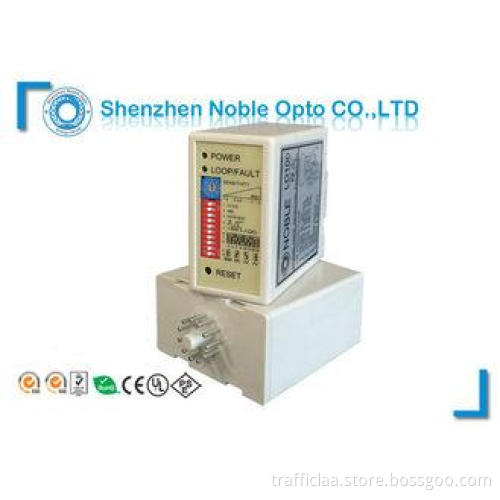

Single Channel Traffic Loop Detector with Parking Vehicle Management
Specifications:
|
Technical Parameter for single channel vehicle detector |
Self-turning range |
20-2000μH |
|
Response Times |
10-90MS |
|
|
Sensitivity |
16 way selectable levels |
|
|
Visual Indications |
Power LED-Red, Channel LED-Green |
|
|
Frequency |
Four step switch, selectable 20-80KHz |
|
|
Relay Output |
Presence Relay/Fault Relay |
|
|
Power Requirements |
110-240VAC (48 to 62Hz) |
|
|
Fault Output |
Blinks slowly, Blinks faster |
|
|
Reset |
Reset by push button on front of enclosure |
|
|
Product size |
92*76*42mm |
|
|
Label Language |
English |
|
|
Connections |
11-pin Submagnal |
|
|
Storage Temperature |
-40 to 80 Celsius degree |
|
|
Normal Working Temperature |
-40 to 70 Celsius degree |
|
Description:
Description
Loop detectors in recent years have become a popular tool having innumerable applications in policing, right from
surveillance operations to traffic control. Automation of gates and doors has become a popular usage of the
loop detector.
The digital technology of the loop detector enables the equipment to sense a change in the inductance of the
loop as soon as it detects the metal object in its path.
The inductive loop which detects the object is made of insulated electrical wire (32/020; 32 Strand, 2mm
diameter) and is arranged either as a square or rectangle shape.
The loop consists of several loops of wire and consideration should be giving to the loop sensitivity when installing on different surfaces. Setting the correct sensitivity allows the loop to operate with maximum detection (16 levels via a trimpot). When detection occurs, the detector energises 2 relays for the output (each can be configured individually). This energising of the relay can be configured into different modes, by selecting the respective dip switch.
The LD 100 Enhanced Vehicle detector is also provided with an integral fault relay, which will provide an output in the event of a loop fault condition.
Features :
Compact Size: the compact and well engineered housing Combines all of the industry requirements regarding
Features and functionality and allows this detector to be Incorporated into any or existing traffic detection system.
Diagnostic Capabilities: Comprehensive diagnostics Capabilities allow for accurate diagnosis of loop and
Installation problems.
Selectable Presence Time: The output of the presence Relay can be selected to limit a detect output to a fixed
time(time>30 minutes)while a vehicle remains on the loop Loop Frequency Indication: Interference between
adjacent loop/detectors can be determined by an integral indication, and eliminated by changing the frequency
setting.
Two separate output relays:
Presence Relay A is presence output. Can be extended for 0,2,5,8,10,15,20 or 30 seconds, programmable with external 10 way DIP switches.
Pulse Relay B, programmable with external 10 way DIP switches, provides presence, pulse on entry, pulse on exit, or failed output.
Applications:
Applications
Traffic Control Application
Vehicle Counting
Toll Systems
Traffic Analysis
Parking Control Application
Competitive Advantage:
Self-turning range: 20-2000μH
Response Times: Turn-on 10-90MS
Turn-off 10-90MS
Sensitivity: 16 way selectable
Highest 0.010% DL/L
Lowest 2.56% DL/L
