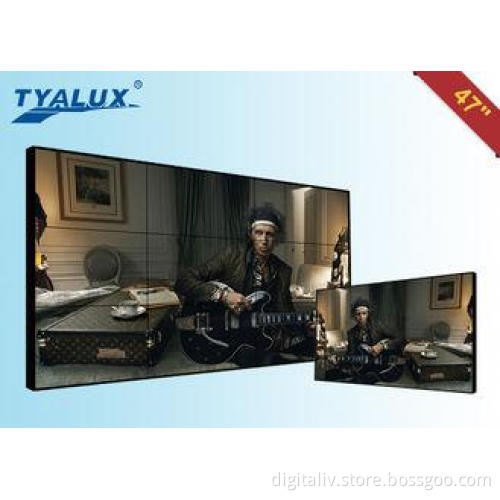

Seamless Bezel 4.9mm 500nits Brightness LED Video Wall Display for Supermarket

Description:

1: Ultra-narrow border design of the current width of only 4.9mm at present

2: Brand-new ultra-wide viewing angle technology extended(S-PVAS-IPS), ensure that 178-degree viewing angle both vertical and horizontally within the image to watch the non-deformation, color without distortion.

3: Certificate: RoHS, FCC, CCC, CE etc.

4: Rich input ports, HDMI,DVI,VGA,BNC etc

Specifications:

Specifications
Model No.		TYL-SDID4709-D
Screen size		Samsung 47 inch lcd screen
Aspect Ratio		16:9
Resolution		1920*1080
Bezel width		4.9mm
Brightness (nits)		500cd/m2
Contrast		1400:1
Visual angle (H/V)		178°
Response time		<=12ms
Life(hrs)		>60,000(hrs)
Input and output
BNC out		1
BNC in		2
VGA in		1
HDMI in		1
DVI in		1
YPBPR in		1
Power
Power supply		AC100V~240V
Maximum power consumption		120W
Standby power consumption		<=3W
Temperature
Working temperature		0°C~50°C
Working humidity		20%-80%
Appearance
Panel dimension( W x H x D) mm		1044.9(L)590(H)123(D)mm
Acessory
Cable		Can supply different kinds of cable
Video Wall Controller(Built-in each screen)
Model No.	TYL-DP4609
Input	CVBS	3BNC inputs, support PAL/NTSC all formats, 2BNC loop outputs
	VGA	1*D15 port, support SVGA/XGA/WXGA
	YPbPr/YCbCr	1* YPbPr/YCbCr input, support PAL/NTSC all formats, and 720P,1080I, HDTV
	Y/C	2*BNC inputs, support PAL/NTSC all formats
Output	LVDS	Support signal or double LVDS output, and WUXGA (1920*1080) display
Operate mode	Panel key operation(needs customization)
	Standard RS232 port( provide free control software)
	Infrared Remote Control Operation
Engineering software	Customized
Working temperature	0~70 °C
working humidity	5~95 %RH
AC voltage power supply	100-240V/50, 60Hz
power consumption	50W
Weight	About 3.5KG

Applications:

Metro,shopping mall,supermarket,Public,Show Center,Rental and advertising Center,negotiable securities,gas stations,funds,insurance companies,fashion shop,large-scale sales,golf courses,bus & train station,shopping

centre
