700nits Outside / Indoor Digital Signage Video Wall 4x4 for

Get Latest Price

Min. Order:: 1

Min. Order:: 1

Delivery Time:: 30 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China

Product Description

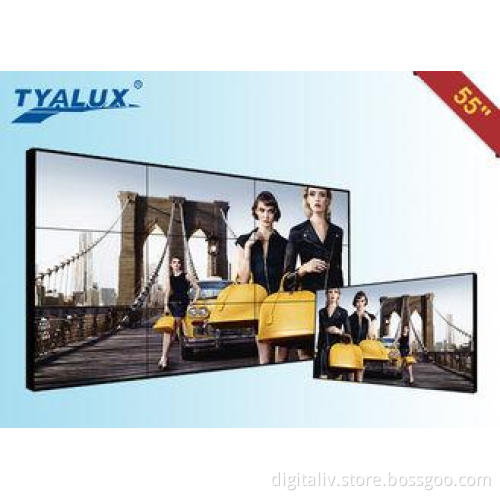

700nits 5.3mm Advertisement Digital Signage Video Wall in 4*4 with Free Software

Description:

1: DID using Samsungs proprietary LCD screen is completely different from the normal LCD screen, display long-life, high stability, and focus on the special display

2: Narrow frame design, all metal frame design

3: Auto cycle display 7/24/365.

4: Interface type: VGA, DVI and HDMI connected analog signal and digital high-definition signal

Specifications:

Specifications
Model No.		TYL-SDID5509
Screen size		Samsung 55 inch lcd screen
Aspect Ratio		16:9
Resolution		1920*1080
Bezel width		5.3mm
Brightness (nits)		700cd/m2
Contrast		4500:1
Visual angle (H/V)		178°
Response time		<=8ms
Life(hrs)		>60,000(hrs)
Input and output
BNC out		1
BNC in		2
VGA in		1
HDMI in		1
DVI in		1
YPBPR in		1
Power
Power supply		AC100V~240V
Maximum power consumption		120W
Standby power consumption		<=3W
Temperature
Working temperature		0°C~50°C
Working humidity		20%-80%
Appearance
Panel dimension( W x H x D) mm		1215.3(L)686(H)137(D)mm
Acessory
Cable		Can supply different kinds of cable
Video Wall Controller(Built-in each screen)
Model No.	TYL-DP5509
Input	CVBS	3BNC inputs, support PAL/NTSC all formats, 2BNC loop outputs
	VGA	1*D15 port, support SVGA/XGA/WXGA
	YPbPr/YCbCr	1* YPbPr/YCbCr input, support PAL/NTSC all formats, and 720P,1080I, HDTV
	Y/C	2*BNC inputs, support PAL/NTSC all formats
Output	LVDS	Support signal or double LVDS output, and WUXGA (1920*1080) display
Operate mode	Panel key operation(needs customization)
	Standard RS232 port( provide free control software)
	Infrared Remote Control Operation
Engineering software	Customized
Working temperature	0~70 °C
working humidity	5~95 %RH
AC voltage power supply	100-240V/50, 60Hz
power consumption	50W
Weight	About 3.5KG

Applications:

Movie Theaters,Fitness Halls,Massage Rooms,Airport, Finacial ,Metro,shopping mall,Security Monitoring Center, Surveillance,Show Center,Rental and advertising Center,Mass Info Display systems,Retail Shopping Mall Advertising

Why choose Weiguan Views:

1: We could customize and do OEM/ODM service for our customers, according to customers’ design and requirements

2: It is our own software

3: Simple,compact hardware device

4: Digital information display with LCD-DID Industrial HD&High-brightness narrow edge LCD
