Hotel Digital Signage Video Wall Led Advertising Board 3.5m
  • Hotel Digital Signage Video Wall Led Advertising Board 3.5m
Hotel Digital Signage Video Wall Led Advertising Board 3.5m

Hotel Digital Signage Video Wall Led Advertising Board 3.5m

Min. Order:
1
Min. Order:
1
Delivery Time:
30 Days
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: China
Product Description
Product Description

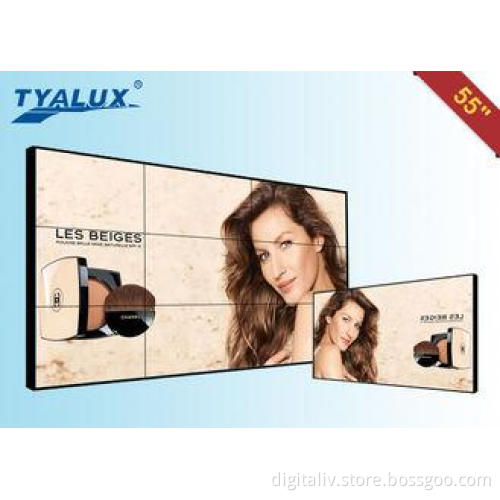

LED Digital Signage Video Wall for Hotel Information with 3.5mm Bezel Width

Description:

1: Flat-fell seam between the non-display area is only 3.5 mm

2: Service life of this product can up to 50000 hours, a new ultra wide angle of view extension technology, which comprehensively ensures the image in the display angle without distortion and deformation

3: Support Creating one window(PIP) across the screen,roaming service,scaling,PIP

4: Signal interface rich:RS232, HDMI,DVI,VGA,Y Pb Pr ,AV


Specifications:

Specifications

Model No.

TYL-SDID5509-C

Screen size

Samsung 55 inch lcd screen

Aspect Ratio

16:9

Resolution

1920*1080

Bezel width

3.5mm

Brightness (nits)

700cd/m2

Contrast

3500:1

Visual angle (H/V)

178°

Response time

<=8ms

Life(hrs)

>60,000(hrs)

Input and output

BNC out

1

BNC in

2

VGA in

1

HDMI in

1

DVI in

1

YPBPR in

1

Power

Power supply

AC100V~240V

Maximum power consumption

300W

Standby power consumption

<=3W

Temperature

Working temperature

0°C~50°C

Working humidity

20%-80%

Appearance

Panel dimension( W x H x D) mm

1213.5(L)*684.3(H)*155(D)mm

Acessory

Cable

Can supply different kinds of cable

Video Wall Controller(Built-in each screen)

Model No.

TYL-DP5509

Input

CVBS

3*BNC inputs, support PAL/NTSC all formats, 2*BNC loop outputs

VGA

1*D15 port, support SVGA/XGA/WXGA

YPbPr/YCbCr

1* YPbPr/YCbCr input, support PAL/NTSC all formats,
and 720P,1080I, HDTV

Y/C

2*BNC inputs, support PAL/NTSC all formats

Output

LVDS

Support signal or double LVDS output, and WUXGA (1920*1080)
display

Operate mode

Panel key operation(needs customization)

Standard RS232 port( provide free control software)

Infrared Remote Control Operation

Engineering software

Customized

Working temperature

0~70 °C

working humidity

5~95 %RH

AC voltage power supply

100-240V/50, 60Hz

power consumption

50W

Weight

About 3.5KG



Applications:

Airport, Finacial ,Metro,Fitness Halls,Massage Rooms,Bars,chain shops,fashion shop,meeting room,toll stations,parks,Mass Info Display systems,Retail Shopping Mall Advertising,Public Installations


Why choose Weiguan Views:

1: All the materials are all tested, quality assuranced;We select only branded screen,and all are A grade standard or even A + grade standard panel.

2: Unique DNX motion supplement image processing technology, Dynamic image without motion trail,Splicing image processing RS-232(RJ-45)loop-circuit input/output

3: Customized requirement is available , OEM&ODM are welcome.

4: Quick response, inquiry will be replied within 8 hours.
