Fire Repeater Panel for T&A 3-series intelligent fire alarm system

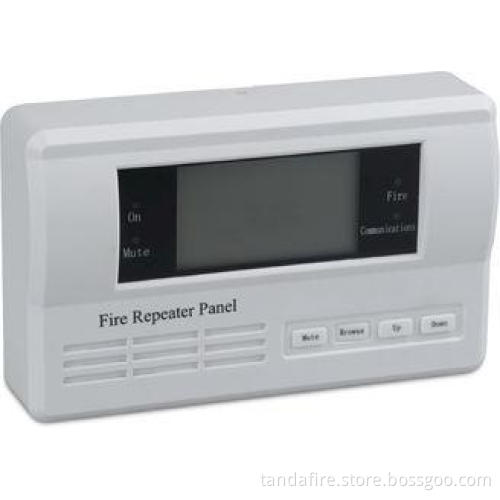

TX3403E

Fire Repeater Panel

Main Features:

• Back lit LED displaying all the information
• Display Capacity: Max 1024 pieces of the scrolling information
• Simultaneous audible and visual alarm with the control panel
• Loop wiring, every loop with max 32 repeater panels

Technical Specifications

• Operating Voltage:
  • Bus Voltage: 24VDC (15~28VDC)
  • Power Supply: 24VDC (20~28VDC)
• Operating Current:

Loop monitoring current: ≤3mA

Loop communication current: ≤3mA

Power Supply monitoring current: ≤20mA

Power Supply action current: ≤100mA

• Operating Environment:
  • Temperature: 0℃~40℃
  • Relative humidity ≤ 95% RH(40±2℃), no condensing
• Color/Weight: White/300g
• Dimension: 180mm x 110mm x 44mm
