Constant Voltage 24V Controller LED

Get Latest Price

Incoterm:: FOB

Min. Order:: 10 Piece/Pieces

Min. Order:: 10 Piece/Pieces

Delivery Time:: 5 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	CHINA
Productivity:	10000PCS/MONTH
Supply Ability:	10000PCS/MONTH
Incoterm:	FOB
Certificate:	CE RoHs

Product Description

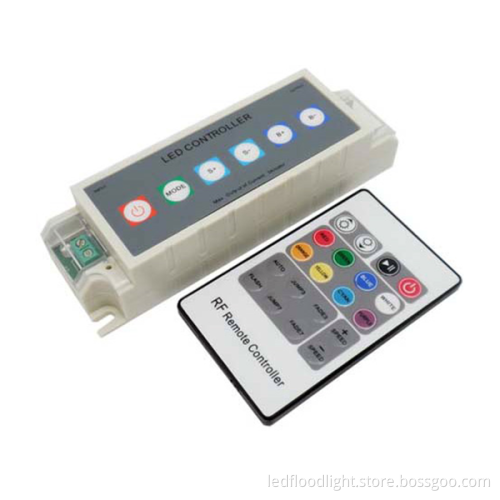

Commont 6 key controller adopts the advanced micro-control unit, cooperate with 20 key ultrathin remote controller. Using for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible strip light, wall washer lamp, glass curtain wall light and so on; It t has many advantages such as easy connection and simplicity to use; According to the actual need of customers, it can carry out jumpy changing, gradual changing, stroboflash and other effects of change.

NS-CON-RF20B(C)-3CH-LV
1. Working temperature: -20-60 degrees
2. Supply voltage: DC5V, 12V, 18V, 24V < optional >
3. Output: 3 channels
4. Connection mode: common anode
5. External dimension: L130 Χ W40 Χ H31 mm
6. Packing size: L140 Χ W50 Χ H60 mm
7. Net weight: 85g
8. Gross weight: 110g
9. Static power: <1W
10. Output current: <3A( each channel )
11. Output power: 5V<45W, 12V<108W, 24V<216W
