24V RF Controller LED for LED Light
- Payment Type:
- T/T, Western Union
- Incoterm:
- FOB
- Min. Order:
- 10 Piece/Pieces
- Min. Order:
- 10 Piece/Pieces
- Delivery Time:
- 5 Days
- Transportation:
- Ocean, Land, Air
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | CHINA |
|---|---|
| Productivity: | 10000PCS/MONTH |
| Supply Ability: | 10000PCS/MONTH |
| Payment Type: | T/T,Western Union |
| Incoterm: | FOB |
| Certificate: | CE RoHs |
| Transportation: | Ocean,Land,Air |

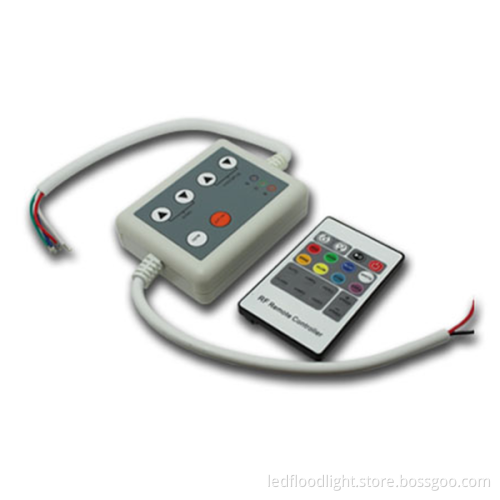

RF Controller adopts the advanced micro-control unit,it is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light,flexible light strip, wall washer lamp, glass curtain wall light and so on; It has many advantages such as low price, easy connection and simplicity to use. According to the actual need of customers,it can carry out jumpy changing,gradual changing,stroboflash and other effects of change.
NS-CON-RF20B(SJ)-3CH-LV
1. Working temperature: -20-60 degrees
2. Supply voltage: DC5V, 12V, 18V, 24V
3. Output: 3 channels
4. Connection mode: common anode
5. Controller dimension: L90×W70×H28mm
6. Remote dimension : L85ΧW52ΧH7 MM
7. Packing size: L145ΧW95ΧH51 MM
8. Net weight: 140g
9. Gross weight: 175g
10. Static power consumption: <1W
11. Output current: <4A( each channel )
12. Output power: 5V<60W, 12V<144W, 24V<288W
