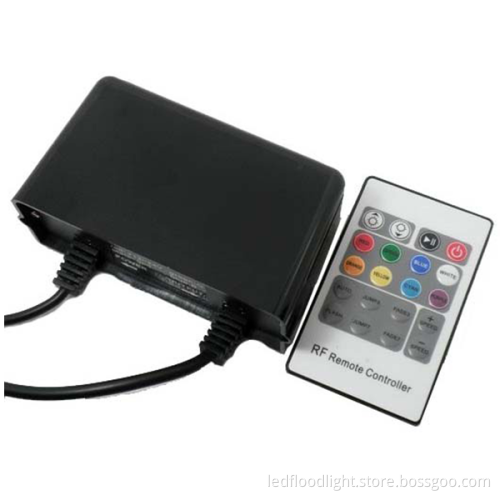

RF Waterproof LED Controller for LED Strip

RF waterproof controller adopts the advanced micro control unit, it is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, wall washer lamp, glass curtain wall light and so on; At the same time,it has many advantages such as convenient to connect, simplicity to use and others. According to actual need of customers, it can carry out jumpy changing, gradual changing, stroboflash and other effects of change.

NS-CON-RF20B(FS)-3CH-LV
1. Working temperature: -20-60 degrees
2. Supply voltage: DC5V, 12V, 18V, 24V
3. Output: 3 channels
4. Connect mode: common anode
5. Transmission/receiving frequency:433MHz
6. Remote distance: 10~15M
7. Controller dimension: L108 Χ W76Χ H43 mm
8. Remote dimension: L85ΧW52ΧH7 MM
9. Packing size: L145 Χ W95 Χ H50mm
10. Net weight: 140g
11. Gross weight: 175g
12. Static power consumption: <1 W
13. Output current: <3A (each channel)
14. Output power: 5V<60W, 12V<144W, 24V<288W
