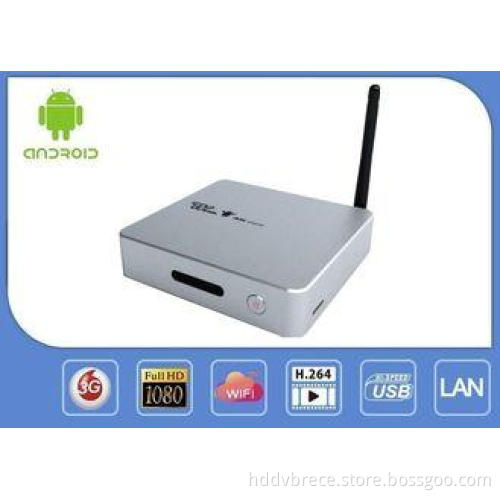

RK3288 Cortex A17 Quad 1.8GHz Android Smart IPTV Set Top Bo

Operation System

Android 4.2

Language

Chinese,English...Multi-Language support

Chipset

RK3288 Quad core ARM Cortex-A17

GPU

Mali-T764 ( 600MHz )

SDRAM

DDR3 2GB(512M*8bit*4)

Nand Flash

8GB Nand Flash.

Storage Extension

Support MicroSD(TF) ,Up to 32GB

Power Supply

DC 5V/2A via Micro USB

HDMI Out

1xHDMI(A type Male)

USB Port

2XUSB Host

AV Output

1x3.5mm Headphone Jack

Network

1xRJ45 LAN Port

Power Supply

1xDC Jack(2.1mm)

Antenna

Build in Wi-Fi antenna

Wi-Fi

Support 802.11 b/g/n Wireless protocol

Bluetooth

Support

Cable Network

10M/100M BaseT

Audio Container:

MP1,MP2,MP3,WMA,WAV,OGG,OGA,APE,FLAC,AAC,M4A,3GPP…etc Audio formats.Muliti -EQ mode,Support Synchronized lyrics and full-page lyric display.

Audio Out

HDMI Data Output

Video Decoder

MPEG-1, MPEG-2, MPEG-4,H.263, H.264, AVS, VC-1,
RV, VP6/VP8, Sorenson Spark, MVC 1920x1080P 60FPS

Video Encoder

H.264,VP8,MVC(1080P)

Resolution

Full HD1080P@30fps

H.264 Data Rate:

Up to 60Mbps

Image browser

Support JPG,JPEG,BMP,GIF,PNG,JFIF…etc photo format.Maximum resolution up to 8192x8192.

Text-Reading

Support TXT,LRC,PDF,Html,Htm,EPUB…etc formats(Depends on APK install).

Software Extension

Support Google Play & APK install.

DLNA,Wimo Protocol

Support DLNA,Wimo Protocol

Remote Control

Support Smart phone remote control,2.4GHZ wireless air mouse/Remote controller.

IM Software

Support Skype/QQ/MSN/GTALK (Depends on APK install)

Offic Software

WORD/EXCEL/PDF(Depends on APK install)

Operationg Temperature:

-10~40℃

Storage Temperature:

-20~50℃

Humidity environment

5%-90%(No condensation)

Certification

CCC,CE,EMC,FCC,Wi-Fi

Dimension

142x95x21mm

Net Weight

TBD
