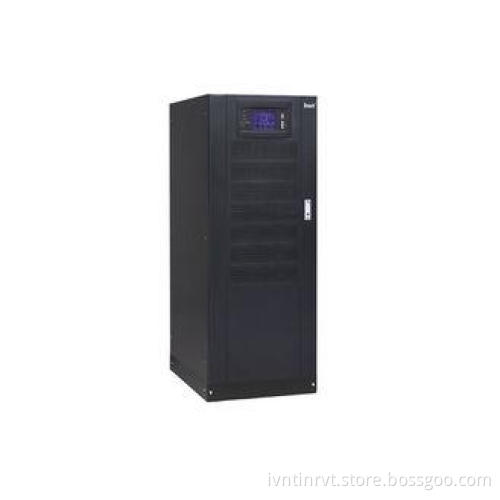

Online Ups Uninterruptible Power Supply Capacity 6KVA - 48KVA HT33 Series

Description

HT33 series is a high-end power supply which utilizes high technologies in power electronics industry. It features innovative design and incomparable reliability and performance. It has high input power factor and low input current distortion, which ensure effective energy conservation and environmental protection. It has high overall efficiency, which ensures low power consumption. 6 sets of HT33 series UPS can work together by parallel connection.

Specifications

MODEL

HTL

33006S
HTL

33006

HTL

33010S HTL

33010

HTL

33012S
HTL

33012

HTL33018S HTL33018

HTL

33024

HTL

33036

HTL

33048

HTL

33060

HTL

33072

Capacity

6KVA

10KVA

12KVA

18KVA

24KVA

36KVA

48KVA

60KVA

72KVA

INPUT

Voltage

200V/208V/220V(line to line), 50/60Hz

Phase

3Ph+N+PE

Power factor

>0.99

THDi

THDi<3%

Voltage range

-20%~+20%

Frequency range

40-70HZ

OUTPUT

Voltage Regulation

±2% (balanced load),3% (unbalanced load)

THDu

THD<2%(linear load),THD<6%(none-linear load)

Power Factor

0.8

Frequency tracking Range

50/60Hz±3Hz(Default),adjustable

Frequency precision

±0.02%(running free)

Slew Rate

0.5Hz/s from 5Hz/s(Settable)

Overload Capability

110% for 60 Min; 125% for 10 Min;150%,for 1 Min;>150%, for 200mSec

BATTERY

Voltage

±120VDC

Charger Power

20%*System Power

Voltage Precision

SYSTEM

System Efficiency

Normal mode: 92%

ECO mode: 98%

Battery mode: 99%

Display

LCD+LED, Keyboard

LCD+LED, Touch Screen +Keyboard

IP Class

IP20

Interface

RS232,RS485,Dry contacts, SNMP card, EPO

Operation Temperature

0~40℃

Relative Humidity

0~90%(non-condensing)

Noise

<55dB (1 meter away)

PHYSICAL

Weight(Kg)

97/44

97.5/46

99.5/58

164

186

208

256

278

Dimension(W*D*H)

540*690*1100

540*762*

1000

600*855

*1350

600*855

*1600

280*730*668

320*781*

788

Features

1. Online power supply, three-phase input and output, double conversion, it can support 380/400/415V,50/60Hz power grid, excellent performance of power supply and load protection.
2. Strong load adaptability, overload capacity and short-circuit capacity
3. Super wide range of input voltage and frequency, adaptable to adverse power grid, connectible with fuel generator.
4. Input power factor as high as: 0.99; input harmonic current: <3%; overall efficiency: >95%; green product, high efficiency and energy saving.

5. Digital control of rectification, inverter, charging and discharging via DSP.

6. Digital circulation control, high reliability of parallel operation.
7. Intelligent battery management scheme for long service life.
8. Intelligent self diagnosis , complete record of system failure, large memory space for saving history.
9. Front panel for easy maintenance, inlet wire from top to bottom, space-saving footprint for easy installation.
10. Modularized design of subsystem for easy onsite maintenance.
11. Redundancy design for all built-in fans to greatly enhance system reliability.
12. Friendly human-machine interface, large LCD touch screen and console keypad, a great amount of information.
13. EPO button on front panel for emergency shutdown.
14. Super long mean time between failures (>200,000h), super short mean time between overhauls (<0.5h).
15. Various optional accessories: dust screen, SNMP network communication card, lightning-protection module, battery temperature compensator, and SMS alarm.
16. Three-proofing treatment of all circuit boards.
