168W 10A Rechargeable Battery Chargers For Li-Ion / Li-Poly
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong China (Mainland) |
|---|

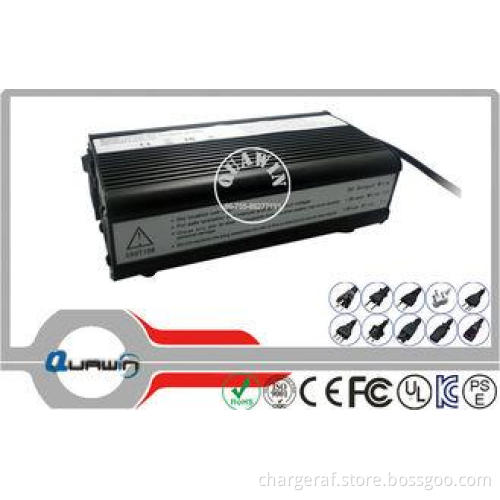

168W 10A Rechargeable Battery Chargers For Li-Ion / Li-Polymer Battery Pack
Quick Detail:
Brand Name:QUAWIN
Model Number:QW148-100-L
Use:14.8V Li-ion or Li-polymer battery pack
Type:Electric
Place of Origin:Guangdong China (Mainland)
Battery charger:automatic battery charger 16.8V
Certificate:CE FCC UL SAA PSE KC ROHS
Color:Black/Silver
Input voltage:AC 90~132V or 180~264V 45/65Hz
Output voltage:16.8V
Output current:10A
Output power:168W
Charge mode:CC—CV(Constant Current—Constant Voltage)
Output Connector:DC Jack,Small crocodile clip,Cigar lighter,XRL,Ring terminal
Packaging & Delivery :
inner package: white box/polybags/at your request outer package:carton
Delivery Detail:sample within 5 work days,7~25 days for bulk order
Specifications:
14.8V Li-ion or Lithium Polymer battery PACK
Features:
• Charging mode:CC—CV(Constant Current—Constant Voltage)
• High efficiency and low power consumption
• Stabilized output and low noice
• Efficiency(at 100% load): >=85%
• Operating temperature:-10C ~ 45C
• Storage temperature:-20C ~ 70C
• Operating humidity:5%~90%RH
Specification:
• Input: AC 90~132V or 180~264V 45/65Hz
• Output: DC 16.8V
• Charging current: 10A
• Weight: 960g(only body)
• Dimension:L183*W94*H55mm
Safety protections:
• Over Voltage protection
• Short Circuit protection
• Polarity error protection
• Over power protection
The charger turn trickle-off charging mode if battery is full (1/10C), and indicate by LED:
• Charging:Red LED
• Battery Full:Green LED
Call us to know more details datasheet.
|
ITEM |
QW148-100-L |
QW148-110-L |
QW148-120-L |
QW148-130-L |
QW148-140-L |
QW185-080-L |
|
Output voltage: |
16.8V |
16.8V |
16.8V |
16.8V |
16.8V |
21V |
|
Rated output current: |
10A |
11A |
12A |
13A |
14A |
8A |
|
Output power: |
168W |
162.8W |
201.6W |
218.4W |
235.2W |
168W |
|
ITEM |
QW185-090-L |
QW185-100-L |
QW185-110-L |
QW222-080-L |
QW222-090-L |
QW222-100-L |
|
Output voltage: |
21V |
21V |
21V |
25.2V |
25.2V |
25.2V |
|
Rated output current: |
9A |
10A |
11A |
8A |
9A |
10A |
|
Output power: |
189W |
210W |
231W |
201.6W |
226.8W |
252W |
|
ITEM |
QW259-060-L |
QW259-070-L |
QW259-080-L |
QW296-050-L |
QW296-060-L |
QW296-070-L |
|
Output voltage: |
29.4V |
29.4V |
29.4V |
33.6V |
33.6V |
33.6V |
|
Rated output current: |
6A |
7A |
8A |
5A |
6A |
7A |
|
Output power: |
176.4W |
205.8W |
235.2W |
168W |
201.6W |
235.2W |
|
ITEM |
QW333-050-L |
QW333-060-L |
QW333-065-L |
QW370-040-L |
QW370-050-L |
QW370-060-L |
|
Output voltage: |
37.8V |
37.8V |
37.8V |
42V |
42V |
42V |
|
Rated output current: |
5A |
6A |
6.5A |
4A |
5A |
6A |
|
Output power: |
189W |
226.8W |
245.7W |
168W |
210W |
252W |
|
ITEM |
QW407-040-L |
QW407-050-L |
QW444-040-L |
QW444-050-L |
QW481-030-L |
QW481-040-L |
|
Output voltage: |
46.2V |
46.2V |
50.4V |
50.4V |
54.6V |
54.6V |
|
Rated output current: |
4A |
5A |
4A |
5A |
3A |
4A |
|
Output power: |
184.8W |
231W |
201.6W |
252W |
163.8W |
218.4W |
|
ITEM |
QW481-045-L |
QW518-030-L |
QW518-040-L |
QW555-030-L |
QW555-040-L |
QW592-030-L |
|
Output voltage: |
54.6V |
58.8V |
58.8V |
63.0V |
63.0V |
67.2V |
|
Rated output current: |
4.5A |
3A |
4A |
3A |
4A |
3A |
|
Output power: |
245.7W |
176.4W |
235.2W |
189W |
252W |
201.6W |
|
ITEM |
QW592-035-L |
QW629-030-L |
QW629-035-L |
|
|
|
|
Output voltage: |
67.2V |
71.4V |
71.4V |
|
|
|
|
Rated output current: |
3.5A |
3A |
3.5A |
|
|
|
|
Output power: |
235.2W |
214.2W |
249.9W |
|
|
|
