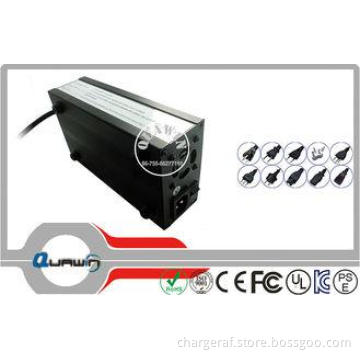

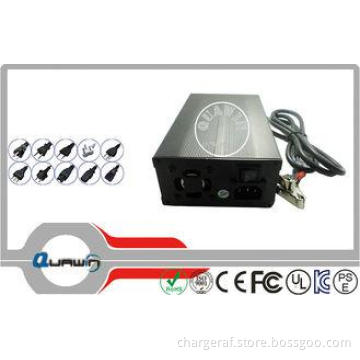

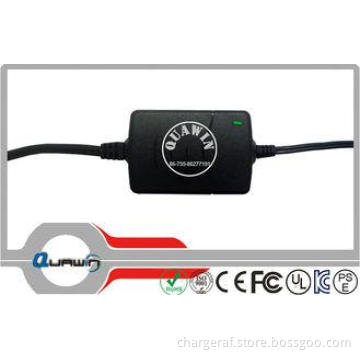

CC - CV - Float Charge Lead Acid Battery Chargers , OEM DC

CC - CV - Float Charge Lead Acid Battery Chargers , Dc Jack Lead Acid Cell Charger

Quick Detail:

Brand Name:QUAWIN

Model Number:QW060-050-S

Use:6V Lead-Acid Battery

Type:Electric

Place of Origin:Guangdong China (Mainland)

Battery charger:automatic battery charger 7.35V

Certificate:CE FCC UL SAA PSE KC ROHS

Color:Black

Input voltage:100-240VAC 50/60Hz

Output voltage:7.35V

Output current:5A

Output power:36.75W

Charge mode:CC---CV---Float Charge

Output Connector:DC Jack,Small crocodile clip,Cigar lighter,XRL,Ring terminal

Packaging & Delivery :

inner package: white box/polybags/at your request outer package:carton

Delivery Detail:sample within 5 work days,7~25 days for bulk order

Specifications:

Portable fast SLA/AGM/VRLA /GEL charger 6V lead acid battery charger

Features:

• 100V-240V AC input for worldwide power support.

• Full auto 3 satges( CC+CV(H)+CV(F) ) charging process,

• Constant charging current for faster charging, save you much more time.

• Stabilized output;low rippple

• It can charge any 6V SLA/VRLA/GEL/AGM battery with capacity 30-35Ah

Specification:

• Input: AC 100-240V 50-60Hz 3.0A

• Output: DC 7.35V

• Charging current: 5A

• Weight: 400g(only body)
• Dimension:L120*W60*H38mm

Safety protections:

• Over Voltage protection

• Short Circuit protection

• Polarity error protection

• Over power protection

The charger turn trickle-off charging mode if battery is full (1/10C), and indicate by LED:

• Charging:Red LED

• Battery Full:Green LED

Call us to know more details datasheet.
