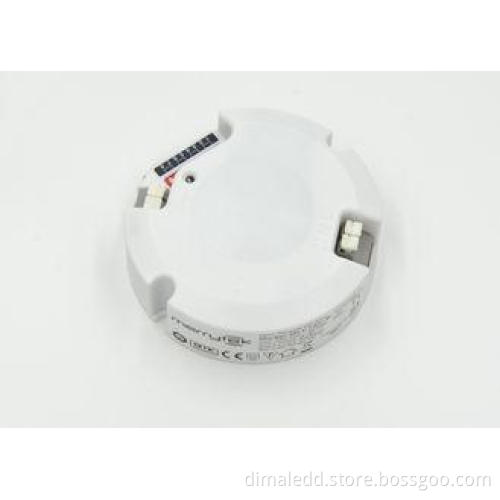

Round Shape Integrated Sensor Dimming Led Driver 350mA 16W
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|
16W on – off and step dimming function Integrated sensor led driver for ceiling lamp, TUV certified
Description:
1, Built-in installation module,esp.for ceiling lamp
2, Detection area, time delay and daylight threshold can be precisely set via DIP switch
3, TUV certified
4, 300mA / 350mA output current selectable by DIP switch
5, Patent design product (patent No.201430122092.1)
6, Compact size makes the drivers easy to be installed in ceiling lamp and get more simple lighting structure
7, Integration technology of microwave motion sensor daylight sensor and LED driver.
8, Sensor DIM LED drivers, originally pioneered by Merrytek, are innovative products integrated with HF motion detector, daylight sensor and LED power supply.
9, The products supply a simple energy-saving solution for LED ceiling lights. As all control parts are integrated in a same housing, it is very easy to assemble and save labor cost.
10, On-off function and 3-step dimming function (Corridor function) are optional.
Optional Function
Specifications
|
Operating voltage |
220~240Vac, 50/60Hz |
|
Output constant current |
300mA/ 350mA, set via DIP switch |
|
Output voltage |
28-48Vdc |
|
Efficiency: |
≥ 80% |
|
Power factor |
≥ 0.9 |
|
Transmitting power |
< 0.5mW |
|
Power consumption |
≤ 1W(standby) |
|
HF system |
5.8GHz± 75MHz, ISM wave band |
|
Detector zone |
16m x 6m |
|
Detection sensitivity |
10% / 50% / 75% / 100% |
|
Hold time |
10s / 90s / 3min / 10min |
|
Corridor function |
0s / 30s / 10min / Disable |
|
Daylight sensor |
5lux / 15lux / 50Llux / Disable |
|
Stand-by dimming level |
20%, can be customized |
|
Mounting height |
6m Max. |
|
Motion detection |
0.5-3m/s |
|
Detection angle |
150° (Wall installation) 360° (Ceiling installation) |
|
Operating temperature |
-20~50℃ |
|
IP rating |
IP20 |
|
Size |
Ф78x28.5mm |
Application:
Stairwell, Corridor, Balcony, Pathway, Washroom, Kitchen, Subway, Basement etc.
Competitive Advantage:
1, Patented product of Merrytek.
2, Integrated microwave motion sensor and LED driver in a same housing, save the material cost and installation cost.
3, Output current 300mA / 350mA selectable by dip switch.
4, Built in microwave motion sensor and daylight sensor, automatic switching and dimming based on ambient light level and motion.
5, Press-in type terminals (Input L, N, output LED+ LED-), easy assembling.
