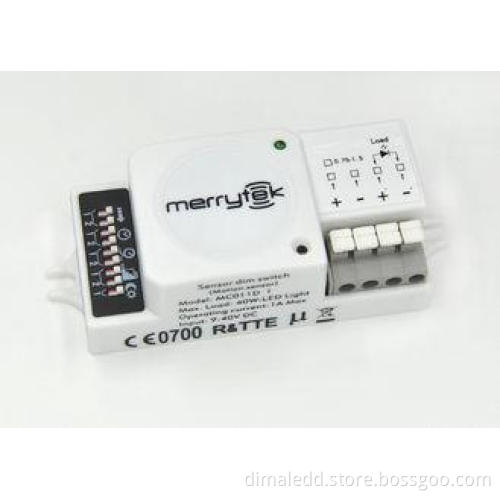

5.8GHz DC operation Microwave motion sensor MC011D1 for corridor application, CE & R&TTE
Description
- Automatic switching based on motion and ambient light level.
- 4-pole press-in terminal (L, N, N, L′), easy assembly.
- Compact size, suitable to fix within most luminaries.
- Sensor data can be simply set via DIP switch.
- Wide detection area, range up to 16m in diameter.
- The sensor provides a simple and cost-effective dimming solution. With DC operation voltage from LED driver, no need extra power from line. Without DALI or 1-10V dimmable LED divers, they are suitable for most common LED drivers and achieve 2-step dimming function. Particularly suitable for price sensitive luminaries.
Function:
On-off function
2- Step dimming function
Specifications:
|
Operating voltage |
9~40Vdc |
|
Rated load |
Max.40WLED light |
|
Operating current |
1A max |
|
HF system |
5.8GHz±75MHz, ISM wave band |
|
Power consumption |
≤0.5W(standby), <1W(operation) |
|
Transmitting power |
<0.5mW |
|
Detection zone Max.(D x H) |
16m x 6m |
|
Motion detection |
0.5~3m/s |
|
Detection angle |
150°(wall installation) 360°(ceiling installation) |
|
IP rating |
IP20 |
|
Operation Temperature |
-20℃~50℃ |
|
Hold time |
10s/90s/3min/10min |
|
Detection sensitivity |
10%/50%/75%/100% |
|
Dimming level |
10%/20%/30%/40% |
|
Dimming mode |
Step dimming |
|
Daylight Sensor |
30lux/Disable |
|
Life time |
50000 hours |
|
Guaranty |
5 years |
Wiring:
Applications:
Stairwell, Corridor, Balcony, Pathway, etc.
