5.8GHz ISM band 200w DC Motion Sensor , Wide Detection Area
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|

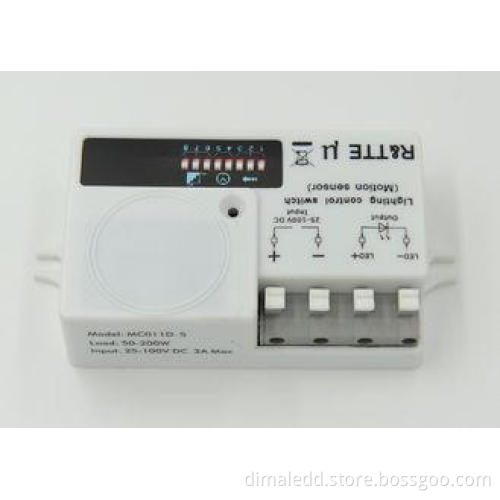

5.8GHz ISM band DC input Microwave motion sensor MC011D5 with dimming function, CE & R&TTE
Description
- 200w DC operation Microwave motion sensor
- Gradually dimming design
- Wide detection area, range up to 16m in diameter
- Support on off and 3 step dimming function
- Max operating current 2A max
- Economic solution to achieve dimming function
- No need dimmable led driver, simple constant current led driver is comparable
- Easy installation, workable for ceiling lamp, tri-proof light.
- Automatic switching based on motion and ambient light level.
- 4-pole press-in terminal (L, N, N, L′), easy assembly.
- Sensor data can be simply set via DIP switch.
- The sensor provides a simple and cost-effective dimming solution. With DC operation voltage from LED driver, no need extra power from line. Without DALI or 1-10V dimmable LED divers, they are suitable for most common LED drivers and achieve 2-step dimming function. Particularly suitable for price sensitive luminaries.
On-off function
2- Step dimming function
Specifications:
|
Operating voltage |
25 ~ 100Vdc |
|
Rated load |
Max.200wLED light |
|
HF system |
5.8GHz±75MHz, ISM wave band |
|
Operating current |
2A max |
|
Power consumption |
≤0.5W(standby), <1W(operation) |
|
Transmitting power |
<0.5mW |
|
Detection zone Max.(D x H) |
16m x 6m |
|
Motion detection |
0.5~3m/s |
|
Detection angle |
150°(wall installation) 360°(ceiling installation) |
|
IP rating |
IP20 |
|
Operation Temperature |
-20℃~50℃ |
|
Hold time |
10s/1min/3min/10min |
|
Detection sensitivity |
10% / 50% / 75% / 100% |
|
Dimming level |
10%/20% / 30% / 40% / 50%/ 60% / 70%/80% |
|
Dimming mode |
Step dimming |
|
Daylight Sensor |
10lux / 30lux / 50lux /Disable |
|
Stand-by period |
0s / 5min / 10min / 30min /100min / +∞ |
|
Life time |
50000 hours |
|
Guaranty |
5 years |
Applications:
Stairwell, Corridor, Balcony, Pathway, etc.
