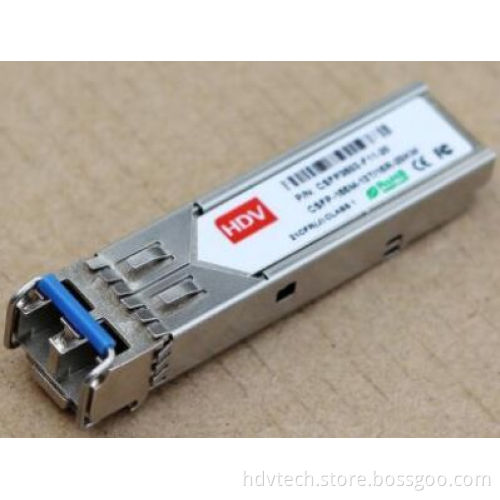

Csfp Optical Transceiver

Get Latest Price

Min. Order:: 1

Min. Order:: 1

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Description The CSFP transceivers are high performance, cost effective modules supporting 2.488Gbps and 20km transmission distance with SMF. The transceiver consists of three sections: a laser transmitter, a photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

Features
Support 2.488Gbps data links
2xBi-directional transceivers in 1 SFP transceiver package
Compliant with CSFP MSA Option 2 and SFF-8472
Digital Diagnostic Monitoring:Internal Calibration or External Calibration
Compatible with SONET OC-48 system
Compatible with RoHS
+3.3V single power supply
Operating case temperature:
0 to +70°C(Commercial)
-40°C to +85°C (Industrial)
Applications
SDH STM-16 and SONET OC-48 system
Fiber Channel
Switch to Switch interface
Point to Point FTTH Application
Other optical transmission systems
