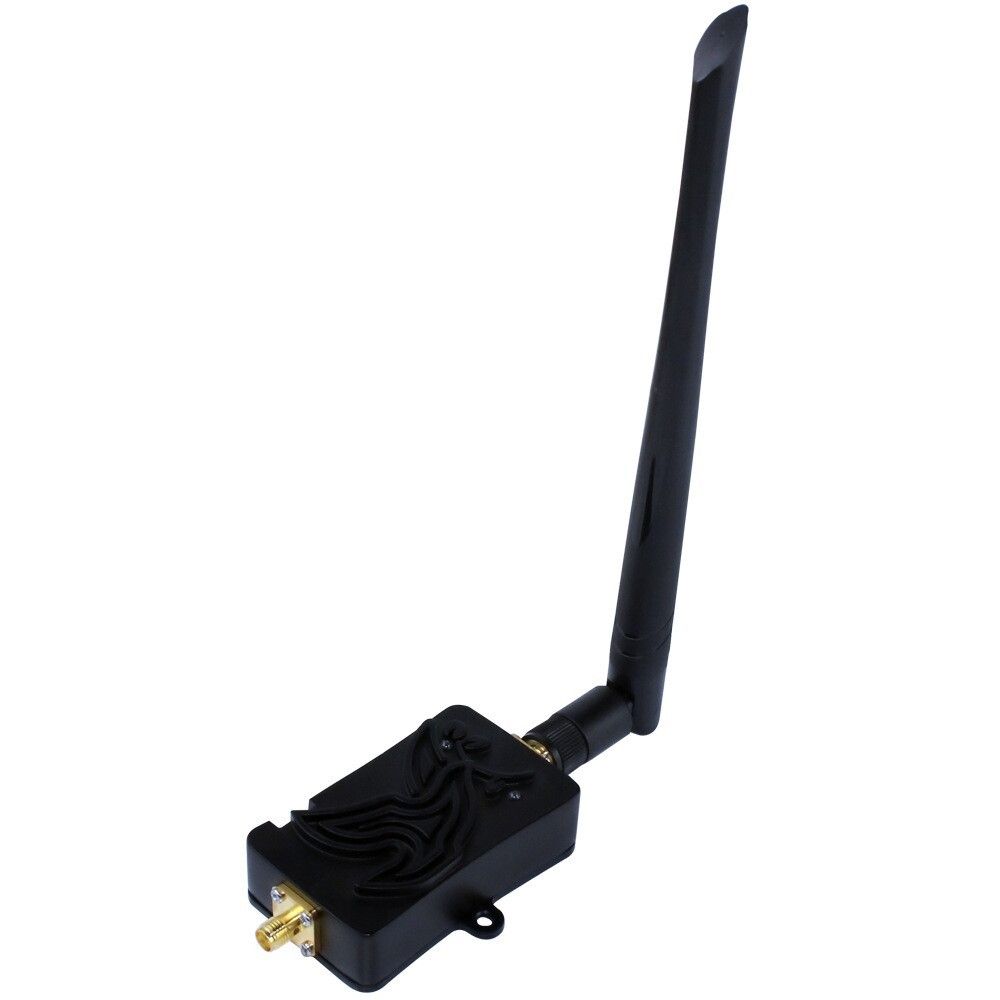

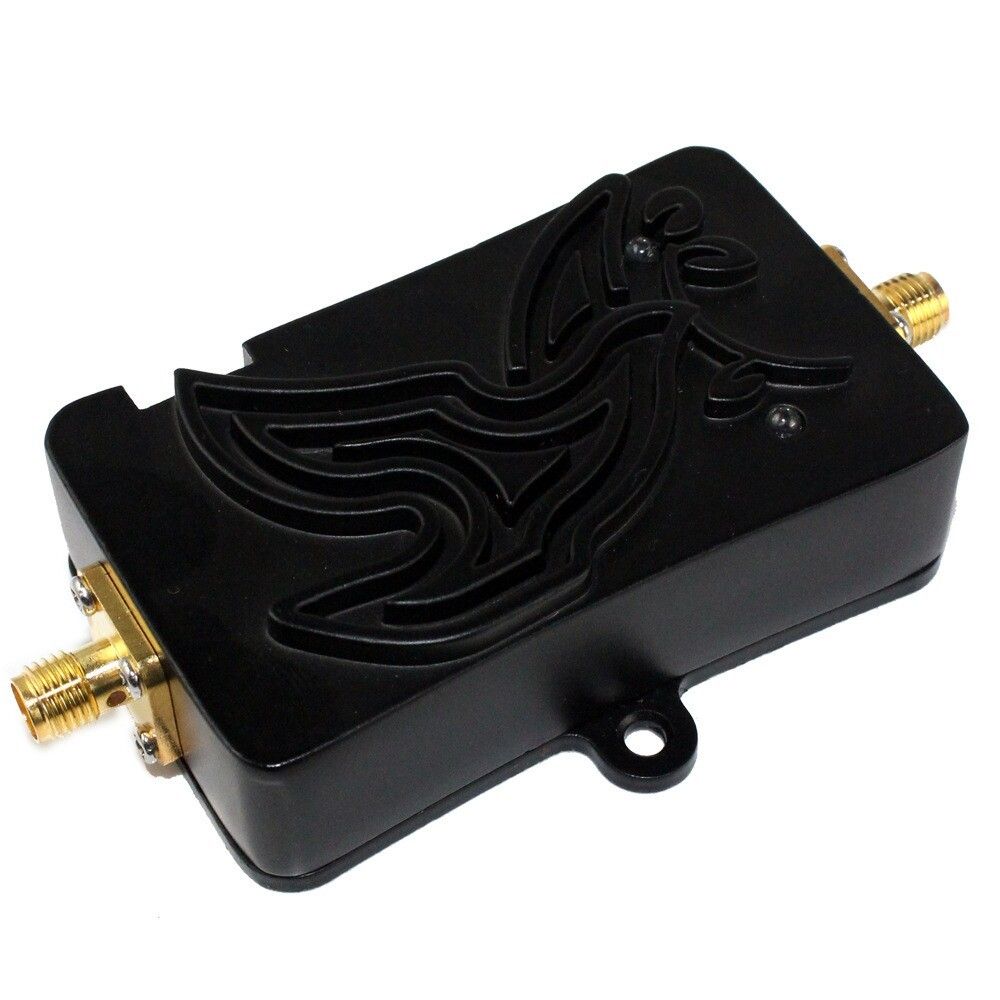

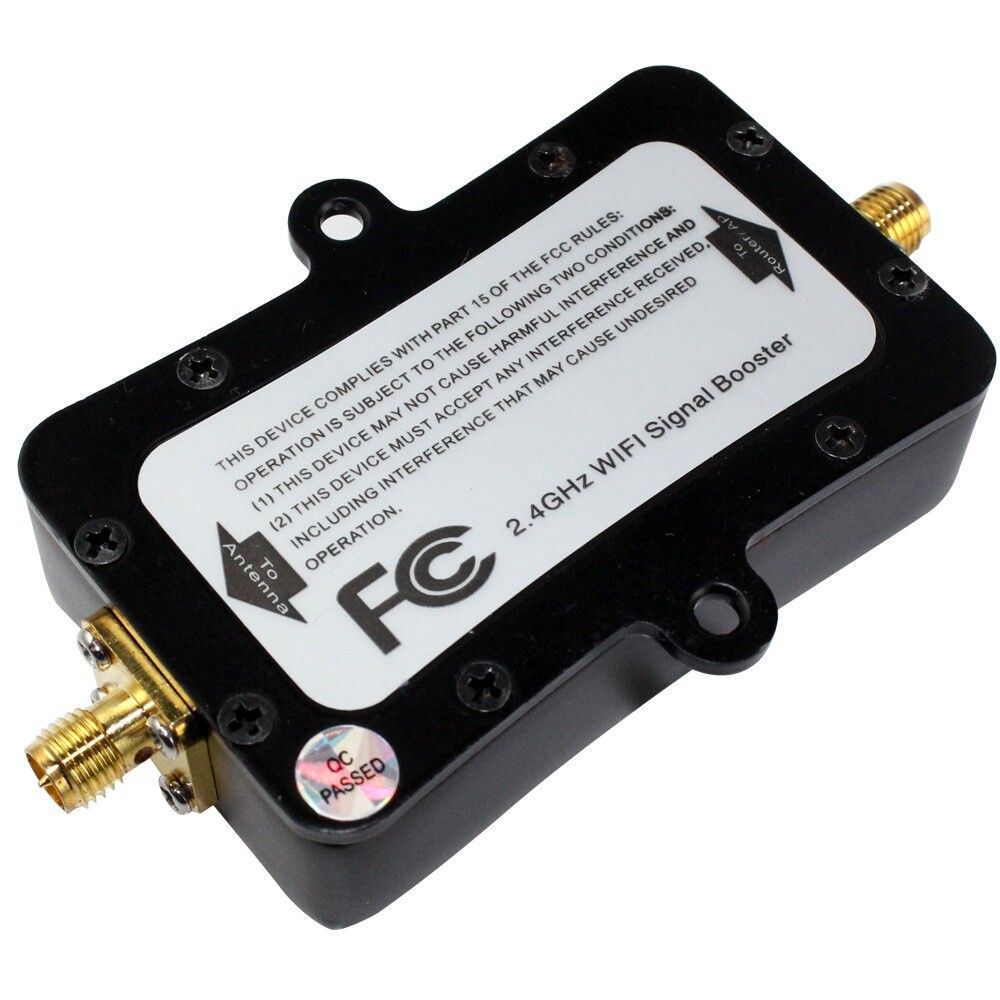

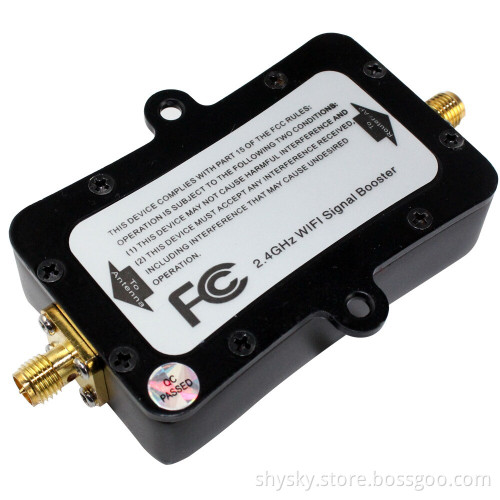

EDUP EP-AB007 2.4GHz 4W Wireless Repeater WiFi Range Extender Signal Booster

EDUP EP-AB007 2.4GHz 4W Wireless Repeater WiFi Range Extender Signal Booster

This Wireless WiFi Repeater WiFi Range Extender WiFi Signal Booster can strengthen radio signals to increase the effective range and coverage for Wi-Fi communication. Simply attach this booster or router and watch your connectivity range grow. It will help easily build a wireless infrastructure for homes or businesses use while saving on wiring costs.

Features

20 times the power, improving the link quality and coverage of certified WLAN devices

2.5dB ultra-low noise

Wide 6V to 18V operating input range

Working with certified IEEE802.11 b/g/n wireless LAN devices

Simply plug and play, no software needed

Specifications

Frequency Range 2.4-2.5GHz

Operating Voltage 6V-18V

Receiving Gain 10dB + 1

Transmission Gain 13dB + 1

Input Trigger Power Min 3dBm; Max 20dBm

Max Output Power 36dBm (4W)

Noise Figure <2.5dB

TX/RX Switch Time Delay <1 us

Operating Ambient Temperature -40-70 degrees

Operating Humidity Up to 95% rel.humidity

Package Included:

1 x Signal Booster

1 x Power plug

1 x SMA cable

1 x 6dBi antenna

Attention:

The power amplifier is not suitable for use in high power devices

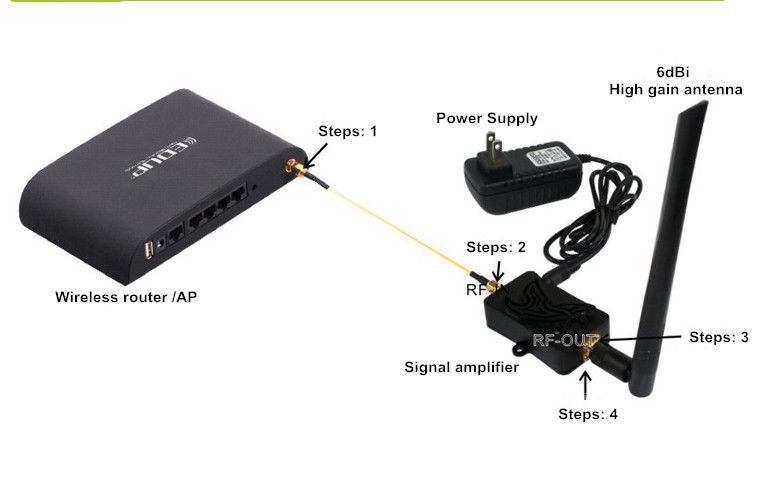

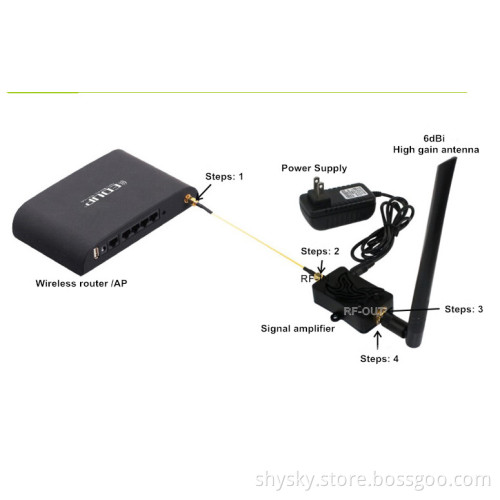

Use

Step 01: Remove the Antenna from the Wireless Router (Access Point).

Step 02: Use this cable (RG316) to connect Amplifier 'input' port with router 'output' port: note that cable is in standard spec.

Step 03: Connect the antenna with 'output' port of Amplifier.

Step 04: Power the amplifier with the matching source adapter: DC 12V.
