Distribution cable
- Payment Type:
- T/T
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 3 Days
- Transportation:
- Ocean, Air
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Payment Type: | T/T |
| Certificate: | ROHS |
| Transportation: | Ocean,Air |

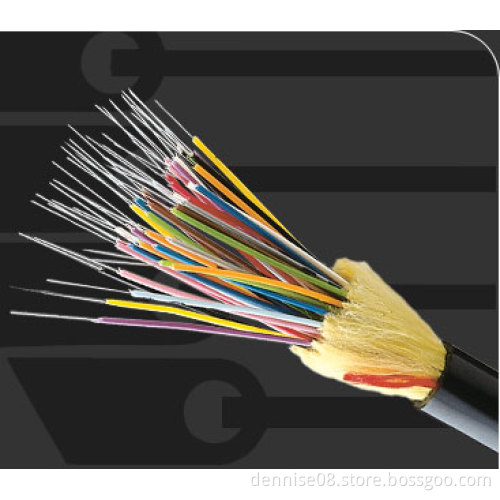

Distribution cable use several 900um flame-retardant tight buffer fiber as optical communication medium, the tight buffer fiber wrapped with a layer of aramid yarn as strength member units. The cable is completed with a PVC or LSZH jacket.
Standards
CharacteristicsComply
with standard GR-409, IEC 60794-2-20/21, meet the requirements of UL approval
for OFNR .
Ø Select quality fiber to ensure excellent transmission performance
Ø Adopt strict process and raw materials control to guarantee the lifespan of 15 years
Ø Compact structure, flexible, small bending radius, excellent stress, strain properties
Ø The jacket anti-corrosion, anti-water, anti-ultraviolet radiation, flame-retardant and harmless to environment
Ø All dielectric structure design, without electromagnetic induction effect
|
Fiber Type |
G652D,G655,G657,OM1,OM2,OM3,OM4 |
|||||||
|
Coating Material |
PVC, OFNR,OFNP,LSZH,LSOH |
|||||||
|
Fiber cores No. |
4 |
6 |
8 |
12 |
16 |
24 |
48 |
|
|
OD (mm) |
4.8±0.2 |
5.2±0.2 |
6.2±0.2 |
6.8±0.2 |
7.4±0.4 |
8.2±0.4 |
12.5±0.5 |
|
|
Max Tensile Strength (N) |
Short term |
270 |
330 |
480 |
600 |
660 |
720 |
1200 |
|
Long term |
90 |
110 |
160 |
200 |
220 |
240 |
520 |
|
|
Min Bending Radius (mm) |
Dynamic |
20D |
20D |
20D |
20D |
20D |
20D |
20D |
|
Static |
10D |
10D |
10D |
10D |
10D |
10D |
10D |
|
|
Max crush resistance (N/100mm) |
1000 |
|||||||
|
Temperature range |
PVC: -20°C ~+90°C ;LSZH:-20°C ~+70°C |
|||||||
Specification
