Marine Auto Pilot

ONWA®

AUTOPILOT

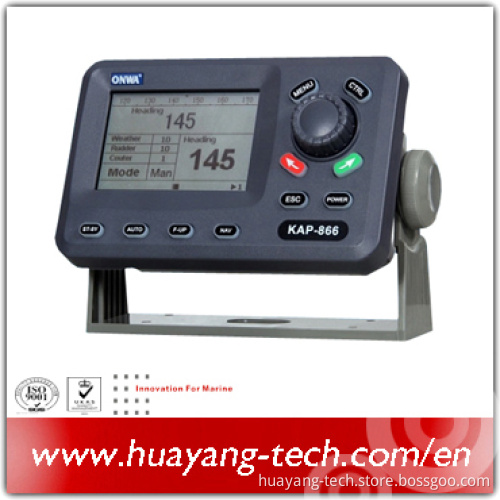

MODEL: KAP-866

FEATURE:

1) Locks onto current course when auto is engaged

2) Pre-set course select enables easy

3) Rudder and counter rudder controls enable autopilot to be customized to a vessel's specific steering characteristics

4) Off course alarm warns when vessel is not responding to autopilot control

5) Navigate with designed route of GPS Navigator

6) Timer can be used as an adjustable watch alarm

7) Gyro compass input with Gyro converter unit (optional)

8) Designed to have up to three remote steering position

SPECIFICATION

Functions:

1. Auto mode:

- Input course directly from numberic keypad

- Change course by panel dial knob

- Change course by fix or handheld remote (optional)

2. Manual mode

3. Power Steering mode

4. GPS Navigation mode

5. Remote mode

Steering System:

Hydraulic or electro-mechanical

Heading Sensor:

1. Magnetic compass thru pick up coil (standard)

2. Gyro compass thru gyro converter (option)

Nav Sensor:

GPS, Loran outputting date in NMEA0183

Adjustment of Parameters:

1. Weather, Rudder and Counter Rudder from panel.

2. Trim, Rudder Ratio and Rudder Limit from PCB pre-set

Alarm:

1. Off course alarm: 1 ~ 180 degree adjustable

2. Watch alarm: 1 ~ 60 adjustable watch alarm. Will trigger external alarm if not reset within 60 sec.

3. NMEA data from GPS Navigator in GPS Navigation mode.

Power Supply:

12V or 24 VDC, Standby 0.4A, Auto mode

1.0 A for control unit only.

Equipment List:

- KAP-866 control unit

- Heavy duty rudder feedback unit

- Magnetic compass pick up coil

- Standard accessories

- Standard installation kit

- Operator manual
