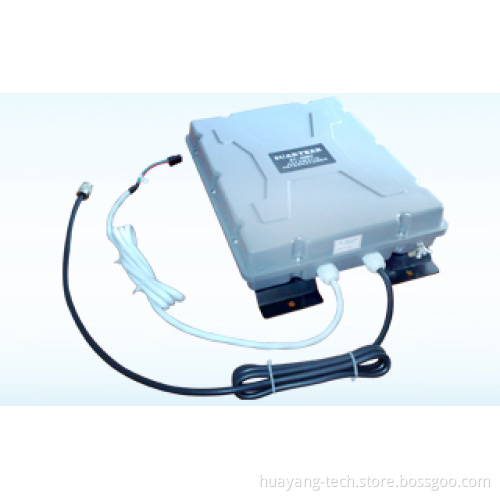

ZT-2001 HF Automatic Antenna Tuner

Product Name:ZT-2001 HF Automatic Antenna Tuner
Description of the Product:
ZT-2001 HF Automatic Antenna Tuner can be used on land, vehicles, vessels, etc, matching with HF radios less than 150W. It is capable to maximize radiation energy of the antenna. In addition, it can automatically detect radio-frequency signals and select the appropriate coupling state. The initial tuning needs to take a few seconds. After completion of the tuning for a frequency to be used, the state is locked and stored. Up to 170 groups can be stored. As for the same frequency, it can achieve automatic identification and finish the re-tuning within 10 milliseconds. If the antenna and the radio-frequency are changed, ZT-2001 will immediately perform the re-tuning according to the new condition and store the information.
Technical Parameters:
(1)Frequency Range:1.6-30MHz
(2)Input Power:3-150WPEP
(3)Standing-wave Ratio (SWR): less than 2:1
(4)Operating Voltage: 13.8VDC, range of 12-15VDC
(5)Tuning Power Supply:0.9A
(6)Initial Tuning Speed:approximately 2 seconds
(7)Storage Tuning Speed: less than 10 milliseconds
(8)Storage Frequency: 170 groups
(9)Allowed Length of the Antenna: 2.5-25 meters at 3.5-30MHz;25 meters
(10)Operating Temperature:-25℃-+45℃
