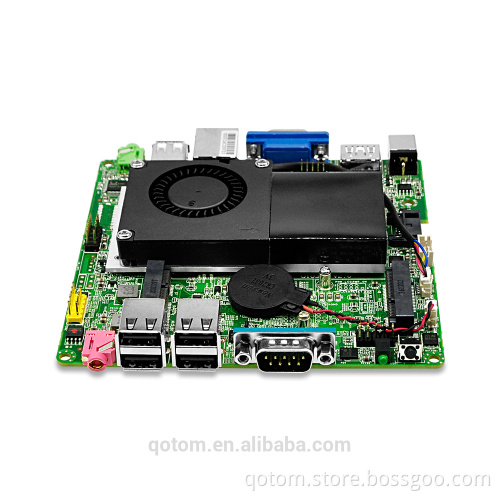

OEM/ODM Mini ITX Motherboard Celeron 1037U VGA 4*USB2.0 1*RS232 1*RJ45 Suitable For Video Player,All In One Machine,ATM,TV BOX

Product Description

Mechanical standard	NANO ITX Industrial Motherboard
	120mm x 120mm
Chipset	Intel NM70
Processor	Intel Celeron Processor 1037u (2M Cache, 1.80 GHz Dual-Core)
	With up to 17 W TDP
BIOS	AMI BIOS
	16MBit SPI BIOS
Memory	One 204-pin DDR3 SDRAM Small Outline (SO-DIMM) socket
	Support DDR3 1333 MHz and DDR3 1600 MHz SO-DIMM
	Support 8GB MAX
Graphics	Intel HD Graphics
	Display: VGA / HD Video Dual Display
	* 1x HD Video(port), 1x VGA (pin)
LAN	2 x Realtek RTL8111E 1000M
Audio	Realtek ALC662 HD Audio Decoding controller
	6 Channel Audio output
	Line out + MIC IN Port
COM	1x COM(RS232 port)
USB	4x On-board USB 2.0
	1x Pin interface USB 2.0
Storage	1x SATA 3.0 (6Gb/s)
	1x Mini PCIE port
Expansion Port	1x PCI Express Full-Mini Card connector ( for mSATA SSD )
	1x PCI Express Half-Mini Card connector ( for WIFI and Bluetooth )
	1x SATA power connector
	1x SATA 3.0  connector (6Gb/s)
	1x DDR3 SO-DIMM socket
	1x Front panel header
	1x 9 Pin VGA header
	1x LVDS header (optional)
	1x Front panel audio header
	1x Front panel dual-port USB 2.0 header
Front Panel	1x Push button ( With LED) for Power ON/OFF
	4x USB 2.0 ports
	1x Serial port
	1x HDD LED
	1x Mic in port
Black Panel	1x DC in connector
	1x HDMI port
	1x VGA（D-Sub）port
	2x RJ45 1000M port
	1x Speaker out port
Power Supply	DC 12-19V
Working condition	Operation Temperature-10º-50ºC
	Operation Humidity 10%-90% Relative Humidity,
	Non-Condensing
Accessories	Cable for SATA HDD
