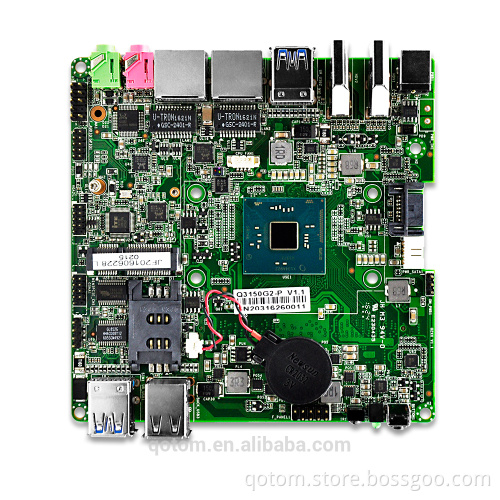

OEM/ODM Mini ITX Motherboard Celeron N3150 (2M Cache, 2.08 GHz, Braswell) Mini PC motherboard

Product Description

TYPE	Description
Mechanical standard	Nano Industrial Motherboard
	120mm x 120mm
Processor	Intel Celeron Processor N3150 (2M Cache, 2.08 GHz, Braswell)
	With up to 6W TDP
BIOS	AMI BIOS
	64MBit BIOS
Memory	One 204-pin DDR3 SDRAM Small Outline (SO-DIMM) socket
	Support DDR3L 1333 MHz and DDR3L 1600 MHz SO-DIMM 1.35V
	Support 8GB Max
Graphics	Intel HD Graphics
	Display: VGA / HDMI Three Display
	* 2 x HDMI (port), 1 x VGA (header)
LAN	2 x Realtek 8111E 1000M
Audio	Realtek ALC662 HD Audio Decoding controller
	6 Channel Audio output
	Line out + MIC IN Port
COM	1 x COM port header
USB	2 x On-board USB 2.0
	4 x On-board USB 3.0
	1 x Pin interface USB 2.0
	1 x SATA 3.0 (6Gb/s)
	1 x Mini PCIE port
Expansion Port	1 x PCI E xpress Full-Mini Card connector ( for mSATA SSD )
	1 x PCI E xpress Full-Mini Card connector ( for WIFI/ Bluetooth/3G Card )
	1 x SIM port (optional)
	1 x SATA power connector
	1 x SATA 3.0 connector (6Gb/s)
	1 x DDR3 SO-DIMM socket
	1 x Front panel header
	1 x GPIO header
	1 x Serial port header
	1 x D-sub header
	1 x Automatically boot jumper
	1 x USB 2.0 header
	1 x Audio header
Front Panel	1 x Push button for Power ON/OFF
	1 x Power LED
	1 x IR Receiver
	2 x USB 3.0 ports
	2 x USB 2.0 ports
Black Panel	1 x DC in connector
	2 x HDMI Connectors
	2 x RJ45 1000M ports
	2 x USB 3.0 Ports
	1 x Mic in port
	1 x Speaker out port
Power Supply	DC 12V
Working condition	Operation Temperature -10º-50ºC
	Operation Humidity 10%-90% Relative Humidity,
	Non-Condensing
Accessories	Cable for SATA HDD

Detailed Images About US Packing
1*motherboard
1* SATA Cable Delivery
