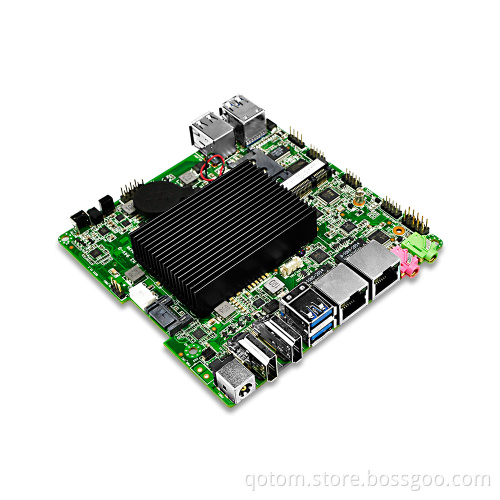

Qotom Nano Mini itx fanless motherboard N3150, x86 Dual lan micro industrial pc mainboard

Product Description

Mechanical standard	Nano Industrial Motherboard
Size	120mm x 120mm
Processor	Intel Celeron Processor N3150 (2M Cache, 2.08 GHz, Braswell)
Power Consumption	With up to 6W TDP
BIOS	AMI BIOS   64MBit BIOS
Memory	One 204-pin DDR3 SDRAM Small Outline (SO-DIMM) socket Support DDR3L 1333 MHz and DDR3L 1600 MHz SO-DIMM 1.35V 8GB Max
Graphics	Intel HD Graphics  Display: VGA / HD video  * 2 x HD Video (port), 1 x VGA (header)
LAN	2 x Realtek 8111E 1000M
Audio	Realtek ALC662 HD Audio Decoding controller  6 Channel Audio output Line out + MIC IN Port
COM	1 x COM port header
USB	2 x On-board USB 2.0 4 x On-board USB 3.0 1 x Pin interface USB 2.0
Storage	1 x SATA 3.0 (6Gb/s)
	1 x Mini PCIE port
Expansion Port	1 x PCI E xpress Full-Mini Card connector ( for mSATA SSD ) 1 x PCI E xpress Full-Mini Card connector ( for WIFI/ Bluetooth/3G Card ) 1 x SIM port (optional) 1 x SATA power connector 1 x SATA 3.0 connector (6Gb/s) 1 x DDR3 SO-DIMM socket 1 x Front panel header 1 x GPIO header 1 x Serial port header 1 x D-sub header 1 x Automatically boot jumper 1 x USB 2.0 header 1 x Audio header
Front Panel	1 x Push button for Power ON/OFF 1 x Power LED 1 x IR Receiver 2 x USB 3.0 ports 2 x USB 2.0 ports
Back Panel	1 x DC in connector 2 x HD Video Connectors 2 x RJ45 1000M ports 2 x USB 3.0 Ports 1 x Mic in port 1 x Speaker out port
Power Supply	DC 12V
Working condition	Operation Temperature -10º-50ºC Operation Humidity 10%-90% Relative Humidity, Non-Condensing
Accessories	Cable for SATA HDD

detail pictures mainboard

1	12V DC in connector
2	HD video connector
3	4 * USB 3.0 ports
4	Lan connector
5	MIC: Connect to outside microphone
6	(Line out): Connect to outside audio device
7	2 * USB 2.0 ports
8	IR Receiver
9	Power led
10	Power button
11	Front panel audio header
12	GPIO header
13	VGA extension header
14	Serial port expansion header (COM1)
15	Front panel USB 2.0 header
16	Mini PCI Express connector for WIFI,Bluetooth,3G module
17	SIM card socket
18	CPU fan header
19	Battery connector
20	Front panel header
21	DC in header (optional)
22	SATA port
23	SATA power connector
24	Automatically boot jumper
25	Processor (Support Braswell )

26	Mini PCI Express connector for MSATA SSD
27	DDR3L SO-DIMM socket

mainboard for "6S" desktop:

Special: Can install 2.5'' HDD and Msata SSD at the same time.
Stable: Intel Celeron J1900 Quad Core +Haswell structure+ Intel HD Graphics+Fanless, be able to work 24hours per day
 small: tiny size and smart design ,easily put.
Smooth: blue-ray and Ultra HD streams, full HD resolution
Strong: only 10W, very economical,High performance,long time working industries, car repair shops,school,bank,anywhere computer exists.
Service:All the mini pc and accessories have been tested before delivery. functional mini pc Office work: Office, skype, yahoo, outlook and all other office requirement support and runs perfect

Design work: Photoshop, CoreIDRAW, Dreamweaver, IIIustrator, Flash, Indesign and others

Game playing: support most online games and PC games, like Warcraft, Counter-Strike (CS), support 3D games but this is in
tegrated graphic not independent cards, so don't play very high grade 3D games.

Entertainment: support blu ray 1080P video play and others
