DC 12V x86 Micro Computer Cheap Fanless 12V Linux Router Mini Pc Pfsense

Product Description Q310G4 Fanless Mini PC Main Features
• Intel Celeron 3215U Broadwell SOC Processor
• Intel HD Graphics
• 1 x HDMI, 1 x RS232
• 2 x USB 3.0, 2 x USB 2.0, 1 x SATA 3
• 1 x Mini-PCIe, 1 x mSATA
• 4 x Intel I211-AT Gigabit LAN

Model	Qotom-Q310G4
Material	Aluminum
Dimension	S08: 187*111*50mm
Power Consumption	TDP 15W
Cooling Mode	Fanless Design
Onboard CPU	Intel 5th Gen Celeron Broadwell 3215U 1.7GHz Dual Core, 2M Cache
Chipset	Intel Soc Chipset
Onboard VGA	Intel HD Graphics
Onboard LAN	4 x Intel I211-AT Gigabit LAN
Audio Solution	Realtek ALC662 HD Audio
Operating System	Support Windows 7 /Windows 8 / Windows 10 /Linux Ubuntu etc. (After receiving goods, Qotom will offering a download link for OS drivers.)
Memory	Max support 8Gb DDR3L 1600MHz SO-DIMM ram 1.35V
Storage	Max. simultaneously support 1x2.5 inch SATA HDD and 1x mSATA SSD
Kensington Lock	Support

Environmental		Power Requirement
Operating Temp	0°C~50°C	Power Adapter	12V3A
Non-Operating Temp	-20°C~80°C	DC Jack	5.5mm, 2.5mm
Humidity	10%~90%	Input AC Range	110V~240V

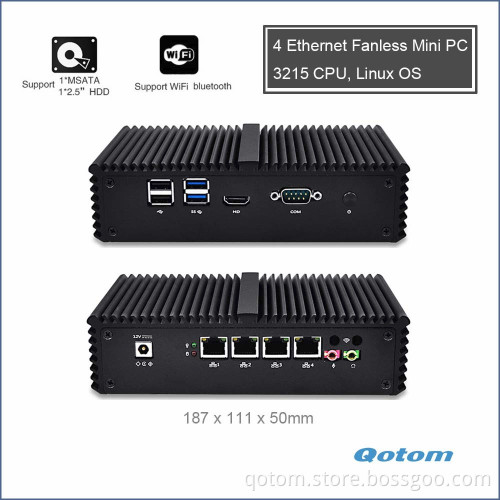

Detailed Images Mini pc Q310G4 Front I/O
1 x Power Button
1 x Power LED 2 x USB 3.0 2 x USB 2.0 1 x RS232
1 x HDMI


Mini pc Q310G4 Rear I/O
1 x DC Jack 1 x Power LED 1 x HDD LED
4 x RJ45 Port for Gigabit LAN 1 (Mic-in, Line-out)


Expansion 1 x Full size Mini-PCIe for mSATA SSD
1 x Mini-PCIe for Option
1 x SIM Card Slot
1 x Automatically Boot Jumper
1 x 2.0 Pitch Header (GPIO)
1 x DC-in Header (Optional)
Packing & Delivery Packing:
We use good quality paper packing box and EPE to protect the product. It's a black color box without company logo.
(OEM packing can be acceptable, MOQ500pcs/times)
Packing List: 1 x Device
1 x 12V3A Power adapter with cable
1 x VESA mouting bracket
1 x Screws


Shipment & Payment
We arrange the shipment timely within 2-3 business days after payment completed. DHL Express normally takes about 3 to 5 days to destination, door to door.   Fedex, EMS, HongKong air Post, UPS are options.
We accept the payment way of Paypal, Western Union, T/T, or Aliexpress, eBAY, Amazon etc.
Our Service 1.OEM/ODM services will be providing from Qotom .
2.No need big MOQ, welcome to order 1 sample for test at first.
3.Your will getting a High-quality product & competitive price & best service from now on.
4.We assure you that all mini pc/ accessories have been PASSED the QC TEST before shipment.
5. Warranty 1 year. After expired warranty and sent back to our company, we will still try our best to repair for you without repair cost (except change new accessories).
6. Please contact us if your products out of work, we will try our best to figure out workable solutions with our professional team.
Our Company Qotom Technology Limited is a professional Thin Client & Mini PC & Nano ITX Motherboard manufacturer, establised in 2011 which is located in Shenzhen, near to HongKong. We focus on Mini Computer/motherboard designing and producing, there is a professional technical team offering after-sales support services and customized services, so OEM can be acceptable.

Our sales department develop the whole world market, about 70% of our products are exported and get positive feedback. Main products cover thin client, mini PC, HTPC, embedded PC, vehicle computer, industrial computer, fanless system, aluminum case, nano ITX motherboard.

Our business aim is to let more and more people come to know and use thin client/mini pc. We provided customers with economical and reliable solutions that are cheaper and smaller than traditonal desktops. FAQ Q1. Can I get a sample for testing? Re: Yes of course you can. After paid for sample cost and shipping, we will delivery it according to your request.
Q2. What's your MOQ? Re: MOQ 1 set.
Q3. Do you ever export to some country? Re: Yes, all over the world, such as America, UK, German, Finland, South Africa, India, Canada, Austrilia, South Korea etc.
Q4. This is my first time buying computers, could you provide some advice? Re: Yes, very pleasure have chance to service you. Different use have different options, pls contact us to tell more reqirements, so that can get best recommedation.
Q5. Can you provide OEM/ODM service? How much do I need to pay for your OEM service? Re: Yes we can. The charges for OEM service depends on the different level of customize. Pls contact us to get more information, thanks.
Q6. Can you print my logo on the mini computer and customize logo on boot-screen? Re: Yes, we can silkscreen logo on computer case, and customize logo on boot-sreen, no need extra charge, MOQ 10 sets.
Q7. How can I choose the specification? Re: The price of this link for barebone system, the capacity of ram and hard disk can be changed according to your requests, just only price difference, pls contact us to get more information, thanks.
Q8. Can your device work 24h*7 days? And what about the temperature range it can operate in? Re: Yes it can be working in 24h*7 days, working temperature range 0°C~50°C.
Q9. Can this computer support 2 monitors? Re: Yes, it support 2 monitors display via 2 HDMI.
Q10. What is the lead time of your products? Re: Sample order within 1~3 business days .    Bulk order within 3~15 business days ( depends on order qty)
Q11. What payment method do you accept? Re: We accept Paypal, Western Union, T/T, or Aliexpress, eBAY, Amazon etc.
Q12. How will you delivery the device to me? Re: Via DHL /Fedex / UPS / EMS by default, or send it to you according to your request.
Q13.Could I know your FOB Port of loading? Re: FOB Shenzhen
Q14.What’s the warranty? Re: 1 year warranty. After expired warranty and sent back to our company, we will still try our best to repair for you without repair cost (except change new accessories).
Q15.What are the OS do your computers support? Re: Support Windows 7, Windows 8, Windows 10, Linux ubuntu , pfsense etc.
Q16. Is it support Windows XP? Re: Sorry, it cannot support Windows XP.
Q17. May I have a fanless i5 4200u mini pc with same computer case but incl. 4 LAN? Re: Yes, model Q350G4 can be meet your requests.
Q18. Which models can run pfsense as a firewall? Re: 2 or more LAN mini pc can run pfsense as a firewall, such as model Q190S/ Q190G4U / Q210S / Q310G4 / Q350G4 / Q450S etc.
