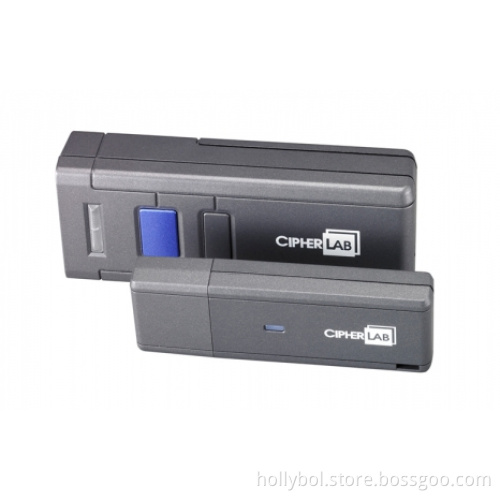

Cipherlab 1660 Bluetooth barcode Scanners/Cipherlab 1660 protable barcode reader
- Delivery Time:
- 3 Days
Your message must be between 20 to 2000 characters
Contact Now1.pocket cipherlab barcode scanner
2.CipherLab's handiest solution
3.100 scans per second
| RF communication | Module | BT Class 3(2.4GHz) Version 2.0 |
Coverage(line of sight) | 10 m/33 feet | |
Standard profile | SPP, HID | |
Performance | Optical sensor | 2500 pixels |
Light source | Red LED 625 nm | |
Resolution | 3 mil | |
| Depth of field Depends on barcode resolution | 3.5 to 38 cm/ 1.4 to 15 in. | |
Scanning angle | Pitch ±70° Skew 70° | |
PCS | Minimum 30% | |
Scan rate | 1oo scans/second | |
Interfaces supported | PS232/Keyboard wedge/ USB HID | |
Barcodes supported | Codabar, Code 39, Code 93, Code 128, Gs1 Databar (RSS) Industrial 2 of 5, Italian and French Pharmacodes, Interleave 2 of 5, Matrix 2 of 5, MSI, Plessey, Telepen, UPC/EAN/GS1-128, and more | |
Programmable features | Data editing, symbology configuration | |
Language support | US and UK English, French, Italian, Belgian, Norwegian, Swedish, Spanish, Portuguese, German | |
Physical | Weight including battery | 50g /1.76 oz. |
Color | Dark grey | |
Size L*W*H | 9.5*3.5*2cm/3.7*1.4*0.8 in. | |
Switch | Push-button switch, plus[ Delete] key | |
Memory | 256K | |
Electrical | Working hours | 18 hours based on 1.5s scan / 3.5s standby, BT connected |
Power supply | Two AAA batteries | |
| Power consumption Standby/ Scanning/ Maximum | 15A /15mA/ 250mA | |
User environment | Temperature | Operation:0to 50°C/ 32°to 122°F 5 Storage: 20°to 60°C/ —4°to 140°F |
Humidity Non-condensing | Operating: 10% to 90% Storage: 5% to 95% | |
Impact resistance | Withstands multiple 1.2m/ 4ft. drops onto concrete | |
Electrostatic discharge | 15KV air discharge and ±8KV contact discharge | |
EMC regulation | BSMI, CE, C-Tick, FCC, MIC, NCC, RSS-210 | |
Configuration | Setup options include Windows®-based ScanMaster software( included), by direct connection or printing out barcode settings | |
Accessories | Charging cradle and charging/communication cradle | |
Warranty |
| 1year |
