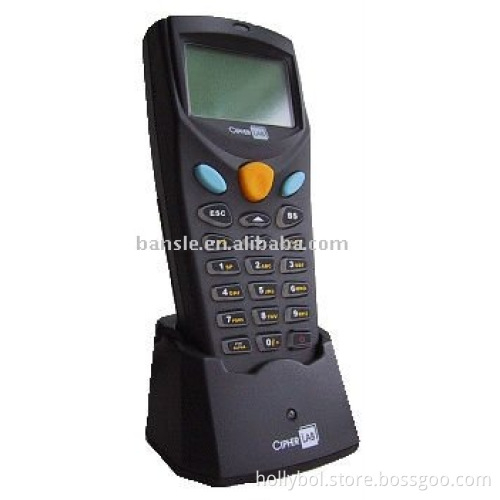

Cipher Lab CPT8000C Data Collector
Your message must be between 20 to 2000 characters
Contact NowBasic, C & Application Generator 2MB program memory + 2 MB data memory Integrated Linear Ima
Cipher Lab CPT8000C Data Collector Programmable in : Basic, C & Application Generator 2MB program memory + 2 MB data memory Integrated Linear Imaging or Laser Scanner Built-in IR/IRdA port 100x64 Graphics LCD with Back Light Over 100 working hours Ideal for Retail Applications
| Wireless Communication | Options | Batch |
Specifications | CCD | |
Coverage line of sight | Typically 30 cm / 12 in. | |
| Power
| Operation battery | 2 AAA alkaline |
Backup battery | Rechargeable lithium 3.0 V, 7.0 mAh | |
Working time:one scan per five seconds | 100 hours | |
Data retention | 30 days | |
| General Characteristics
| CPU | 16-bit CMOS, low power consumption |
Program memory | 2MB flash memory | |
Data memory | 2MB SRAM | |
Display | LCD 100 x 64 with LED backlight | |
Keypad | 21 rubber keys with LED backlight | |
Buzzer | Programmable, 1 KHz to 4 KHz | |
LED | Dual color: red and green | |
Dimensions | Size L x W x H | 122 x 56 x 23 mm 4.8 x 2.2 x 0.9 in. |
| Weight laser including battery | 123 g / 4.4 oz. | |
| Scanner
| Light source | Linear imager: 650 nm red LED / Laser: visible laser diode |
Scan rate | Linear imager/Laser: 100 scans per second | |
Scan angle | Laser: 47° | |
Reading range | Linear imager: 3 to 29 cm / 1.2 to 11.4 in. Laser: 1 to 45 cm / 0.4 to 1.5 ft. dependent on barcode resolution | |
| Environmental
| Operating temperature | -10ºC to 60ºC / 14ºF to 140ºF |
Storage temperature | -20ºC to 70ºC / -4ºF to 158ºF | |
Humidity | Operating: non-condensed 10% to 90% / Storage: 5% to 95% | |
Impact resistance | 1.2 meter / 4 ft. drops onto concrete, 5 drops per 6 sides | |
Electrostatic discharge | ± 15 kV air discharge, ± 8 kV direct discharge | |
EMC regulation | FCC,CE and C-Tick approved | |
Programming | C, Basic, and Windows-based applications generator |
|
Accessories | Charging & communication cradle (serial & USB), Modem cradle (56K), Ethernet cradle (10/100 BaseT), Battery gang charger |
|
Warranty | 1 year | |
