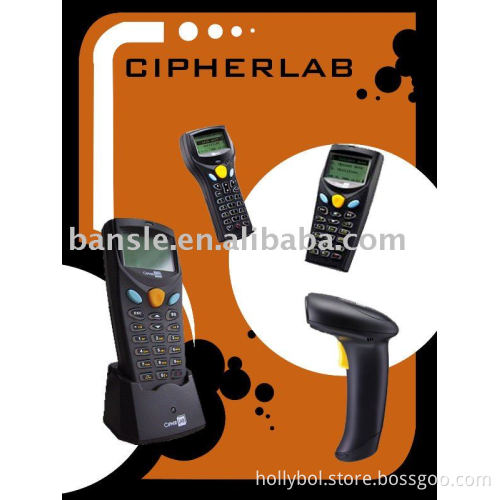

CipherLab 1500 barcode scanner
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Taiwan |
|---|
Linear imager scanner
CipherLab 1500 barcode scanner offers accuracy and efficiency with the reliability of no moving parts for low cost of ownership. Delivering a snappy 200 decodes/second, the 1500’s 2500-pixel optical scanner reads multiple symbologies in a single tool and provides auto-sense scanning. A large LED and adjustable tone signal instant scan recognition to speed workflow
Performance | Category | Linear imager scanner |
Optical sensor | 2500 pixels | |
Light source | Red LED (625 nm) | |
Resolution | 3 mil | |
| Depth of field Depends on barcode resolution | 05 to 35 cm/ 0.2 to 13.8 in. | |
Scanning angle | Pitch ±70° Skew ±70° | |
PCS | Minimum 30% | |
Decode rate | 200 scans/second | |
Ambient illumination | 100,000 lux | |
Auto-sense mode | Yes | |
Barcodes supported | Codabar, Code 128, Code38, Code 93, Gs1 Databar (RSS), Italian and French Pharmacodes, Industrial 2 of 5, Interleave 2 of 5, Matrix 2 of 5, MSI, Plessey, Telepen, UPC/EAN/GS1-128, and more | |
Programmable features | Data editing, interface selection, symbology configuration | |
Language support | US and UK English, French, Italian, Belgian, Norwegian, Swedish, Spanish, Portuguese, German | |
Physical | Weight | 145g / 5.1 oz. |
Color | Black | |
Switch | Tactile switch | |
Electrical | Voltage | +5V ±10% |
| Power consumption Standby/ Scanning/ Maximum | 30mA /170mA/ 250mA | |
User environment |
| Operation:0 to 50/ 32°to 122 Storage:20°to 60 /4°to 140 |
Humidity Non-condensing | Operating: 10% to 90% Storage: 5% to 95% | |
Impact resistance | 1.5 m/4.9ft. multiple drops onto concrete | |
Ingress protection | IP 30 | |
Electrostatic discharge | ±18kV contact ±15KVkV air | |
EMC regulation | BSMI, CE, C-Tick, FCC, MIC, VCCI | |
Configuration | Setup options include Windows®-based CipherLab ScanMaster software( included), by direct connection or printing out barcode settings | |
Accessories | USB, RS232 and keyboard wedge cables 3-way desk/wall/auto-sense stand with optional weighted base | |
Warranty | 1year | |
