Front fast service indoor p3.9 3.91mm 500x500mm die casting new design led video panel

Front fast service indoor p3.9 3.91mm 500x500mm die casting new design led video panel

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, China (Mainland)

Product Description

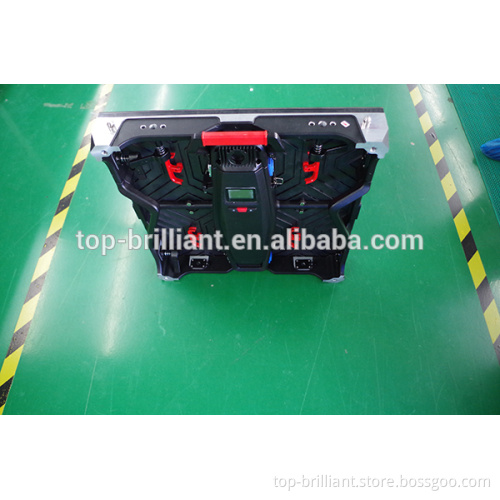

Product Description Front fast service indoor p3.9 3.91mm 500x500mm die casting new design led video panel 1. Lightweight. Convenient in transporting and installing & saving labor cost, suitable for flow shows.www.top-2.brilliant.com
2. Front fast service,with LCD monitor to show temp and wroking time is how long.
3. Jointed correctly, being installed & dismounted by one person without tool.
4. Humanized operating interface with breakdown indicator lights, easy to maintain.
5. High debugging brightness and no damage to gray scale, achieving the debugging technology for nice image. Technicail Specification:

Items	Parameter
Pixel Pitch	P3.9mm	P4.8mm	P5.2mm
Module Resolution(W*H)	64*64	52*52	48*48
Pixel Configuration	1R1G1B	1R1G1B	1R1G1B
Optimal Viewing Distance	4-14m	5-15m	5-15m
Pixel Density(Pixel /m2)	65536	43264	36864
Driving Method	1/16 Scan	1/13 Scan	1/16 Scan
View angle / °	140H,120V	140H,120V	140H,120V
Module size(mm)	250x250	250x250	250x250
Cabinet size(mm)	500x500	500x500	500x500
Luminance of white balance	≥500 nits	≥500 nits	≥500 nits
LED Encapsulation	SMD2121	SMD2121/2727	SMD3528/2121
Weight of cabinet/kg	9	9	9
Working Voltage	AC 220V/110V±10%
White balance Brightness Driving Method	>=1500 CD/m^2
Operating Temperature	below 30 to above 50
Grey scale/color	displaying colors≥16.7M(synchronized)
Brightness adjustment	256 levels of each color(manually),100 levels of each color(automatically)
Input signal	RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc
Control system	linsn(sending card,receiving cards and Hubs)
Average of non-failure life	>50,00h
Life span	>100,000h
Defect dot rate	<0.0001
