Indoor & outdoor Multi-Language led display Board led display screes

Specifications: Indoor & outdoor Multi-Language led display Board led display screes 1.Permanent/Fixed installation
2.Vivid color
3.CE, RoHS, FCC 4.High brightness
5.Wide viewing angle, definition
6.Low voltage and power consumption
7.High stability   Features:     Product Description 1. Using DIP technology make the screen have a excellent effect when it plays . 2. The cabinet become more firmed , and corrosion-resistant . 3 .synchronization through the screen body color and brightness adjustment, screen body presents a delicate and vivid color performance; 4. high contrast, high refresh rate, making the LE display render the image without any delay, smear phenomenon; 5. compatible with a variety of signal source input, such as AV, S-Video, DVI, VGA, YPbPr, HDMI, SDI, DP, etc.; 6. Flightcase professional packaging protection, of the screen body control equipment has played a good protection; 7. Unique waterproof case designed to meet the IP65 protection standard, and can be directly installed in outdoor use. Applications: Mainly for outdoor advertising,information publishing,journalism and communication  in some places,such as cultural square,traffic arteries,stations,terminals,information  centers,entertainment venues,shopping centers,commercial city and etc.   Indoor & outdoor Multi-Language led display Board led display screes Technical Parameters:  Indoor Multi-Language led display Board led display screes spec:

Pitch	3mm		4mm		5mm		6mm		7.62mm		10mm
Density(dot/sqm)	111111		62500		40000		27777		17222		10000
LED Encapsulation	SMD3in1		SMD3in1		SMD3in1		SMD3in1		SMD3in1		SMD3in1
Module Size(mm)	192*96		128*128		160*160		192*192		244*244		320*160
Module Resolution(pixel)	64*32		32*32		32*32		32*32		32*32		32*16
Cabinet Size(mm)	480*480		640*640		800*800		768*768		732*732		960*960
Cabinet Resolution(pixel)	160*160		160*160		160*160		128*128		96*96		96*96
Cabinet Weight(kg)	12		21		32		29.5		27		46
Max Power Consumption(w/sqm)	750		600		500		650		700		500
Ave Power Consumption(w/sqm)	350		250		200		320		350		220
Brightness(cd/sqm)	1500		1200		1500		2000		2000		1500
Gray Scan	>4096		>4096		>4096		>4096		>4096		>4096
Refreshrate(Hz)	600-4800		600-4800		600-4800		600-4800		600-4800		600-4800
Best Viewing Distance(m)	3-100		4-100		5-120		6-150		8-150		10-150
Drive Mode	Constant Current Drive
Viewing Angle	Horizontal:140° Vertical:140°
Protection Level	IP43
Working Temperature	-20°C-50°C
Working Humidity	10%-60%
Working Voltage	AC 110V~220V±10%
Refresh Frame Frequency(Hz)	60
Lifespan	100000hours
Malfunction Dot Rate	<0.0002
Control system	LINSN/ZDEC/DBSTAR/NOVA/COLORLIGHT

    outdoor Multi-Language led display Board led display screes spec:

Pitch	6mm	8mm	8mm	10mm	10mm	12mm	16mm	20mm	25mm
Density(dot/sqm)	27777	62500	62500	10000	10000	69404	3906	2500	2500
LED Encapsulation	SMD3in1	SMD3in1	DIP346	SMD3in1	DIP346	DIP346	DIP/SMD	DIP346	DIP346
Module Size(mm)	192*192	256*128	256*128	160*160/320	160*160/320	192*192	256*256	320*160	200*200
Module Resolution(pixel)	32*32	32*16	32*16	16*16/32	16*16/32	16*16	16*16	16*8	8*8
Cabinet Size(mm)	768*768	1024*768	1024*768	960*960	960*960	960*960	1024*1024	960*960	1000*1000
Cabinet Resolution(pixel)	96*96	128*96	128*96	96*96	96*96	80*80	64*64	48*48	40*40
Cabinet Weight(kg)	32.5	43	45	50	51	51	58	51	55
Max Power Consumption(w/sqm)	800	900	900	900	900	700	800	600	500
Ave Power Consumption(w/sqm)	400	450	450	450	450	320	400	300	250
Brightness(cd/sqm)	6500	5500	6500	5000	7500	6000	8000	6500	6000
Gray Scan	>4096	>4096	>4096	>4096	>4096	>4096	>4096	>4096	>4096
Refreshrate(Hz)	600-2400	600-2400	600-2400	600-2400	600-2400	600-2400	600-2400	600-2400	600-2400
Best Viewing Distance(m)	6-150	8-150	8-150	10-150	10-150	12-150	16-150	20-200	25-200
Drive Mode	Constant Current Drive
Viewing Angle	SMD: Horizontal:140° Vertical:140°     DIP: Horizontal:120° Vertical:50°
Protection Level	IP65
Working Temperature	-20°C-50°C
Working Humidity	10%-90%
Working Voltage	AC 110V~220V±10%
Refresh Frame Frequency(Hz)	60
Lifespan	100000hours
Malfunction Dot Rate	<0.0002
Control system	LINSN/ZDEC/DBSTAR/NOVA/COLORLIGHT

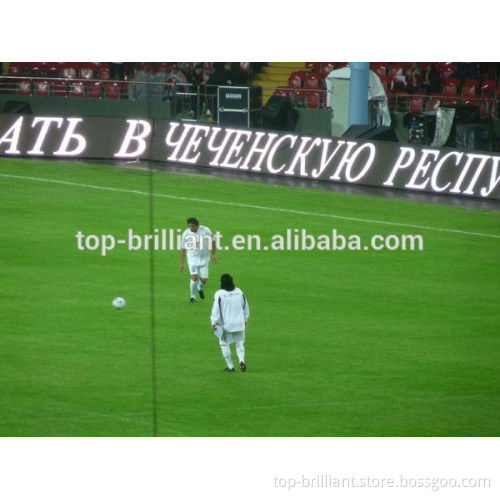

   Product pictures:                Packaging & Shipping  Package: wooden case or flight case. Shipping: A. By air, From factory to the most closed air port of destination.   B. By world wide express, always use DHL,UPS, TNT, Fedex, EMS, door to door service   C. By ship, the slowest shipping, from factory to the most closed sea port of destination.           Our Services  Quotation services 1. Offer the best solution for customers as required. 2.Offer the best price for with a specification 3.2-5 years warranty time.     Company Information   Shenzhen Top Brilliant Electronics Co. , Limited promote the environment protection and energy saving with LED technology,we adopt the LED characterized with energysaving and envronmental friendliness as basic raw material. Now TOPLED offer :Rental LED Screen , Fixed Installation LED ScreenTransparent LED Curtain Screen,Dance Floor/Stair LED Screen,Flexible LED Screen,Front access LED Screen.and Perimeter LED Screen. TOPLED consider product quality as company life, we take serial reliable tests in each process from the initial production until finished product. The tests cover all important performances, including flatness, power consumption, brightness, color, shock resistance;IP rating and so on, TOPLED adopt the most strict quality control system to guarantee products with perfect quality.     FAQ   1. What is LED?
LED is sanded for Light Emitting Diode, a kind of semiconductor which is used to give and receive the electronic signal into infrared rays or light, using the characteristics of compound semiconductor. This is used for household appliances, remote controller, electric bulletin board, various kinds of automation appliances.
2. What are Pixel Pitch, Pixel Density, LED QTY, and Pixel Configuration?
Pixel Pitch is the distance between neighboring pixels.
Pixel Density is the quantity of pixels per square meter.
LED QTY is the quantity of LED lamps per square.
Pixel Configuration is the description of the consistence of a pixel, for instance, we use 1 red lamp, 1 green lamp, and 1 blue lamp to compose a pixel, the pixel configuration is 1R1G1B.
3. What are LED Type, Module size and Module resolution?
LED Type is the description of LED lamp, for instance, the brand, the shape in physical, the size of the lamp, etc.
Module size is the measurement of a module.
Module resolution is the number of pixels per module.
4. What is Drive Method, driving IC and Power supply
Drive Method: always we use static, 1/4 scan, 1/8 scan, 1/16 scan, the latter one contributes to less brightness than the former. We always use the static outdoor, and use the different kinds of scan indoor.
Driving IC is the generic term for several kinds of IC, that are used to control the LED lamps, and as a bridge between the control system and lamps.
Power supply: a kind of device that used as a transfer from 220V AC into 5V DC. It always seems like a box in the cabinet.
5. What is viewing angle?
Viewing angle is the maximum angle at which a display can be viewed with acceptable visual performance. It includes horizontal viewing angle and vertical viewing angle.
