High quality with new style full color indoor P1.9 hd led panel

Specifications: High quality with new style full color indoor P1.9 hd led panel
1,Die Casting Aluminum,very much lightweight.
2,Easily assembled and transported.
3,High Resolution LED 4,Use MBI5153 High refresh IC 5,one panel weight is 4.8kg Features:     Product Description  1. SMD3-in-1 technology are used for indoor LED display. 2. Wide view angle: 140 in horizonal and 140 in vertical 3. Special design and advanced SMT technology improves the heat dissipation 4. With high refresh rate controller, guarantee that no scan line when taking photos. 5. Slim and lightweight design. 6. Easy for assembling and connecting with fast lock and the connector added. 7. High color uniformity and clear image can bring you a vivid audio visual effect. 8. Items: P1.66,P1.92,P2,P2.5 etc.     High quality with new style full color indoor P1.9 hd led panel 1. Lightweight. Convenient in transporting and installing & saving labor cost, suitable for flow shows.
2. Nice appearance and simple structures.
3. Jointed correctly, being installed & dismounted by one person without tool.
4. Humanized operating interface with breakdown indicator lights, easy to maintain.
5. High debugging brightness and no damage to gray scale, achieving the debugging technology for nice image.   technical parameters:

Items	Parameter
Pixel Pitch	PH2.5mm	PH1.9mm	PH1.6mm
Module Resolution(W*H)	160*120	208*156	256*192
Pixel Configuration	1R1G1B(in 3 n 1)
LED Encapsulation	SMD Black 1514
Pixel Density	160000Pixel/m2	270400Pixelm2	360000Pixel/m2
Driving Method	1/30Scan	1/26Scan	1/30Scan
Refresh Frequency	≥2880Hz(Support High refresh rate,depends on the system configuration)
Driver IC	SUM2032/MBI 5153
Grey Scale	≥16Bit(depending on the system and Configuration)
Cabinet Size	400mm*300mm
White balance Brightness	800cd/m2	800cd/m2	800cd/m2
Color Temperature	5000K,6500K,9300K,12000K(adjustable)
Viewing Angle	Horizontal 150°Vetical 150°
Optimal Viewing Distance	≥3m	≥2m	≥2m
Working Voltage	AC 220v/110V±10%
Module voltage	DC4.2V
Max Power Consumption	90W/pcs	80W/pcs	80W/pcs
Avg.Power Consumption)	90W/pcs	40W/pcs	40W/pcs
Lifetime	50000hours
Operating Temperature	-10℃~50℃
Net weight	4.8Kg/pcs	4.8Kg/pcs	4.8Kg/pcs

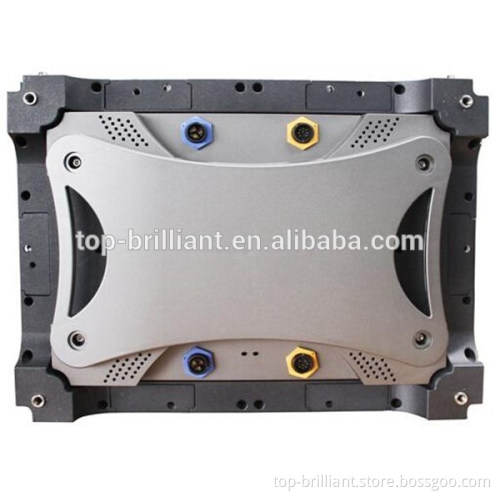

 Product pictures:       Packaging & Shipping   Package: wooden case or flight case or carton box package.   Shipping ways: A. By air, From factory to the most closed air port of destination. B. By world wide express, always use DHL,UPS, TNT, Fedex, EMS, door to door service C. By ship, the slowest shipping, from factory to the most closed sea port of destination.     Our Services   Quotation services 1. Offer the best solution for customers as required. 2.Offer the best price for with a specification 3,Warrty time is 2 to 5 years.       Company Information   Shenzhen Top Brilliant Electronics Co. , Limited promote the environment protection and energy saving with LED technology,we adopt the LED characterized with energysaving and envronmental friendliness as basic raw material.   Now TOPLED offer :Rental LED Screen , Fixed Installation LED ScreenTransparent LED Curtain Screen,Dance Floor/Stair LED Screen,Flexible LED Screen,Front access LED Screen.and Perimeter LED Screen.   TOPLED consider product quality as company life, we take serial reliable tests in each process from the initial production until finished product. The tests cover all important performances, including flatness, power consumption, brightness, color, shock resistance;IP rating and so on, TOPLED adopt the most strict quality control system to guarantee products with perfect quality.             FAQ   . What is LED?
LED is sanded for Light Emitting Diode, a kind of semiconductor which is used to give and receive the electronic signal into infrared rays or light, using the characteristics of compound semiconductor. This is used for household appliances, remote controller, electric bulletin board, various kinds of automation appliances.
2. What are Pixel Pitch, Pixel Density, LED QTY, and Pixel Configuration?
Pixel Pitch is the distance between neighboring pixels.
Pixel Density is the quantity of pixels per square meter.
LED QTY is the quantity of LED lamps per square.
Pixel Configuration is the description of the consistence of a pixel, for instance, we use 1 red lamp, 1 green lamp, and 1 blue lamp to compose a pixel, the pixel configuration is 1R1G1B.
3. What are LED Type, Module size and Module resolution?
LED Type is the description of LED lamp, for instance, the brand, the shape in physical, the size of the lamp, etc.
Module size is the measurement of a module.
Module resolution is the number of pixels per module.
4. What is Drive Method, driving IC and Power supply
Drive Method: always we use static, 1/4 scan, 1/8 scan, 1/16 scan, the latter one contributes to less brightness than the former. We always use the static outdoor, and use the different kinds of scan indoor.
Driving IC is the generic term for several kinds of IC, that are used to control the LED lamps, and as a bridge between the control system and lamps.
Power supply: a kind of device that used as a transfer from 220V AC into 5V DC. It always seems like a box in the cabinet.
5. What is viewing angle?
Viewing angle is the maximum angle at which a display can be viewed with acceptable visual performance. It includes horizontal viewing angle and vertical viewing angle.
Warm Notice
1. The unit price depends on the quantity, we can offer you at a competitive price.
2. Your inquiry related to our products or prices will be replied in 24hrs.
3. Well-trained and experienced staffs to answer all your enquires in fluent English.
4. Distributorship are offered for your unique design and some our current models.
5. Protection of your sales area, ideas of design and all your private information.                        Pitch 6mm indoor smd3528 32x32dots led display
