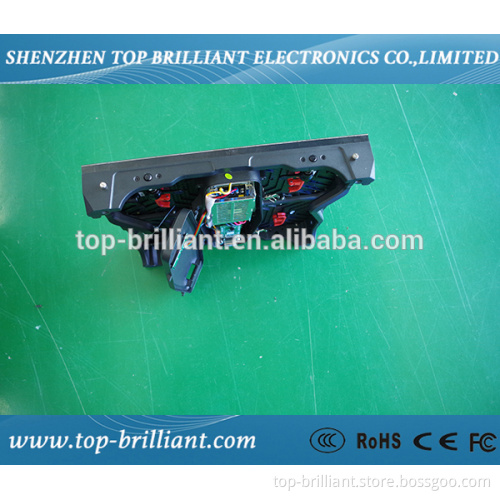

Modular design fast front maintance indoor p2.5 full color led display

Specifications: Modular design fast front maintance indoor p2.5 full color led display 1.Permanent/Fixed or rental mobile installation
2.Vivid color
3.CE, RoHS, FCC 4.High brightness
5.Wide viewing angle, definition
6.Low voltage and power consumption
7.High stability   Product Description 1. affordable price
2. standard size:480x480mm
3. easy to install
4. amazing performance   display more info   1)With good lightening accordance and no mosaic.   2)Can play different formats of image files, flash, video signal from TV, video and other equipments.   3)Different video frequency can be changed freely at the same time, and the image can be enlarged and shrinked.   4)High brightness, and can be adjustable, meets the needs of customer's requirements.   5)Uses real pixels rather than virtual pixcels, better viewing effect     Modular design fast front maintance indoor p2.5 full color led display   Technical Parameters:

module parameters
Model	P2.5
Pixel pitch	2.5 mm
Pixel configuration	1R1G1B
LED lamp	SMD 3 in 1
Pixel matrix per panel	96*96 pixels
Module resolution rate	96*96=9216dots
Module dimensions (W*H*D)	240*240mm
Weight	0.25kg±0.05kg
Package material	flight case
Construction	combined driver board
Input votage	4.8-5.5V
MAX. input current	6.8A±0.1A
Driving mode	constant current driving
Module power	≤34 W
cabinet parameters
Brightness	≥1000 cd/m2
Cabinet dimensions (W×H×D)	480*480*75 mm
Resolution ratio	192*192=36864dots
Weight	6.8±0.05 kg
Pixel density	160000dots/m2
Viewing angle (H/V)	120±10 deg
Best viewing distance	≥2.5m
MAX. power	≤400W/m2
AVE. power	200W/m2
control parameters
Gray scale per color	12-16bits for red,green,blue
Colors	16777216
Life time	≥100,000 hours
MTBF	≥10,000 hours
Refresh rate	≥ 1000Hz
Input voltage (AC)	110V ~ 240V
Operating temperature	-20°C ~+ 50°C
Operating humidity	10% ~ 90%
Source compatibility (with video processor)	DVI/VGA,Vedio(mutiple modes),RGBHV,composite Vedio Single,S-VIDEO,YpbPr(HDTV)

            p2.5 led video wall       Packaging & Shipping   Package: wooden case/flight case/carton box/carton box with wooden frame. Shipping: A. By air, From factory to the most closed air port of destination.   B. By world wide express, always use DHL,UPS, TNT, Fedex, EMS, door to door service   C. By ship, the slowest shipping, from factory to the most closed sea port of destination.     Our Services   1)Reply your inquiry in 24 working hours.
2)Experienced staffs answer all your query in fluent English,Spanish,French,German etc
3)Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.
4)Special discount and protection of sales area provided to our distributor.
5)Warranty: Two-Five Years, a little investment for longer warranty time.       Company Information   Shenzhen Top Brilliant Electronics Co. , Limited promote the environment protection and energy saving with LED technology,we adopt the LED characterized with energysaving and envronmental friendliness as basic raw material. Now TOPLED offer :Rental LED Screen , Fixed Installation LED ScreenTransparent LED Curtain Screen,Dance Floor/Stair LED Screen,Flexible LED Screen,Front access LED Screen.and Perimeter LED Screen.   TOPLED consider product quality as company life, we take serial reliable tests in each process from the initial production until finished product. The tests cover all important performances, including flatness, power consumption, brightness, color, shock resistance;IP rating and so on, TOPLED adopt the most strict quality control system to guarantee products with perfect quality       FAQ    1. What is LED?
LED is sanded for Light Emitting Diode, a kind of semiconductor which is used to give and receive the electronic signal into infrared rays or light, using the characteristics of compound semiconductor. This is used for household appliances, remote controller, electric bulletin board, various kinds of automation appliances.
2. What are Pixel Pitch, Pixel Density, LED QTY, and Pixel Configuration?
Pixel Pitch is the distance between neighboring pixels.
Pixel Density is the quantity of pixels per square meter.
LED QTY is the quantity of LED lamps per square.
Pixel Configuration is the description of the consistence of a pixel, for instance, we use 1 red lamp, 1 green lamp, and 1 blue lamp to compose a pixel, the pixel configuration is 1R1G1B.
3. What are LED Type, Module size and Module resolution?
LED Type is the description of LED lamp, for instance, the brand, the shape in physical, the size of the lamp, etc.
Module size is the measurement of a module.
Module resolution is the number of pixels per module.
4. What is Drive Method, driving IC and Power supply
Drive Method: always we use static, 1/4 scan, 1/8 scan, 1/16 scan, the latter one contributes to less brightness than the former. We always use the static outdoor, and use the different kinds of scan indoor.
Driving IC is the generic term for several kinds of IC, that are used to control the LED lamps, and as a bridge between the control system and lamps.
Power supply: a kind of device that used as a transfer from 220V AC into 5V DC. It always seems like a box in the cabinet.
5. What is viewing angle?
Viewing angle is the maximum angle at which a display can be viewed with acceptable visual performance. It includes horizontal viewing angle and vertical viewing angle.
