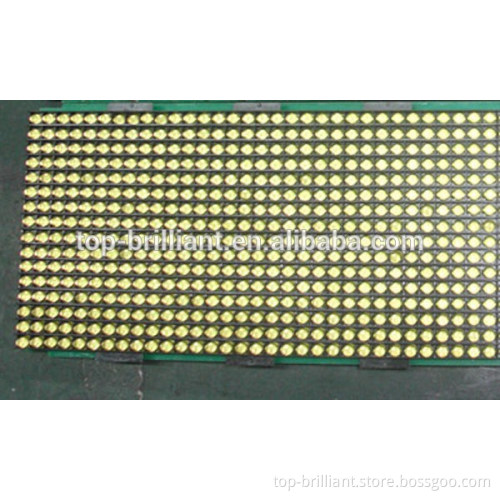

P6,P7.62 semi-outdoor/indoor amber/yellow color led module 244x122mm for bus led display sign

  Product Description 1. Hight Brightness 2000nit
2. Resolution 32 x 16 pixels
3. Semi-outdoor
4. Input voltage 5V
5. CE ROHS UL ISO

Pixel pitch	7.62mm	LED encapsulation	DIP546
Module resolution	32×16 dots	View angle	110°/60°
Module size	244×122 mm	Working environment temp	Temp: -20°C to +60°C Humidity: 35%~85%
Pixel density	17,222 dots/m²	Working voltage	110 V±15% or 230 V±15%
Pixel configuration	1R/1G/1B/1Y(A)/1W	Driving method	1/8 scan, constant current
Optimun Viewing distance	>6 m	3 COLORS	1R1G
Max power consumption	800 W/m²	Display function	Graphics,TEXT
Brightness	>2000 CD/m²	Refresh rates	> 800Hz
Life span	>100,000 hours	Blind spot rate	< 0.00001

  Also have DIP module size: P7.62  488x244m,488x122mm, P6 192x96mm 384x96mm     Packaging & Shipping  Carton box,carton box with wooden support,wooden case,flight case       Our Services   1)Reply your inquiry in 24 working hours.
2)Experienced staffs answer all your query in fluent English,Spanish,French,German etc
3)Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.
4)Special discount and protection of sales area provided to our distributor.
5)Warranty: Two-Five Years, a little investment for longer warranty time.   Company Information   Shenzhen Top Brilliant Electronics Co. , Limited promote the environment protection and energy saving with LED technology,we adopt the LED characterized with energysaving and envronmental friendliness as basic raw material. Now TOPLED offer :Rental LED Screen , Fixed Installation LED ScreenTransparent LED Curtain Screen,Dance Floor/Stair LED Screen,Flexible LED Screen,Front access LED Screen.and Perimeter LED Screen.   TOPLED consider product quality as company life, we take serial reliable tests in each process from the initial production until finished product. The tests cover all important performances, including flatness, power consumption, brightness, color, shock resistance;IP rating and so on, TOPLED adopt the most strict quality control system to guarantee products with perfect quality   FAQ     1. What is LED?
LED is sanded for Light Emitting Diode, a kind of semiconductor which is used to give and receive the electronic signal into infrared rays or light, using the characteristics of compound semiconductor. This is used for household appliances, remote controller, electric bulletin board, various kinds of automation appliances.
2. What are Pixel Pitch, Pixel Density, LED QTY, and Pixel Configuration?
Pixel Pitch is the distance between neighboring pixels.
Pixel Density is the quantity of pixels per square meter.
LED QTY is the quantity of LED lamps per square.
Pixel Configuration is the description of the consistence of a pixel, for instance, we use 1 red lamp, 1 green lamp, and 1 blue lamp to compose a pixel, the pixel configuration is 1R1G1B.
3. What are LED Type, Module size and Module resolution?
LED Type is the description of LED lamp, for instance, the brand, the shape in physical, the size of the lamp, etc.
Module size is the measurement of a module.
Module resolution is the number of pixels per module.
4. What is Drive Method, driving IC and Power supply
Drive Method: always we use static, 1/4 scan, 1/8 scan, 1/16 scan, the latter one contributes to less brightness than the former. We always use the static outdoor, and use the different kinds of scan indoor.
Driving IC is the generic term for several kinds of IC, that are used to control the LED lamps, and as a bridge between the control system and lamps.
Power supply: a kind of device that used as a transfer from 220V AC into 5V DC. It always seems like a box in the cabinet.
5. What is viewing angle?
Viewing angle is the maximum angle at which a display can be viewed with acceptable visual performance. It includes horizontal viewing angle and vertical viewing angle.             Led display screen photos Factory photos
