foldable led screen

Specifications: High Quality Super Bright Waterproof IP65 Outdoor LED display P8 Outdoor Led Display

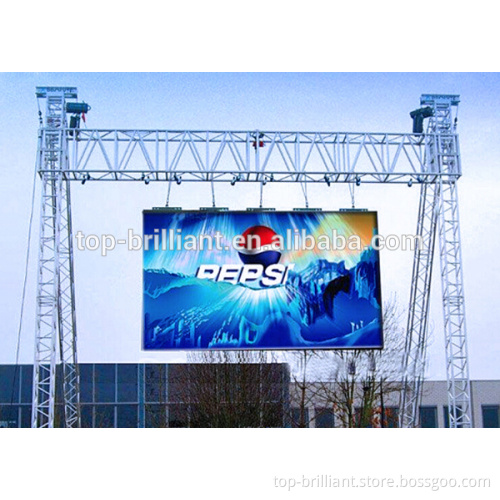

1.stage rental hanging installation for concert&events
2.Vivid color
3.SMD black led lamp
4.CE, RoHS, FCC Features:     Product Description  1. SMD3-in-1 technology are used for indoor LED display. 2. Wide view angle: 140 in horizonal and 140 in vertical 3. Special design and advanced SMT technology improves the heat dissipation 4. With high refresh rate controller, guarantee that no scan line when taking photos. 5. Slim and lightweight design. 6. Easy for assembling and connecting with fast lock and the connector added. 7. High color uniformity and clear image can bring you a vivid audio visual effect. 8. Items: P3,P3.75,P4,P5,P6,P8 etc.     Foldable led screen   spec:

Items	P5 smd outdoor
Pixel pitch	5mm
Pixel density(dots/sqm)	40000
LED encapsulation	SMD2727
Driving method	1/8scan
Module size(mm)	160mmx160mm
Resolution of module	32*32
Cabinet size(mm)	6400*640
Max. consumption(w/sqm)	800
Ave.consumption(w/sqm)	450
Brightness	6500nits
Refresh rate	>600HZ
Color temperature	6500K
View angle(H/V)	160°/140°
Grey scale	16bit
Brightness adjustment	256 grade/ Manually/ Automatically
Working/ storage tempereture	-20℃~50℃/ -30℃~60℃
Working/ storage humidity	10%~90% RH
Working voltage	AC220/110V 50Hz
Protect degree	Front:IP65, Rear:IP54
MTBF	>5000h
Life span	100000h
Input Signal	AV, S-VIDEO, VGA, DVI, HDMI, SDI, DP
Operation system	Windows 7/XP
Control distance	cat-5 data cable:<100m, optical fiber<15km



Pitch	6mm	6.25mm	7.2mm	8mm	10mm	10mm	13.3mm	16mm
Density(dot/sqm)	27777	25600	19290	62500	10000	10000	5645	3906
LED Encapsulation	SMD3in1	SMD3in1	SMD3in1	SMD3in1	SMD3in1	DIP346	DIP346	DIP346
Module Size(mm)	288*288	250*250	288*288	320*320	320*320	320*320	320*320	320*320
Module Resolution(pixel)	48*48	40*40	40*40	40*40	32*32	32*32	24*24	20*20
Cabinet Size(mm)	576*576	500*500/1000	576*576	640*640	640*640	640*640	640*640	640*640
Cabinet Resolution(pixel)	96*96	80*80	80*80	80*80	64*64	64*64	48*48	40*40
Cabinet Weight(kg)	12	9	12	12.5	12.5	17	17	17
Max Power Consumption(w/sqm)	800	800	850	900	900	900	850	800
Ave Power Consumption(w/sqm)	400	400	420	450	450	450	420	204000
Brightness(cd/sqm)	5500	5500	5500	5500	5000	7500	7500	8000
Gray Scan	>4096	>4096	>4096	>4096	>4096	>4096	>4096	>4096
Refreshrate(Hz)	600-2400	600-2400	600-2400	600-2400	600-2400	600-2400	600-2400	600-2400
Best Viewing Distance(m)	6-150	6-150	7-150	8-150	10-150	10-150	14-150	16-150
Drive Mode	Constant Current Drive
Viewing Angle	SMD: Horizontal:140° Vertical:140°     DIP: Horizontal:120° Vertical:50°
Protection Level	IP65
Working Temperature	-20°C-50°C
Working Humidity	10%-90%
Working Voltage	AC 110V~220V±10%
Refresh Frame Frequency(Hz)	60
Lifespan	100000hours
Malfunction Dot Rate	<0.0002
Control system	LINSN/ZDEC/DBSTAR/NOVA/COLORLIGHT

            Packaging & Shipping   Package: wooden case or flight case or carton box package.   Shipping ways: A. By air, From factory to the most closed air port of destination. B. By world wide express, always use DHL,UPS, TNT, Fedex, EMS, door to door service C. By ship, the slowest shipping, from factory to the most closed sea port of destination.     Our Services   Quotation services 1. Offer the best solution for customers as required. 2.Offer the best price for with a specification 3,Warrty time is 2 to 5 years.     Company Information   Shenzhen Top Brilliant Electronics Co. , Limited promote the environment protection and energy saving with LED technology,we adopt the LED characterized with energysaving and envronmental friendliness as basic raw material. Now TOPLED offer :Rental LED Screen , Fixed Installation LED ScreenTransparent LED Curtain Screen,Dance Floor/Stair LED Screen,Flexible LED Screen,Front access LED Screen.and Perimeter LED Screen. TOPLED consider product quality as company life, we take serial reliable tests in each process from the initial production until finished product. The tests cover all important performances, including flatness, power consumption, brightness, color, shock resistance;IP rating and so on, TOPLED adopt the most strict quality control system to guarantee products with perfect quality.             FAQ   . What is LED?
LED is sanded for Light Emitting Diode, a kind of semiconductor which is used to give and receive the electronic signal into infrared rays or light, using the characteristics of compound semiconductor. This is used for household appliances, remote controller, electric bulletin board, various kinds of automation appliances.
2. What are Pixel Pitch, Pixel Density, LED QTY, and Pixel Configuration?
Pixel Pitch is the distance between neighboring pixels.
Pixel Density is the quantity of pixels per square meter.
LED QTY is the quantity of LED lamps per square.
Pixel Configuration is the description of the consistence of a pixel, for instance, we use 1 red lamp, 1 green lamp, and 1 blue lamp to compose a pixel, the pixel configuration is 1R1G1B.
3. What are LED Type, Module size and Module resolution?
LED Type is the description of LED lamp, for instance, the brand, the shape in physical, the size of the lamp, etc.
Module size is the measurement of a module.
Module resolution is the number of pixels per module.
4. What is Drive Method, driving IC and Power supply
Drive Method: always we use static, 1/4 scan, 1/8 scan, 1/16 scan, the latter one contributes to less brightness than the former. We always use the static outdoor, and use the different kinds of scan indoor.
Driving IC is the generic term for several kinds of IC, that are used to control the LED lamps, and as a bridge between the control system and lamps.
Power supply: a kind of device that used as a transfer from 220V AC into 5V DC. It always seems like a box in the cabinet.
5. What is viewing angle?
Viewing angle is the maximum angle at which a display can be viewed with acceptable visual performance. It includes horizontal viewing angle and vertical viewing angle.
Warm Notice
1. The unit price depends on the quantity, we can offer you at a competitive price.
2. Your inquiry related to our products or prices will be replied in 24hrs.
3. Well-trained and experienced staffs to answer all your enquires in fluent English.
4. Distributorship are offered for your unique design and some our current models.
5. Protection of your sales area, ideas of design and all your private information.                     creative outdoor led rental display for live music concert happy event party
