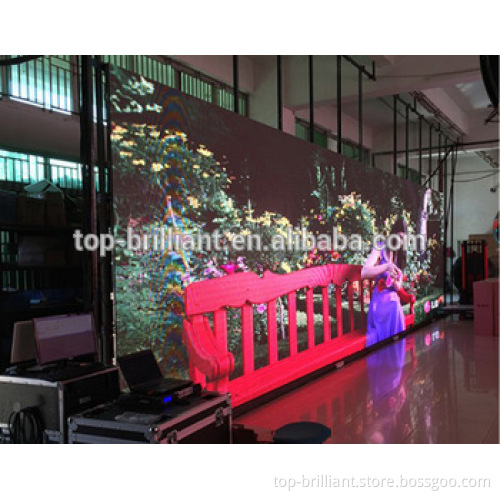

P5.95 outdoor SMD light weight clear video wall rental LED display

P5.95 outdoor SMD light weight clear video wall rental LED display Product Description   Famous Brands LED Raw Material Selection: 1) LED: well-known international brand, with wide viewing angle, little atenuation, good heat dissipation and vivid colors.   2)Driving IC: famous brands such as, Taiwan MBI, Japanese Toshiba, avoidable the defective   phenomena, such as dark bright, virtual light and so on.   3) Power supply: industrial-strength brand, the power max power resere of 20% the space, the range of voltage fluctuation is less 5%, high stability.   4) Connector: Aerial grade brands ensure the stable transmission of power and signal.   5) PCB Board: adopt 4-layer design.   6) Easy installation:100 pieces of cabinets' installation can be finished in one hour by one person.  The replacement of any cabinet can be done within 50 seconds.     [500x500mm and 500x1000mm led panel for optional ]

Indoor Aluminum Rental Outdoor LED Display Screen
Module	Pitch/mm	P5.95
	Module size/mm	250x250
	Density of pixel/(dots/m2)	28,224
	Pixel composition	1R1G1B
	Led encapsulation	SMD3535
	Resolution of module	42x42
	Optimum viewing distance	≥8-50m
Main	View angle / °	160 H,140 V
	Average power consumption/W/M2	260
	Max power consumption/W/M2	520
	Size of cabinet/mm	500x1000x75mm/500x500mmx75mm
	Resolution of cabinet	84*168/84*84
	Weight of cabinet/kg	9/10
	Driving method	1/7 scan constant current
	Frame frequency / Hz/S	≥60
	Refresh rate Hz/S	≥1000
	Luminance of white balance	≥6500 nits
	Operation of Environmental Temperature/℃	below 30  to  above 50
	IP rating	IP65
	Working vlotage	110-220 VAC/+/- 10%
	Grey scale/color	displaying colors≥16.7M(synchronized)
