Die cast aluminum slim lightweight outdoor rental led display

Specifications: Die cast aluminum slim lightweight outdoor rental led display

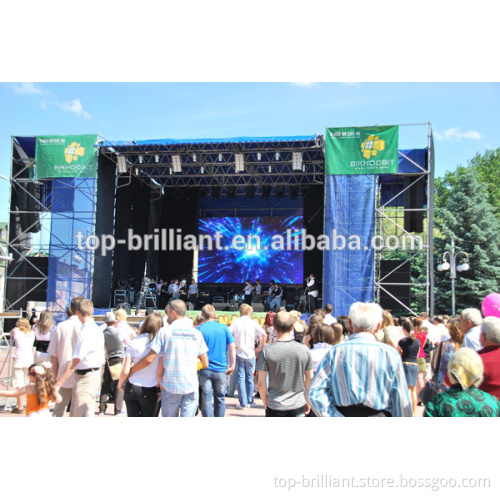

1.stage rental or permanent installation
2.Vivid color
3.SMD black led lamp
4.CE, RoHS, FCC   Features:     Product Description   Die cast aluminum slim lightweight outdoor rental led display 1. SMD3-in-1 technology are used for indoor LED display. 2. Wide view angle: 140 in horizonal and 140 in vertical 3. Special design and advanced SMT technology improves the heat dissipation 4. With high refresh rate controller, guarantee that no scan line when taking photos. 5. Slim and lightweight design. 6. Easy for assembling and connecting with fast lock and the connector added. 7. High color uniformity and clear image can bring you a vivid audio visual effect. 8. Items: P3,P3.75,P4,P5,P6,P8 etc.   outdoor rental led display  product techinical parameters:

Die casting Aluminum outdoor rental led display
Module	Pitch/mm	P6	P8	P10
	Module size/mm	192x192	320x160	320x160
	Density of pixel/(dots/m2)	27,777	15,625	10,000
	Led encapsulation	SMD3535	SMD3535	SMD3535
	Resolution of module	32X32	40X20	32X16
Main	Optimum viewing distance	6-100m	8-120m	10-150m
	View angle / °	140 H,140 V	140 H,140 V	110H,140V
	Max power consumption/W/M2	1100	1000	1000
	Size of cabinet/mm	576X576	640X640	640X640
	Resolution of cabinet	96x96	80x80	64x64
	Weight of cabinet/kg	12.5	15	15
	Driving method	1/8 scan constant current	1/4 scan constant current	1/4 scan constant current
	Refresh rate Hz/S	≥2000	≥2000	≥2000
	Luminance of white balance	≥6500 nits	≥6000 nits	≥5500 nits
	Operation of Environmental Temperature/°C	below 20  to  above 50
	Working vlotage	110-220 VAC/+/- 10%
	Grey scale/color	displaying colors≥16.7M(synchronized)
	Brightness adjustment	256 levels of each color(manually),100 levels of each color(automatically)
	Input signal	RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc
	Control system	linsn(sending card,receiving cards and Hubs)
	Average of non-failure life	>50,00h
	Life span	>100,000h
	Defect dot rate	<0.0001



Pitch	6mm	8mm	8mm	10mm	10mm	12.8mm	16mm	20mm	25mm
Density(dot/sqm)	27777	62500	62500	10000	10000	6104	3906	2500	2500
LED Encapsulation	SMD3535	SMD3535	DIP346	SMD3535	DIP346	SMD3535	SMD3535	DIP346	DIP346
Module Size(mm)	192*192	256*128	256*128	160*160	160*160	256*256	256*256	320*160	200*200
Module Resolution(pixel)	32*32	32*16	32*16	16*16	16*16	20*20	16*16	16*8	8*8
Cabinet Size(mm)	768*768	1024*768	1024*768	960*960	960*960	1024*1024	1024*1024	960*960	1000*1000
Cabinet Resolution(pixel)	96*96	128*96	128*96	96*96	96*96	80*80	64*64	48*48	40*40
Cabinet Weight(kg)	32.5	43	45	50	51	51	58	51	55
Max Power Consumption(w/sqm)	800	900	900	900	900	700	800	600	500
Ave Power Consumption(w/sqm)	400	450	450	450	450	320	400	300	250
Brightness(cd/sqm)	7500	7500	7500	7500	8000	6000	8000	6500	6000
Gray Scan	>4096	>4096	>4096	>4096	>4096	>4096	>4096	>4096	>4096
Refreshrate(Hz)	600-2400	600-2400	600-2400	600-2400	600-2400	600-2400	600-2400	600-2400	600-2400
Best Viewing Distance(m)	6-150	8-150	8-150	10-150	10-150	12-150	16-150	20-200	25-200
Drive Mode	Constant Current Drive
Viewing Angle	SMD: Horizontal:140° Vertical:140°     DIP: Horizontal:120° Vertical:50°
Protection Level	IP65
Working Temperature	-20°C-50°C
Working Humidity	10%-90%
Working Voltage	AC 110V~220V±10%
Refresh Frame Frequency(Hz)	60
Lifespan	100000hours
Malfunction Dot Rate	<0.0002
Control system	LINSN/ZDEC/DBSTAR/NOVA/COLORLIGHT

 outdoor rental led display outdoor rental led display outdoor rental led display outdoor rental led display outdoor rental led display outdoor rental led display   outdoor rental led display outdoor rental led display outdoor rental led display outdoor rental led display                   Packaging & Shipping   Package: wooden case or flight case or carton box package.   Shipping ways: A. By air, From factory to the most closed air port of destination. B. By world wide express, always use DHL,UPS, TNT, Fedex, EMS, door to door service C. By ship, the slowest shipping, from factory to the most closed sea port of destination.     Our Services   Quotation services 1. Offer the best solution for customers as required. 2.Offer the best price for with a specification 3,Warrty time is 2 to 5 years.     Company Information   Shenzhen Top Brilliant Electronics Co. , Limited promote the environment protection and energy saving with LED technology,we adopt the LED characterized with energysaving and envronmental friendliness as basic raw material. Now TOPLED offer :Rental LED Screen , Fixed Installation LED ScreenTransparent LED Curtain Screen,Dance Floor/Stair LED Screen,Flexible LED Screen,Front access LED Screen.and Perimeter LED Screen. TOPLED consider product quality as company life, we take serial reliable tests in each process from the initial production until finished product. The tests cover all important performances, including flatness, power consumption, brightness, color, shock resistance;IP rating and so on, TOPLED adopt the most strict quality control system to guarantee products with perfect quality.           FAQ   . What is LED?
LED is sanded for Light Emitting Diode, a kind of semiconductor which is used to give and receive the electronic signal into infrared rays or light, using the characteristics of compound semiconductor. This is used for household appliances, remote controller, electric bulletin board, various kinds of automation appliances.
2. What are Pixel Pitch, Pixel Density, LED QTY, and Pixel Configuration?
Pixel Pitch is the distance between neighboring pixels.
Pixel Density is the quantity of pixels per square meter.
LED QTY is the quantity of LED lamps per square.
Pixel Configuration is the description of the consistence of a pixel, for instance, we use 1 red lamp, 1 green lamp, and 1 blue lamp to compose a pixel, the pixel configuration is 1R1G1B.
3. What are LED Type, Module size and Module resolution?
LED Type is the description of LED lamp, for instance, the brand, the shape in physical, the size of the lamp, etc.
Module size is the measurement of a module.
Module resolution is the number of pixels per module.
4. What is Drive Method, driving IC and Power supply
Drive Method: always we use static, 1/4 scan, 1/8 scan, 1/16 scan, the latter one contributes to less brightness than the former. We always use the static outdoor, and use the different kinds of scan indoor.
Driving IC is the generic term for several kinds of IC, that are used to control the LED lamps, and as a bridge between the control system and lamps.
Power supply: a kind of device that used as a transfer from 220V AC into 5V DC. It always seems like a box in the cabinet.
5. What is viewing angle?
Viewing angle is the maximum angle at which a display can be viewed with acceptable visual performance. It includes horizontal viewing angle and vertical viewing angle.
