Outdoor fullcolor P10 led billboard from china

Outdoor fullcolor P10 led billboard from china

Get Latest Price

Delivery Time:: 12 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, China (Mainland)

Product Description

Specifications: Outdoor fullcolor P10 led billboard from china
1.Pemanent/Fixed installation
2.Vivid color
3.High brightness

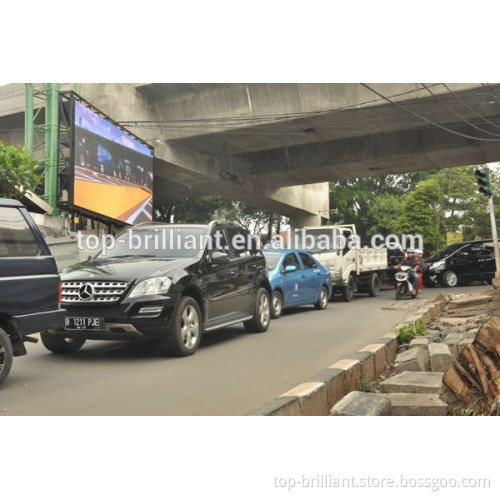

4.CE, RoHS, FCC Applications: Mainly for outdoor advertising,information publishing,journalism and communication in some places,such as cultural square,traffic arteries,stations,terminals,information centers,entertainment venues,shopping centers,commercial city and etc. Features and advantages: 1.Brightness adjust auotomatically 2.Multiform file formats:VGA, Video, AVI, MOV, MPG, DAT, VOB,etc
3.Information source:camera, video, VCD, DVD, LD, TV ,etc
4.Be connected with PC,website, and be controlled remotely
5.Support Multi language:English, French, Germany, Greek, Russian,etc
6.Weatherproof design, completely outdoor use Outdoor fullcolor P10 led billboard from china Technical Parameters:

Module:P10		LED Type	DIP346
Pixel Pitch	10mm	Refresh frequency	800Hz~2000Hz
Module Size	160x160mm	View Angle	120⁰/60⁰
Module resolution	16x16pixel	Working Environment	Temp:-20°C~60°C, Humidity:10%~95%
Dot density	10000pixel/sq. m	Working Voltage	AC:100V~120V AC:220~240V
Pixel configuration	1R1G1B	Lifetime	100,000Hours
The best view distance	>10m	Gray Scale	14bit/color
Cabinet dimension	960mmx960mm(Optional)	Color Display	1.07Billion
Cabinet resolution	96X96	Brightness	≥7000nit
Cabinet weight	55KG/SQ.M	MITBF	0.00001
Drive mode	Constant current,1/4 Scan	IP	IP65
Max Power Consumption	800W/sq. m	Warranty	2 years
LED Parameter	R:d(625-630nm) R:IV(400-450mcd)	G:d(522.5-525nm) G:IV(1800-2200mcd)	B:d(467.5-470nm) B:IV(350-400mcd)
Image adjustment	Brightness, contrast, tone, color range etc
Brightness uniformity	Ratio of min pixel brightness /max pixel<0.9(When each color reaches its highest brightness)
Effective control distance	Cat 5<100M / Multi-mode fiber:<500M / Single-mode fiber<20Km
Color Temperature/contrast	Brightness and contrast of red, green and blue can be adjusted by software,100 scales are available, color temperature is adjustable
Input signal	RF,S-VIDEO,RGB,RGBTV,YUT,YC,COMPISITION
Control system	Sending card+Receiving card+Hub card+DVI Card+Muti-funcational card(Optional)+Video processor(Optional)+ Fiber Transmitter(Optional)
