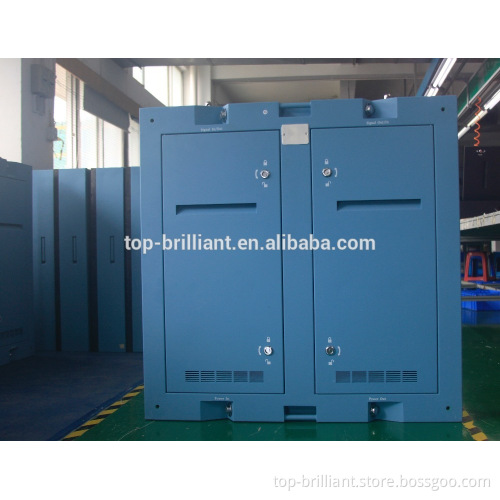

P10 SMD outdoor light weight led display

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, China (Mainland)

Product Description

Product Description Specifications Full Color RGB LED Module P10
1.High brightness led module
2.Favorable price
3.On-time delivery
4.2 years warranty

Module:P10		LED Type	SMD3535
Pixel Pitch	10mm	Refresh frequency	1,500Hz
Module Size	320x160mm	View Angle	110/75
Module resolution	32x16pixel	Working Environment	Temp:-20°C~60°C, Humidity:10%~90%
Dot density	10,000pixel/sq. m	Working Voltage	AC:100V~120V AC:220~240V
Pixel configuration	SMD	Lifetime	100,000Hours
The best view distance	10-100M	Gray Scale	14bit/color
Cabinet dimension	960mmx960mm(Optional)	Color Display	1.07Billion
Cabinet resolution	96X96	Brightness	≥8000nit
Cabinet weight	58KG/sq. m	MITBF	0.00001
Drive mode	Constant current,1/4 Scan	IP	IP65
Max Power Consumption	600W/sq. m	Warranty	2 year
LED Parameter	R:d(625-630nm) R:IV(400-450mcd)	G:d(522.5-525nm) G:IV(1800-2200mcd)	B:d(467.5-470nm) B:IV(350-400mcd)
Image adjustment	Brightness, contrast, tone, color range etc
Brightness uniformity	Ratio of min pixel brightness /max pixel<0.9(When each color reaches its highest brightness)
Effective control distance	Cat 5<100M / Multi-mode fiber:<500M / Single-mode fiber<20Km
Color Temperature/contrast	Brightness and contrast of red, green and blue can be adjusted by software,100 scales are available, color temperature is adjustable
Input signal	RF,S-VIDEO,RGB,RGBTV,YUT,YC,COMPISITION
Control system	Sending card+Receiving card+Hub card+DVI Card+PCTV Non-liner card+Muti-funcational card(Optional)+Video processor(Optional)+ Fiber Transmitter(Optional
