high brightness transparent led net screen

Specifications: high brightness transparent led net screen

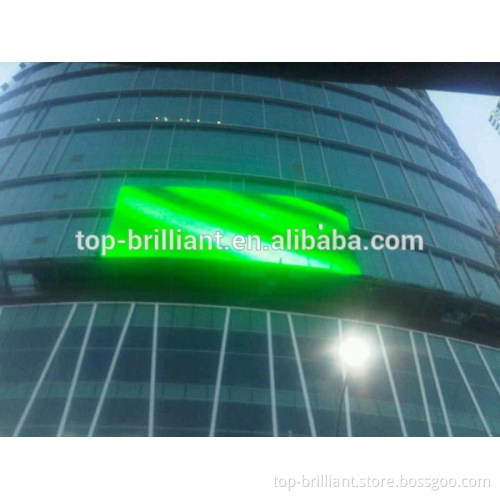

1.Nice for Glass building installation
2.Vivid color
3.SMD and DIP led lamp support
4.CE, RoHS, FCC       Product Description       high brightness transparent led net screen Technological Parameters:

Pitch	12.5mm	15mm	18.75mm	18.75mm	25mm	30mm	37.5mm	50mm
Density(dot/sqm)	6400	4444	2844	2844	1600	1111	3906	500
LED Encapsulation	SMD3in1	EYE LED	DIP346	DIP346	DIP346	DIP346	2R2G2B	2R2G2B
Module Size(mm)	47.5*500	1200*22	11*600	12*1200	12*1200	1200*12	1200*15	1200*15
Module Resolution(pixel)	4*40	80*2	1*32	1*64	1*48	40*1	32*1	24*1
Cabinet Size(mm)	500*500	1200*600	600*600	600*1200	600*1200	1200*600	1200*600	1200*600
Cabinet Thickness(mm)	78	88	79	88	88	88	88	88
Cabinet Resolution(pixel)	40*40	80*40	32*32	32*64	24*48	40*20	32*16	24*12
Cabinet Weight(kg)	7.3	15.5	8.8	15	14.5	13.5	13	12.5
Max Power Consumption(w/sqm)	800	850	600	600	600	450	500	450
Ave Power Consumption(w/sqm)	320	350	240	240	200	200	240	200
Brightness(cd/sqm)	4500	7000	6500	8000	6500	5000	6500	4500
Gray Scan	>4096	16bit	>4096	16bit	14bit	14bit	14bit	14bit
Refreshrate(Hz)	1000	1000	1000	1500	1500	1500	1800	1800
Best Viewing Distance(m)	13-150	15-150	18-150	19-150	25-200	30-3150	35-500	50-500
Drive Mode	Constant Current Drive
Viewing Angle	SMD: Horizontal:140° Vertical:140°     DIP: Horizontal:110° Vertical:50°
Protection Level	IP65
Working Temperature	-20°C-50°C
Working Humidity	10%-90%
Working Voltage	AC 110V~220V±10%
Refresh Frame Frequency(Hz)	60
Lifespan	100000hours
Malfunction Dot Rate	<0.0002
Control system	LINSN/ZDEC/DBSTAR/NOVA/COLORLIGHT

         Packaging & Shipping   wooden case or flight case. Shipping: A. By air, From factory to the most closed air port of destination.   B. By world wide express, always use DHL,UPS, TNT, Fedex, EMS, door to door service   C. By ship, the slowest shipping, from factory to the most closed sea port of destination.   Our Services   1. Offer the best solution for customers as required. 2.Offer the best price for with a specification 3.2-5 years warranty time.   Company Information   Shenzhen Top Brilliant Electronics Co. , Limited promote the environment protection and energy saving with LED technology,we adopt the LED characterized with energysaving and envronmental friendliness as basic raw material. Now TOPLED offer :Rental LED Screen , Fixed Installation LED ScreenTransparent LED Curtain Screen,Dance Floor/Stair LED Screen,Flexible LED Screen,Front access LED Screen.and Perimeter LED Screen. TOPLED consider product quality as company life, we take serial reliable tests in each process from the initial production until finished product. The tests cover all important performances, including flatness, power consumption, brightness, color, shock resistance;IP rating and so on, TOPLED adopt the most strict quality control system to guarantee products with perfect quality.       FAQ   1. What is LED?
LED is sanded for Light Emitting Diode, a kind of semiconductor which is used to give and receive the electronic signal into infrared rays or light, using the characteristics of compound semiconductor. This is used for household appliances, remote controller, electric bulletin board, various kinds of automation appliances.
2. What are Pixel Pitch, Pixel Density, LED QTY, and Pixel Configuration?
Pixel Pitch is the distance between neighboring pixels.
Pixel Density is the quantity of pixels per square meter.
LED QTY is the quantity of LED lamps per square.
Pixel Configuration is the description of the consistence of a pixel, for instance, we use 1 red lamp, 1 green lamp, and 1 blue lamp to compose a pixel, the pixel configuration is 1R1G1B.
3. What are LED Type, Module size and Module resolution?
LED Type is the description of LED lamp, for instance, the brand, the shape in physical, the size of the lamp, etc.
Module size is the measurement of a module.
Module resolution is the number of pixels per module.
4. What is Drive Method, driving IC and Power supply
Drive Method: always we use static, 1/4 scan, 1/8 scan, 1/16 scan, the latter one contributes to less brightness than the former. We always use the static outdoor, and use the different kinds of scan indoor.
Driving IC is the generic term for several kinds of IC, that are used to control the LED lamps, and as a bridge between the control system and lamps.
Power supply: a kind of device that used as a transfer from 220V AC into 5V DC. It always seems like a box in the cabinet.
5. What is viewing angle?
Viewing angle is the maximum angle at which a display can be viewed with acceptable visual performance. It includes horizontal viewing angle and vertical viewing angle.
