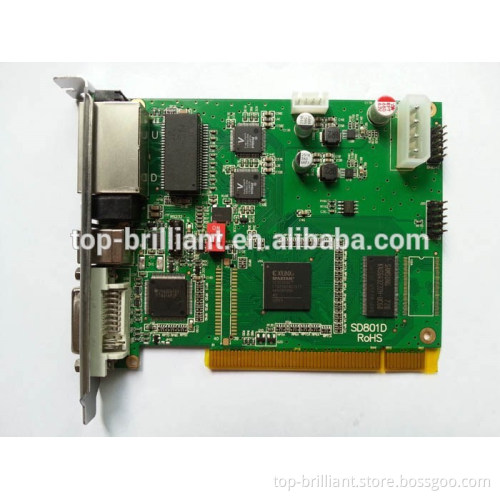

Linsn control system sending card TS801 TS802 TS901

Specifications Applied to place where it requires high-definition display and fast installation such as indoor and semi-outdoor stage, vocal concert.etc   1.Ultrathin and lightweight: aluminum cabinet, easy to install and dismantle. 2.High load-bearable: one square meter of floor is capable of bearing 1000kg weight, even a car can run on the product. 3.Waterproof SMD 3 in 1 LED lamp: IP65 grade, all-weather available. 4.Energy saving: low electric current, high-bright lamps. equipped with PFC switching power supply, save 30% electricity. 5. High refresh rate, high gray level: it can reach 16 bit by using PWM driving IC, refresh rate is more than 4000HZ, the gray level is still high even under the condition of low brightness. 6.Color correction: support dot-to-dot correction, guarantee the consistence of LED color and brightness, No chromatic aberration for new scrrens. 7.Dual back-up: both power supply and system dual back-up are optional, reliable performance.   Product Description   Linsn control system sending card TS801 TS802 TS901 Introduction:   1. 802 sending card including full-color sending card TS802 and dual-color sending card DS802.   Full-color sending card supports full-color, dual-color and single color led display   Dual-color sending card supports dual-color and single color led display.     2. 802 sending card max supports 2048*640   3. Supporting display mode: 640*480  800*600  1024*768  1280*768  1280*800 1280*1024 1440*900  1440*1080  1600*1200     1680*1050  1728*1296  1920*1080  1920*1200  2048*1152  2048*1280   4. Audio Transmission Function     802 sending card sends audio data using network cable, and Function board outputs audio signals to the display. Double 24bits    64KHZ hi-fi digital signal to analog signal or analog signal to digital signal, making display have the perfect video effect.   5. Cascade function   Through the dig switch on 802 sending card, several 802 sending cards can be easily cascaded to support a super large led    display   6. Sending card U/D port flexibility for carrying half width or half height   For example, TS801 can max support 1280*1024 with two ports   A single network output port supports 1280*512 or 640*1024   7. Sending card rotation function   In Sender setting, sending card has 0, 90, 180, 270 degree rotation function   8. Sending card zoom in/out function   In Sender setting, the ratio of width and height can be set to realize zoom in or zoom out   9. Supporting 10-bit colors    The seventh supports 8-bit colors: 256*256*256=16777216 kinds of colors.   The eighth supports 10-bit colors: 1024*1024*1024=1073741824 kinds of colors. It needs to work with our video processors using the 30 bits TTL.   10. Multi-display synchronous and combination functions.   One sending card can control multi-displays, realizing displays combination, synchronous display, and independent play.

By point correction, by card (cabinet) correction function	By point correction support single point, 2X2 points, 4X4 points and 8X8 point four correction mode, the biggest calibration 6144 points/module, red, green, blue each level of 256. By card (cabinet) used to display the between the correction of off color correction, red, green, blue each level of 256.
Intelligent identification card function	Intelligent identification procedures can identify double color, full color, virtual, lighting, etc all kinds of various drivers board scanning mode and various kinds of signal , recognition rate reached 99%, a collection in hand, do screen pillow.
65536 level (64 K) gray arbitrary setting function	According to the situation of display customers can arbitrarily set from no gray to level 65536 (64 K), make your screen to achieve the best display effect.
The refresh rate arbitrary setting, phase lock, synchronization function	set arbitrarily from 10 Hz refresh rate-3000 Hz, phase lock function to make the screen refresh lock the computer monitor refresh rate in integer times, put an end to the image rent, ensure perfect image reappearance. Phase lock synchronous range of 47 Hz-76 Hz.
Maximum dots	Double cable with 1280 x1024 dots, the single cable with 1024 X640 1280X512
Double cable heat backup function	The A and B two ports of receiving card can be used to input or output, can be used for two computers to control a screen at the same time, when one computer have problems, another one automatically replace it, also can be used for one computer with double cable control, when one cable have problems, another one automatically take it over, making the normal work of screen to get maximum security.
Many screens synchronization and composite function	Support a piece of sending card controlling pieces screens, the working state of screens can be arbitrary combination, synchronous  display, independent broadcasting, can be through the shortcut key, fast switching.
256 level automatically brightness adjustment	A level 256 automatic adjustment function make display brightness adjustment more effective.
Program online upgrade function	If the screen receiving card program needs to be upgraded, need to open display power and update through the LED studio, no need to detach receiving card  from the display.
Break the traditional ideas without dial code switch	No dial code switch design, all Settings through the computer.
Test function	Receiving card integration test function, need not take send card can test display, slash, gray, red, green, blue, and the light, etc many types test mode.
Long distance transmission	Maximum transmission 170 meters (measured), ensure transmission 140 meters.
Supporting software	LED studio 10.0

    More types:       LINSN sending card       TS851   TS803
TS801D
DS801
DS802           LINSN receiving card       RV901
RV902
RV908
RV921
RV931   RV808
RV807
RV804
RV803
RV802
RV801
                Packaging & Shipping   Waterproof P10 single Red color LED module panel with RoHS,CE Approach Package: wooden case or flight case. Shipping: A. By air, From factory to the most closed air port of destination.   B. By world wide express, always use DHL,UPS, TNT, Fedex, EMS, door to door service   C. By ship, the slowest shipping, from factory to the most closed sea port of destination.   Our Services  Quotation services 1. Offer the best solution for customers as required. 2.Offer the best price for with a specification 3.2-5 years warranty time. 4, Provide free technology support by phone or email. 5,Training for 2 persons for installation and maintance in factory.   Company Information   Shenzhen Top Brilliant Electronics Co. , Limited promote the environment protection and energy saving with LED technology,we adopt the LED characterized with energysaving and envronmental friendliness as basic raw material. Now TOPLED offer :Rental LED Screen , Fixed Installation LED ScreenTransparent LED Curtain Screen,Dance Floor/Stair LED Screen,Flexible LED Screen,Front access LED Screen.and Perimeter LED Screen.   TOPLED consider product quality as company life, we take serial reliable tests in each process from the initial production until finished product. The tests cover all important performances, including flatness, power consumption, brightness, color, shock resistance;IP rating and so on, TOPLED adopt the most strict quality control system to guarantee products with perfect quality.       FAQ   1. What is LED?
LED is sanded for Light Emitting Diode, a kind of semiconductor which is used to give and receive the electronic signal into infrared rays or light, using the characteristics of compound semiconductor. This is used for household appliances, remote controller, electric bulletin board, various kinds of automation appliances.
2. What are Pixel Pitch, Pixel Density, LED QTY, and Pixel Configuration?
Pixel Pitch is the distance between neighboring pixels.
Pixel Density is the quantity of pixels per square meter.
LED QTY is the quantity of LED lamps per square.
Pixel Configuration is the description of the consistence of a pixel, for instance, we use 1 red lamp, 1 green lamp, and 1 blue lamp to compose a pixel, the pixel configuration is 1R1G1B.
3. What are LED Type, Module size and Module resolution?
LED Type is the description of LED lamp, for instance, the brand, the shape in physical, the size of the lamp, etc.
Module size is the measurement of a module.
Module resolution is the number of pixels per module.
4. What is Drive Method, driving IC and Power supply
Drive Method: always we use static, 1/4 scan, 1/8 scan, 1/16 scan, the latter one contributes to less brightness than the former. We always use the static outdoor, and use the different kinds of scan indoor.
Driving IC is the generic term for several kinds of IC, that are used to control the LED lamps, and as a bridge between the control system and lamps.
Power supply: a kind of device that used as a transfer from 220V AC into 5V DC. It always seems like a box in the cabinet.
5. What is viewing angle?
Viewing angle is the maximum angle at which a display can be viewed with acceptable visual performance. It includes horizontal viewing angle and vertical viewing angle.
