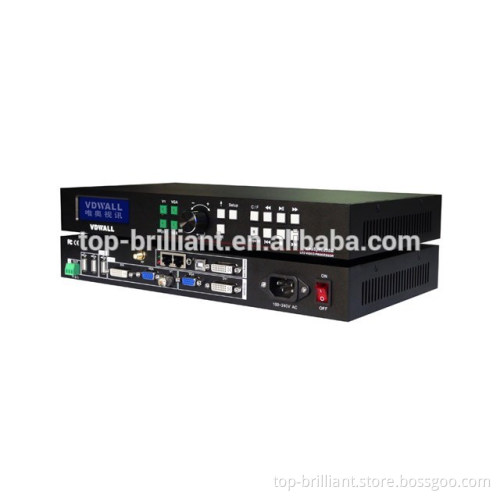

Videowall hd led display video processor LedSync850M with VGA ,DVI,USB,port

Specifications   1. The latest broadcast video processing technology brings clearer and more fluent images,
         more brilliant colors and more vivid scenes     2. 10+ Bit Faroudja® DCDI Cinema Processing
    3. New Faroudja® Real Color®
    4. Built-in HD multi-media player, USB2.0, video and image playing by USB supported
    5. Online real-time VOD through Wi-Fi supported
    6. DVI is HDMI 1.3a ( with HDCP ) compatible, HD 1080P input
    7. Seamless switching or Fade-in / Fade-out between three groups of input signals ( Video,
         VGA, DVI / USB )
    8. Maximum output resolution of single unit: 1920 x 1080
    9. Switching 4 input signals ( 1 x video, 1 x VGA, 1 x DVI, 1 x USB ) by one key
    10. USB HD multi-media player supports stereo audio output
    11. Easy setup and adjustment through knob and keys on the panel, Full-design USB protocol for
          operating and setting       12. Convenient operation, compact structure and easy carrying
    13. One sending card built-in ability and the structure design is compatible with most of sending
           cards available on the market
    14. 24 / 7 application, high reliability and stability
    Product Description   Videowall hd led display video processor LedSync850M with VGA ,DVI,USB,port    Feature one : USB playing and Wi-Fi     Feature two : Fade-in / Fade-out switching Specifications

Inputs
Type / Quantity	1 x Video 1 x VGA(RGBHV) 1 x DVI(HDMI1.3) 1 x USB
Video Standard	PAL / NTSC
Composite Video Amplitude / Impedance	1V(p_p)/ 75
VGA Format	PC(VESA)	≤1920x1080@60Hz
VGA Amplitude / Impedance	R,G,B = 0.7 V(p_p)/ 75
DVI Format	PC(VESA )	≤1920x1080@60Hz
	HDMI1.3(CEA-861)
USB	Video File Format	mkv, ts, avi, wmv, rmvb, mpeg, mpg, mp4, vob, mov, asf
	Video Encoding Format	H.264(AVC HD), VC-1(WMV HD), MPEG-2 HD, MPEG-1, MPEG-4, Xvid
	Picture Format	JPG, PNG, BMP ( maximum pixels: 15 million )
Input Connectors	Video:BNC VGA:15pin D_Sub( Female ) DVI:24+1 DVI_D USB: A Type
Outputs
Type / Quantity	1 x VGA(RGBHV) 1 x DVI
Output Resolution	1024 x 768@60Hz / 75Hz 1280 x 1024@60Hz / 75Hz 1366 x 768@60Hz 1440 x 900@60Hz 1600 x 1200@60Hz 1920 x 1080@50Hz / 60Hz
VGA  Output Amplitude	R,G,B = 0.7 V(p_p)/ 75
Audio Output	2.0Vp-p / 10K
Output Connectors	VGA OUT:15pin D_Sub( Female ) DVI OUT:24+1 DVI_D
Others
Control method	Panel / Upper computer software
Input Voltage	100-240VAC 50/60Hz
Overall Power Consumption	Max 20W
Temperature	0-40℃
Humidity	15-85%
Product Size	340mm(Length)x 190mm(Width)x 44mm(Height)
Weight( G.W.)	2.8Kg
Weight( N.G.)	1.7Kg

   Application : Exhibition, Engineering, Rental Performance, TV broadcast center, Stage Entertainment & Theater,
High-end meeting etc.
 LedSync850M Connection Diagram :   More type: LED video processor:   LBM806 LedSync820H LedSync850M LVP605 LVP605D LVP605S LVP603 LVP603S LVP606A LVP404 LVP408 LVP412 LVP86XX LVP8601
LVP848
LVP838 VSP112         Packaging & Shipping

Product Size	340mm(Length)x 190mm(Width)x 44mm(Height)
Weight( G.W.)	2.8Kg
Weight( N.G.)	1.7Kg
