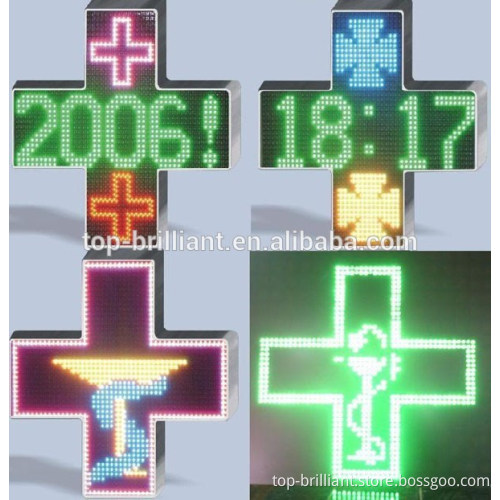

Cross Full Color pharmacy LED Display screen

Specifications: Cross Full Color pharmacy LED Display screen
1.Permanent/Fixed installation
2.Vivid color
3.High brightness
4.CE, RoHS, FCC           Product Description  Applications: Mainly for outdoor advertising,information publishing,journalism and communication  in some places,such as cultural square,traffic arteries,stations,terminals,information  centers,entertainment venues,shopping centers,commercial city and etc. Features and advantages:   1.Brightness adjust auotomatically
2.Be connected with PC,website, and be controlled remotely
3.Support Multi language:English, French, Germany, Greek, Russian,etc
4.Weatherproof design, completely outdoor use 5.Exceprt p10mm,we also have p16,p20,p31.25 red/blue/green/amber/white color and tri color led moving sign         Cross Full Color pharmacy LED Display screen   Specification  >>>

Item	P10-R	P10-G	P10-B	P10-W	P10-A	P10-RGB
Pixel pitch	10mm	10mm	10mm	10mm	10mm	10mm
Pixel configuration	1R	1G	1B	1W	1Y	1R1G1B
Pixel resolution	128×32 dots	128×32 dots	128×32 dots	128×32 dots	128×32 dots	128×32 dots
Max brightness	3500cd	8000cd	3600cd	8000cd	3600cd	8000cd
View angle(horizontal)	±60°	±60°	±60°	±60°	±60°	±60°
Gray-scale	1 grade	1 grade	1 grade	1 grade	1 grade	256 grade
Input voltage(AC)	220V	220V	220V	220V	220V	220V
Max power consumption	180W	180W	180W	180W	180W	470W
Cooling way	Natural cooling	Natural cooling	Natural cooling	Natural cooling	Natural cooling	Forced air cooling
Control mode	PC asynchronous control
Communication mode	LAN(RJ45),WIFI,U-disk to upload the program
Support program	Animation,text,date,time					Video,Animation,text,date,time
Protection level	IP65
MTBF	1000h
Life span	100000h
Operation temperature	-20~60℃
Operation humidity	10%~90%
Cabinet material	Steel (cold rolled iron)
Standard cabinet size	1310(L) ×350(H) ×75(T)mm
Net weitht	21KG
Packing size	1340(L) ×410(H) ×135(T)mm
Gross weight	23KG

 pictures:     Packaging & Shipping   Package: wooden case or flight case or carton box package.   Shipping ways: A. By air, From factory to the most closed air port of destination. B. By world wide express, always use DHL,UPS, TNT, Fedex, EMS, door to door service C. By ship, the slowest shipping, from factory to the most closed sea port of destination.
  Our Services   Quotation services 1. Offer the best solution for customers as required. 2.Offer the best price for with a specification 3,Warrty time is 2 to 5 years   payment terms: <2k, 100% payment need to be made in advance after the order is confirmed >2k, 30% as deposite , and balance before the shipment Payment terms: T/T ; Western Union ;       Company Information   Shenzhen Top Brilliant Electronics Co. , Limited promote the environment protection and energy saving with LED technology,we adopt the LED characterized with energysaving and envronmental friendliness as basic raw material.   Now TOPLED offer :Rental LED Screen , Fixed Installation LED ScreenTransparent LED Curtain Screen,Dance Floor/Stair LED Screen,Flexible LED Screen,Front access LED Screen.and Perimeter LED Screen.   TOPLED consider product quality as company life, we take serial reliable tests in each process from the initial production until finished product. The tests cover all important performances, including flatness, power consumption, brightness, color, shock resistance;IP rating and so on, TOPLED adopt the most strict quality control system to guarantee products with perfect quality     FAQ   1.What is LED?
LED is sanded for Light Emitting Diode, a kind of semiconductor which is used to give and receive the electronic signal into infrared rays or light, using the characteristics of compound semiconductor. This is used for household appliances, remote controller, electric bulletin board, various kinds of automation appliances.
2. What are Pixel Pitch, Pixel Density, LED QTY, and Pixel Configuration?
Pixel Pitch is the distance between neighboring pixels.
Pixel Density is the quantity of pixels per square meter.
LED QTY is the quantity of LED lamps per square.
Pixel Configuration is the description of the consistence of a pixel, for instance, we use 1 red lamp, 1 green lamp, and 1 blue lamp to compose a pixel, the pixel configuration is 1R1G1B.
3. What are LED Type, Module size and Module resolution?
LED Type is the description of LED lamp, for instance, the brand, the shape in physical, the size of the lamp, etc.
Module size is the measurement of a module.
Module resolution is the number of pixels per module.
4. What is Drive Method, driving IC and Power supply
Drive Method: always we use static, 1/4 scan, 1/8 scan, 1/16 scan, the latter one contributes to less brightness than the former. We always use the static outdoor, and use the different kinds of scan indoor.
Driving IC is the generic term for several kinds of IC, that are used to control the LED lamps, and as a bridge between the control system and lamps.
Power supply: a kind of device that used as a transfer from 220V AC into 5V DC. It always seems like a box in the cabinet.
5. What is viewing angle?
Viewing angle is the maximum angle at which a display can be viewed with acceptable visual performance. It includes horizontal viewing angle and vertical viewing angle.
