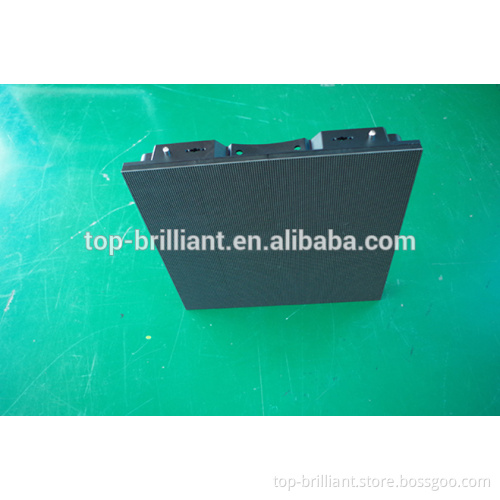

Full-color indoor rental LED display die-cast P3.9 P4.8 advertising display stage display

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Guangdong, China (Mainland)

Product Description

Specifications Full-color indoor rental LED display die-cast P3.9 P4.8 advertising display stage display

P3.9&P4.8 SMD indoor rental full color LED Display
Module	Pitch/mm	P3.9	P4.8
	Module size/mm	250x250	250x250
	Density of pixel/(dots/m2)	65,536	43,264
	Pixel composition	1R1G1B	1R1G1B
	Led encapsulation	SMD2121	SMD3528
	Resolution of module	64*64	52X52
Main	Optimum viewing distance	≥3	≥4
	View angle / °	140 H,110 V	140 H,110 V
	Average power consumption/W/M2	200	200
	Max power consumption/W/M2	400	400
	Size of cabinet/mm	500X500	500X500
	Resolution of cabinet	128X128	104X104
	Weight of cabinet/kg	9KG	9KG
	Driving method	1/16 scan constant current	1/13 scan constant current
	Frame frequency / Hz/S	≥60	≥60
	Refresh rate Hz/S	≥600	≥600
	Luminance of white balance	≥2000 nits	≥2000 nits
	Operation of Environmental Temperature	below 30 to above 50	below 30 to above 50
	IP rating	Front,IP43;Rear,IP34	Front,IP43;Rear,IP34
	Working vlotage	110-220V AC/+/- 10%	110-220V AC/+/- 10%
	Grey scale/color	displaying colors≥1.07B(synchronized)	displaying colors≥1.07B(synchronized)
	Brightness adjustment	256 levels of each color(manually), 256 levels of each color(automatically)	256 levels of each color(manually), 256 levels of each color(automatically)
	Input signal	RF,S-Video ,RGB, RGBH, YUV, YC &Composition ,etc	RF,S-Video ,RGB, RGBH, YUV, YC &Composition ,etc
	Control system	Linsn (sending card ,receiving cards and Hubs)	Linsn (sending card ,receiving cards and Hubs)
	Average of non-failure life	>5,000h	>5,000h
	Life span	>100,000h	>100,000h
	Functionaless dot rate	<0.0001	<0.0001
