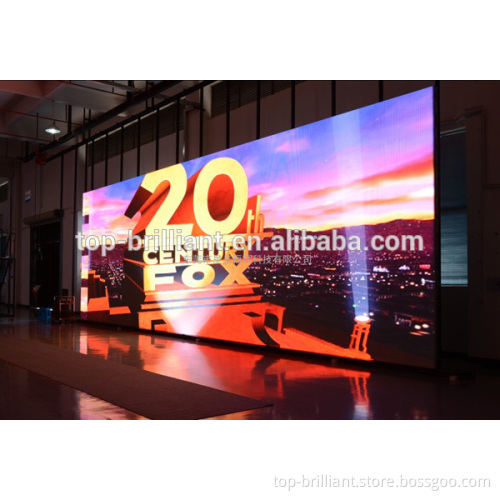

High definition full color smd indoor led large screen display

Specifications: High definition full color smd indoor led large screen display 1.Permanent/Fixed or rental mobile installation
2.Vivid color
3.CE, RoHS, FCC 4.High brightness
5.Wide viewing angle, definition
6.Low voltage and power consumption
7.High stability   Product Description   High definition full color smd indoor led large screen display 1. affordable price
2. any size is possible
3. easy to install
4. amazing performance   display more info   1)With good lightening accordance and no mosaic.   2)Can play different formats of image files, flash, video signal from TV, video and other equipments.   3)Different video frequency can be changed freely at the same time, and the image can be enlarged and shrinked.   4)High brightness, and can be adjustable, meets the needs of customer's requirements.   5)Uses real pixels rather than virtual pixcels, better viewing effect       indoor led large screen display   Technical Parameters:

Pitch	3mm	3.75mm	3.91mm	4mm	4mm	4.81mm	5mm	5.2mm	6mm	6mm	6.25mm	8mm
Density(dot/sqm)	111111	71111	65536	62500	62500	43403	40000	36864	27777	27777	25600	15625
LED Encapsulation	SMD3in1	SMD3in1	SMD3in1	SMD3in1	SMD3in1	SMD3in1	SMD3in1	SMD3in1	SMD3in1	SMD3in1	SMD3in1	SMD3in1
Module Size(mm)	240*240	240*240	250*250	240*240	288*288	250*250	240*240	250*250	240*240	288*288	250*250	240*240
Module Resolution(pixel)	80*80	64*64	64*64	60*60	72*72	50*50	48*48	48*48	40*40	48*48	40*40	30*30
Cabinet Size(mm)	480*480	480*480	500*500	480*480	576*576	500*500	480*480	500*500	480*480	576*576	500*500	480*480
Cabinet Resolution(pixel)	160*160	128*128	128*128	120*120	144*144	100*100	96*96	96*96	80*80	96*96	80*80	60*60
Cabinet Weight(kg)	8	8	9.5	8	10.5	9.5	8	9.5	8	10.5	9.5	8
Max Power Consumption(w/sqm)	750	700	700	600	600	600	500	500	650	700	650	600
Ave Power Consumption(w/sqm)	350	300	300	250	250	250	200	200	320	350	320	300
Brightness(cd/sqm)	1500	1500	1200	1200	1200	1500	1500	1500	1500	2000	1800	2000
Gray Scan	>4096	>4096	>4096	>4096	>4096	>4096	>4096	>4096	>4096	>4096	>4096	>4096
Refreshrate(Hz)	600-4800	600-4800	600-4800	600-4800	600-4800	600-4800	600-4800	600-4800	600-4800	600-4800	600-4800	600-4800
Best Viewing Distance(m)	3-100	4-100	4-100	4-100	4-100	5-100	5-120	5-120	6-150	6-150	6-150	8-150
Drive Mode	Constant Current Drive
Viewing Angle	Horizontal:140° Vertical:140°
Protection Level	IP43
Working Temperature	-20°C-50°C
Working Humidity	10%-60%
Working Voltage	AC 110V~220V±10%
Refresh Frame Frequency(Hz)	60
Lifespan	100000hours
Malfunction Dot Rate	<0.0002
Control system	LINSN/ZDEC/DBSTAR/NOVA/COLORLIGHT



Pitch	3mm		4mm		5mm		6mm		7.62mm		10mm
Density(dot/sqm)	111111		62500		40000		27777		17222		10000
LED Encapsulation	SMD3in1		SMD3in1		SMD3in1		SMD3in1		SMD3in1		SMD3in1
Module Size(mm)	192*96		128*128		160*160		192*192		244*244		320*160
Module Resolution(pixel)	64*32		32*32		32*32		32*32		32*32		32*16
Cabinet Size(mm)	480*480		640*640		800*800		768*768		732*732		960*960
Cabinet Resolution(pixel)	160*160		160*160		160*160		128*128		96*96		96*96
Cabinet Weight(kg)	12		21		32		29.5		27		46
Max Power Consumption(w/sqm)	750		600		500		650		700		500
Ave Power Consumption(w/sqm)	350		250		200		320		350		220
Brightness(cd/sqm)	1500		1200		1500		2000		2000		1500
Gray Scan	>4096		>4096		>4096		>4096		>4096		>4096
Refreshrate(Hz)	600-4800		600-4800		600-4800		600-4800		600-4800		600-4800
Best Viewing Distance(m)	3-100		4-100		5-120		6-150		8-150		10-150
Drive Mode	Constant Current Drive
Viewing Angle	Horizontal:140° Vertical:140°
Protection Level	IP43
Working Temperature	-20°C-50°C
Working Humidity	10%-60%
Working Voltage	AC 110V~220V±10%
Refresh Frame Frequency(Hz)	60
Lifespan	100000hours
Malfunction Dot Rate	<0.0002
Control system	LINSN/ZDEC/DBSTAR/NOVA/COLORLIGHT

indoor led large screen display   indoor led large screen display      indoor led large screen display   indoor led large screen display   indoor led large screen display     indoor led large screen display   indoor led large screen display     indoor led large screen display   indoor led large screen display   indoor led large screen display   indoor led large screen display   indoor led large screen display      indoor led large screen display     Packaging & Shipping   Package: wooden case/flight case/carton box/carton box with wooden frame. Shipping: A. By air, From factory to the most closed air port of destination.   B. By world wide express, always use DHL,UPS, TNT, Fedex, EMS, door to door service   C. By ship, the slowest shipping, from factory to the most closed sea port of destination.     Our Services   1)Reply your inquiry in 24 working hours.
2)Experienced staffs answer all your query in fluent English,Spanish,French,German etc
3)Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.
4)Special discount and protection of sales area provided to our distributor.
5)Warranty: Two-Five Years, a little investment for longer warranty time.       Company Information   Shenzhen Top Brilliant Electronics Co. , Limited promote the environment protection and energy saving with LED technology,we adopt the LED characterized with energysaving and envronmental friendliness as basic raw material. Now TOPLED offer :Rental LED Screen , Fixed Installation LED ScreenTransparent LED Curtain Screen,Dance Floor/Stair LED Screen,Flexible LED Screen,Front access LED Screen.and Perimeter LED Screen.   TOPLED consider product quality as company life, we take serial reliable tests in each process from the initial production until finished product. The tests cover all important performances, including flatness, power consumption, brightness, color, shock resistance;IP rating and so on, TOPLED adopt the most strict quality control system to guarantee products with perfect quality       FAQ    1. What is LED?
LED is sanded for Light Emitting Diode, a kind of semiconductor which is used to give and receive the electronic signal into infrared rays or light, using the characteristics of compound semiconductor. This is used for household appliances, remote controller, electric bulletin board, various kinds of automation appliances.
2. What are Pixel Pitch, Pixel Density, LED QTY, and Pixel Configuration?
Pixel Pitch is the distance between neighboring pixels.
Pixel Density is the quantity of pixels per square meter.
LED QTY is the quantity of LED lamps per square.
Pixel Configuration is the description of the consistence of a pixel, for instance, we use 1 red lamp, 1 green lamp, and 1 blue lamp to compose a pixel, the pixel configuration is 1R1G1B.
3. What are LED Type, Module size and Module resolution?
LED Type is the description of LED lamp, for instance, the brand, the shape in physical, the size of the lamp, etc.
Module size is the measurement of a module.
Module resolution is the number of pixels per module.
4. What is Drive Method, driving IC and Power supply
Drive Method: always we use static, 1/4 scan, 1/8 scan, 1/16 scan, the latter one contributes to less brightness than the former. We always use the static outdoor, and use the different kinds of scan indoor.
Driving IC is the generic term for several kinds of IC, that are used to control the LED lamps, and as a bridge between the control system and lamps.
Power supply: a kind of device that used as a transfer from 220V AC into 5V DC. It always seems like a box in the cabinet.
5. What is viewing angle?
Viewing angle is the maximum angle at which a display can be viewed with acceptable visual performance. It includes horizontal viewing angle and vertical viewing angle.
