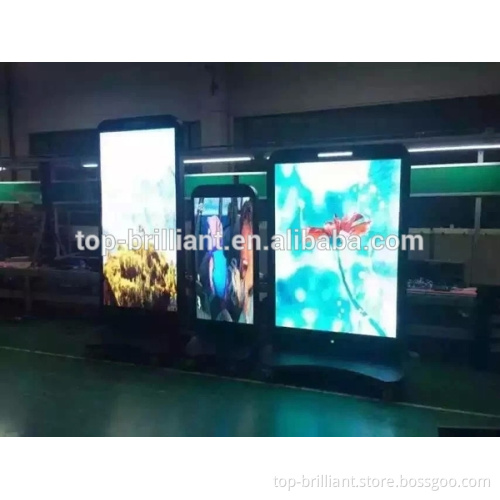

indoor outdoor led advertising screen with wheels

  Product Description     Specifications: p5 led advertising player/ iphone led advertising player with wheels mobile led advertising bring your business to big screen
1.stage rental or permanent,fixed installation
2.Vivid color
3.SMD black and white led lamp for opition.
4.CE, RoHS, FCC,ISO.   Features:   1. SMD3-in-1 technology are used for indoor LED display.   2. Wide view angle: 140 in horizonal and 140 in vertical.   3. Special design and advanced SMT technology improves the heat dissipation   4. With high refresh rate controller, guarantee that no scan line when taking photos.   5. Slim and lightweight design.   6. Can design to easy for assembling and connecting with fast lock and the connector added.   7. High color uniformity and clear image can bring you a vivid audio visual effect.    8. Models: P3,P4,P5,P6,P7.62,P10 etc.     indoor outdoor led advertising screen with wheels Technological Parameters:

LED Mobile Advertising Display Parameter
No.	parameter	P5mm 55inch	P5mm 77inch	P5mm 85inch
1	Pitch(mm)	5	5	5
2	Pixel configuration	1R1PG1B	1R1PG1B	1R1PG1B
3	LED encapsulation	SMD3528	SMD3528	SMD3528
4	Module size(mm)	160*160	160*160	160*160
5	Module Max consumption	≤15W	≤15W	≤15W
6	Module resolution	32*32	32*32	32*32
7	LED Screen resolution	128*256	224*320	192*384
8	LED screen size(mm)	715*1600*95	1285*1910*95	1060*2310*95
9	Basement size(mm)	715*800*245	1285*800*245	1060*800*245
10	Best View distance	5-15m	5-15m	5-15m
11	Max consumption(W)	480W	1050W	1080W
12	Brightness	≥1500nits	≥1500cdnits	≥1500nits
13	Driving method	1/16 constant scan	1/16 constant scan	1/16 constant scan
14	Communication mode	WEB platform,non-linear editing system special for advertising industry; support allwireless network,standard WIFI port,wireless4G+3G+2G+WIFI
15	Display content	support all froms of video,GIF carttoon,FLASH animation,images, TXT,file/document,ects



Pitch	3mm		4mm		5mm		6mm		7.62mm		10mm
Density(dot/sqm)	111111		62500		40000		27777		27777		10000
LED Encapsulation	SMD3in1		SMD3in1		SMD3in1		SMD3in1		SMD3in1		SMD3in1
Module Size(mm)	192*96		128*128		160*160		192*192		244*244		320*160
Module Resolution(pixel)	64*32		32*32		32*32		32*32		32*32		32*16
Cabinet Size(mm)	480*480		640*640		800*800		768*768		732*732		960*960
Cabinet Resolution(pixel)	160*160		160*160		160*160		128*128		96*96		96*96
Cabinet Weight(kg)	12		21		32		29.5		27		46
Max Power Consumption(w/sqm)	750		600		500		650		700		500
Ave Power Consumption(w/sqm)	350		250		200		320		350		220
Brightness(cd/sqm)	1500		1200		1500		2000		2000		1500
Gray Scan	>4096		>4096		>4096		>4096		>4096		>4096
Refreshrate(Hz)	600-4800		600-4800		600-4800		600-4800		600-4800		600-4800
Best Viewing Distance(m)	3-100		4-100		5-120		6-150		8-150		10-150
Drive Mode	Constant Current Drive
Viewing Angle	Horizontal:140° Vertical:140°
Protection Level	IP43
Working Temperature	-20°C-50°C
Working Humidity	10%-60%
Working Voltage	AC 110V~220V±10%
Refresh Frame Frequency(Hz)	60
Lifespan	100000hours
Malfunction Dot Rate	<0.0002
Control system	LINSN/ZDEC/DBSTAR/NOVA/COLORLIGHT
