Huge power and high quality mobile power for laptop and smartphone 15600mAh

Specifications 1.Output voltage scales:8

2.High Capacity: 58Wh

3.Out current:4.5A Max

4.USB output:5V/2A

5.certification:CE,ROSH

  Product Description Application: Notebook, Netbook, Micro-projector, PDA, GPS, MID, DSC, iPhone, iPod and so on.   Function Introduction

1	As DIY style, user can select output voltage by yourself.
2	Light weight, fashion appearance.
3	Wide input charging voltage range: 8~20V.
4	Shorter charging time: about 2 hours.
5	Three charging method: Power adapter, Car charger, Solar panel charger.
6	Charging LED display: Orange:charging; Green: full charged.
7	8 scales output voltage: 5V, 6V, 7.5V, 9V, 12V, 14V, 16V, 19V.
8	Output current of DC OUT port: 4 ~ 4.5A.
9	USB port's output voltage/current: 5.25~5.4V / 2.0A.
10	Voltage/capacity display: 8pcs blue LEDs indiate the relate voltage scale and remaining capacity.
11	Output: capacity: 5V/9.8Ahr, 6V/8.16Ahr, 7.5/6.53Ahr, 9V/5.44Ahr, 12V/4.08Ahr, 14V/3.5Ahr, 6V/3.06Ahr, 19V/2.57Ahr
12	Automatic lock voltage scale function: It will auto lock voltage scale while power on and connected with loading current over 80 mA. At this moment, the voltage is non-adjustable to avoid damage the device from error operation on line. The push button wil l light blue to indicate itself is in the capacity display function.
13	With extend capacity function: It can extend the battery capacity by extended battery pack MP3460 from 50W to 100W.
14	With pass through charging function: It can charge and power your device in the meantime,and will charge your device internal battery fully in priority, also it can charge the MP3450D from AC power adapter.
15	With uninterrupted power system function: MP3450D will power your device in time if the AC power shut down to avoid your device from shutting down.
16	With multi-protection function: Over charge / over discharge / over current / over voltage / short circuit / over temperature protection.
17	Low self-discharge, can be store 1 Years Without Using.
18	Cycle life: 300~500 cycles.
19	Safety Certification: CE, 3C, RoHS.

Electric Specification

NO.	Item	Rated Performance
1	Battery cell	Li-ion  2600mAh x 6PCS (Samsung)
2	Capacity	15600mAh (60Wh)
3	DC OUT port's output voltage	5V, 6V, 7.5V, 9V, 12V, 14V, 16V, 19V (Adjustable)
4	Ripple voltage	<=100mV
5	DC/DC  transfer efficiency	94~97%
6	DC OUT port's Power	55Wh
7	DC OUT port's output current	4A(Constant), 4.5A(Max.)
8	DC OUT over-current protection	5~7A
9	USB port's output voltage	5.25~5.4V
10	USB port's output current	1.5A(Constant) , 2.0 A(Max.)
11	USB port's over-current protection	2.2~3.0 A
12	Self-discharging current	a,
13	DC IN charging voltage	8~20V
14	DC IN charging current	800~1200mA
15	Charging time	3~4 Hours
16	Charging indicator	Orange: charging, Green: fully charged
17	DC IN JACK dimension	5.5~6*2.0~2.1*10.5(inside "+",outside "-")

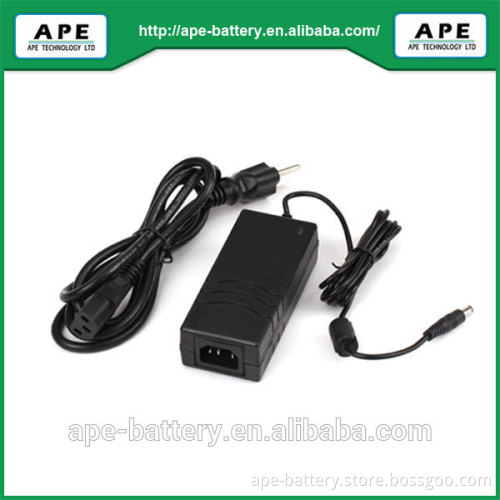

18	Power adapter voltage/current	20V/3.5A
19	Solar panel charger voltage/current	12~20V/ >2000mA (the DC input jack be plug by solar panel output )
		28~35V/ 50~ 2000mA (charged by solar panel to the Capacity extend port )
		12~24V/ 50~ 2000mA (The Sun-booster adapter is optional for charged by the solar panel ;the output side (3pin plug )connected to   the Capacity extend port.)
20	Car charger voltage/current	9~15V/2.5A (1. Car charger optional accessory; 2. It only for charging by car charger, it can't work on pass through charging)
21	Capacity indiation by voltage/capacity push button	Push button light blue(except item 1), 8pcs blue LEDs indication capacity. (1. power off or 2. power on without connected output cord or 3. Power on and connected loading after auto lock or 4. charging state without connected output cord. The push button’s indicator L)
22	Adjust voltage by voltage/capacity push button	8pcs blue LEDs indicate 8 scales voltage (Power on and DC OUT port connected the output cord without connected loading, The push button’s indicator LED will no light)
23	Automatic lock-voltage load current	80mA ± 40mA (The output voltage scale will auto lock while connected loading’s current over this limited)
24	Pass through charging function	Firstly offer power to Laptops working and charging Laptop’s internal battery. Secondly charging MP3450D battery after Laptop’s internal battery charged fully. (It will stop charging while the loading  current output is more than2±0.2A on passing through charging state)
25	Power interrupted timing for loading	0ms (when loading current)
26	The Capacity extend port function	1. connected with MP3460 for battery capacity extend to double or 2.connected with 3-pin cable connecter or sun-booster adapter for solar panel charged.
27	Over-charge protection voltage	4.35V±0.05V /cell, 26.1V±0.3V/pack
28	Over-discharge protection voltage	3.1V±0.05V/cell, 18.6V±0.3V/pack
29	Temperature protection	130°C
30	Typical weight	420±20g
31	Operation temperature	Charging: 0~40°C, Discharging: -10~50°C
32	Storage temperature	1.-20~20°C(one year) 2. -20~45°C(three months) 3.-20~60°C(one month)

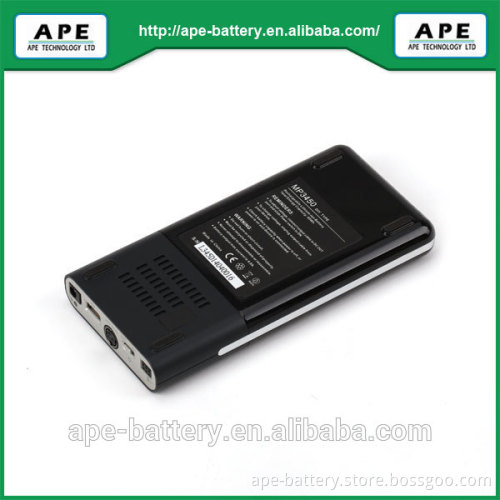

MP3450D Photo Gallery   Operation Panel Operation Guide – There are two situations: Indoor Application — working for Pass through charging The AC power adapter will offer power to laptops working and charged laptop' s internal battery firstly. It will follow charged MP3450D after laptop' s internal battery has charged fully. The MP3450D also will be charged fully at finally. It will total charged fully after 7~8h by connected as this diagram if empty of all battery (MP3450D&Laptop' s internal battery). It doesn' t matter the laptop is operated or not. It will auto stop charging MP3450D battery while offer to Laptop' s loading current higher than 2±0.2A.; it will start charging MP3450D if Laptop' s loading current less than 2±0.2A. The Laptop' s demand power always priority one of support from AC Power adapter. Outdoor application — Back-up power for your device Please check loading device demand voltage/current before connected the DC OUT port of MP3450D. It will shut down if demand current over MP3450D maximum output 4.5A. Charging Ways Charging main body battery capacity by 2 ways:   A. Charging by AC Power Adapter The output connecter of AC Power Adapter plug into DC IN port of MP3450D for Charging. The push button' s indicated LED will light blue color at same time. The AC Power Adapter is inside the standard package. Power Adapter' s specification: a. Input AC voltage range: 100 to 240V AC b. Frequency: 50~60HZ c. Maximum input power: 70W (output load 3A) d. Input current (no load): e. Standby power: f. Output voltage: 20±1V(No load or Loading current 3A) g. Efficiency: ≥85% h. Over- Current Protection: 4.7-6A i. Hi-POT test: 1.5KV AC for 60s between primary to secondary B. Charging by Car Charger The output connecter of Car charger plug into DC IN port for charging.The push button' s indicated LED will light blue color at same time. The car charger is optional accessory. Car charger' s specification: The output is directly connected to input of car charger. a. The input voltage/current of car charger : 9 ~14V / 2.5A b. The output voltage will follow up input voltage. c. It only can charging MP3450D by car charger. But can' t apply to the pass through charging state. C. Charging by Solar panel Charger Due to the output' s specification of Solar panel charger is different. There is 3 ways to charge by different cable & adapter plug into different port. Please check Solar panel charger specification firstly. There are 3 ways to charge as below: Way1: suitable for: a. The output current of solar panel: > 100mA b. The OCV voltage of solar panel: 9V ~25 V The output connecter of solar panel charger directly plug into DC IN port Way2: suitable for: a. The OCV voltage of solar panel: 26V ~ 35V b. The output current of solar panel : > 50mA The output connecter of solar panel charger plug into the DC IN of 3-pin cable; the output of 3-pin cable plug into the Capacity extend port of MP3450D. The 3-pin cable (optional accessory) diagram as below: Warranty Warranty: One year.   Company Information   Company Description APE TECHNOLOGY LTD. (Dongguan) a global supplier of portable rechargeable battery modules (Laptop battery packs, Solar batteries, Tabletop Media batteries, Martial batteries, and Medical apparatus Batteries). Established in 1999, APE is dedicated to developing, manufacturing, and selling battery packs, applied to a variety of portable equipment.   Portable product world market will be larger and larger. We estimate optimistically that our performance will jump up and plan to be on-desk in 2010~2015 under this favorable condition.   Besides continuously developing market share in this field, APE has also designed the operating principles as follows: 1. To stabilize initiating customers, develop new customers and upgrade customer service quality 2. To develop potential niche products and raise productivity and product quality 3. To develop high added-value of Taiwanese factories to maintain profits 4. To expand product capability of Mainland Chinese factories to supply merchandise from the nearest source and decrease production cost 5. To enforce relationships between international well-known customers and suppliers   Packaging & Shipping     Our Services We commit to: 1. In compliance with governmental laws and environmental regulations. 2. Work in a manner of considering green product design to minimize pollution generating. 3. Implement waste reducing and control for recycling. 4. Promote energy conservation.     FAQ
