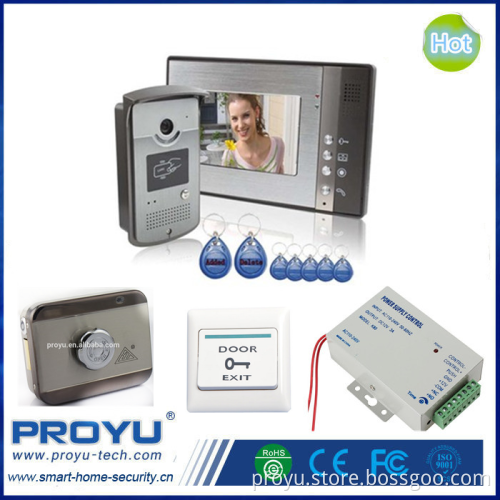

Apartments 7" Monitor Home Color Video Door Phone Intercom System Kit Support ID card unlock + Power supply +Electric control L

    1. 7" Color Monitor Touch Key Video Door Phone System with RFID card reader PY-802MEID11
Features:  7”color TFT LCD with sensitivity touch panel. No radiation, low power consumption    Infared LEDs for night vision, more convenient.    Rainproof cover design, antioxidative Outdoor Unit with piano bakes lacquer panel.    16 kinds of rings for selection    The Volume, brightness and contrast can be adjusted    Piano bakes lacquer panel design on indoor unit, more fashionable and luxury    Hands free intercom, one-button touch makes perfect experience.    Comes with 5 RFID keyfobs,a push release button switch    Support one camera with several monitors, if you need more monitors, please feel free to contact us before bidding.      Added card
This card can authorize the ordinary RFID card to open the E-lock and the operations are shown as follow: Brushing the Added card on the camera-then brushing the ordinary RFID card- Brushing the Added card on the camera again at last. At this time, the ordinary RFID card can be used for opening the door lock.   Deleted card
This card can be used for canceling the authorization of opening the door lock, and the operations are shown as follow: Brushing the deleted card on the camera-then brushing the ordinary RFID card on the camera- Brushing the deleted card on the camera again at last. At this time, the ordinary RFID card is not available to open the door lock.

Outdoor Camera
Night Vision		IR Light, visible within 5 meters
Vision Angle		92° Wide Angle
Resolution		> 420 TV Line
Plus Control		Automatically
Power Consumption		Standby: 0.1W; Working: 4W
Working temperature		-10°C~+55°C
Installation		Wall mounted
Size		168(L)*110(W)*65(H)mm
Net Weight		310g
Indoor Monitor
Screen			7'' wide angle TFT LCD, 16:9 Display
Resolution			480*RGB*234
Power input			AC100V-240V 50Hz-60Hz
Power output			DC 15V
Current output			1200mAh
Delay Calling time			120s ±10%
Delay Monitoring time			40s ±10%
Valid Distance			80M (4x0.65 mm2)
Power Consumption			Standby: 0.5W; Working: 8W
Transmitting Distance of Image			about 200m
Viewing Angle			65°
Adapter Input			AC100~ 240V, 50/60Hz
Adapter Output			DC 15V
Working Temperature			-40°C~+70°C
Standby Temperature			-20°C~+60°C
Installation			Wall mounted/lift on desk
Size			225(L)*128(W)*23(H)mm
Net Weight			460g
Electric Drop Bolt Lock
Power supply	DC 12V/1A
Size of lock body	8.07" x 1.38" x 1.65" in (L x W x H)
Cylinder panel size	3.54" x 0.98" x 0.08" in (L x W x H)
Cylinder Size	0.67" in length, 0.63" in diameter
Live out	N.C (0.5A) connection point inside
Power consumption	Start: 0.8A,Normal: 0.09A
Weight	800G
Safety measures	Unlock when not energized
	Reverse connection of negative and positive poles of battery

       2.Home Security Access Control Electronic Door Lock For Door Phone Doorbell PY-EL1   3.Hot-selling 12V/3A Access Control Switching Power Supply PY-PS3   The power source is small and exquisite , simultaneous remote control opens the door,installation is easy to carry about.   Merit:   Voltage range width all can be put into use regularly from 100 V-260V , one by one national power consumption of world voltage , weight suitable are light , transportation is convenient , the disturbance is small, output voltage characteristic property reduces stiffly from carrying idler to being fully loaded with voltage fluctuation only when +/-the temperature that locks, locks up to the electricity rises (compared with labor frequency power source) greatly.   Shortcoming: The component is expensive , assembling handicraft is complicated.   Exchange imports: Standard AC100V-260V 50-60HZ   Direct-current outputs: Stabilivolt DC12V/ 3 A   The direct under the control of electricity is locked up: In case that time lapse controls a circuit , unblanking time may in 0-15, the second is arbitrarily adjustable.   Automation protection function: Think that the power source exports meeting automation protection nothing voltage when short circuit happened in the circumferential circuit.   Our Services   Payment Terms                                                                                                         1. Paypal 2. T/T (Telegraphic Transfer) or Western Union 3. Cash for face to face business   Shippment Method                                                                                                                                          1. International Express(DHL, TNT, Fedex, UPS, EMS), take about 3-7 days 2. International Airline, take about 5-15 days differently. 3. International Sea Shipping, slow but cheap for heavy goods, take about 10-50 days differently.   Product Warranty                                                                                                                                             We provide 1~2 years warranty from the date of delivery but lifetime technical support.
