Multiple Used UHF Antenna Long Range RIFD Card Reader

                 Multiple Used UHF Antenna Long Range RIFD Card Reader                                        Technical Parameters:   Frequency Range: 902MHz~928MHz (Ajustable for local regulations)
Tag protocols:  ISO18000-6BEPC Class 1EPC Class 1 GEN 2
Operating Method:  FHSS or fixed frequency(setted by software)
Antenna ports:  Built-in 12dBi vertical polarization antenna
Max RF power:  30 dBm
Power smoothness:  0.5 DB
RF power range:  20~30 dBm,Adjustable by software
Identify tag mode:  Identify tag mode can be setted as: Reads the tag in fixed time automatically or; read tag after external triggering or software command.
Identify tag time:  <8ms(Identify single tag)
Reading/Writing tag time:  No more than 5ms every 8 bytes when reading, 25ms every 4bytes when writing.
Reading/Writing tag distance:  8M-15M  when reading, writing range is 70% of reading range(depend on antenna)
Communication interface: Standard: Wiegand.( RS-232,RS-485,USB should be customer-made )
Standard set:  1 triggering input    ( 2 electric relay outoput should be customized)
Power supply:  DC 9V/DC12V
Power consumption:  ≤5W
Size:  450mm*450mm*120mm
Package dimension:  600mm*490mm*130mm
Gross Weight: 8.0 KG LR2
Work Temperature:  45`C~75`C 49°F~ 167°F
Storage Temperature:  50`C~85`C 58°F~ 185°F

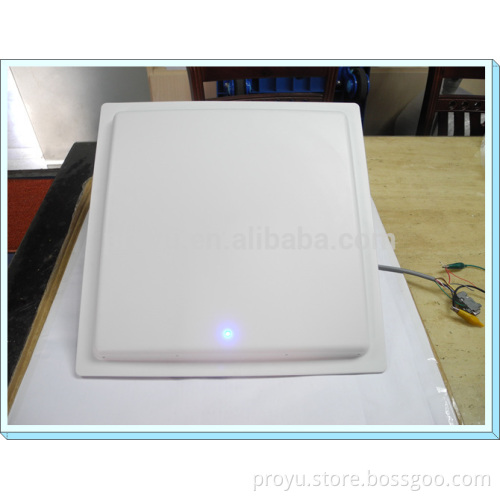

Work status indication: Buzzer   Application:      More Pictures about Our UHF Antenna Card Reader
