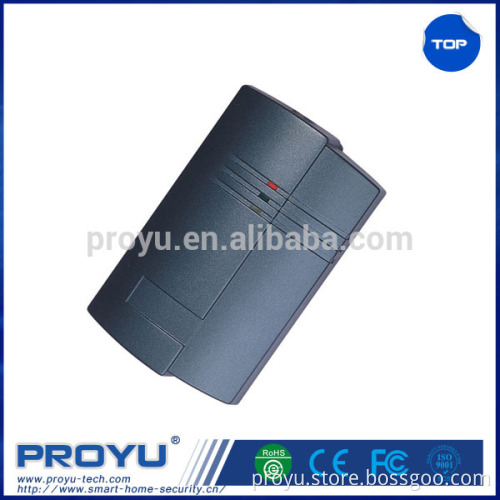

Smart card reader, access control card reader PY-CR5

RF card access control card reader PY-CR5(with cheap price and good use)   Property: 1. Dimension:123mm*76mm*23mm 2. Communication:WG26(WG34 optional)
3. Card Type:EM/ID  IC/MF1
4. Performance:Full sealed for weather proof   About Use:   When the card approach the reader, the red light turn into green, after glinting to turn redcolor again, the buzzer sound shows transiting data. It has 500ms proximity time distance for card proximity. After finishing card proximity, if the same ID card is still in the proximity range, reader will not send out the data, neither giving any sound hint. But for Different ID card entering Proximity Area, Reader can do response continually and send out the data. Specification:·        Wiegand 26bits/ Wiegand34bits /ABA Standard Format Data Output   ·        Less than 0.2 second Response Speed   ·        Less than 0.5 seconds Proximity Time Distance   ·        2-15cm Proximity Range   ·        Support EM4100 ID Card or compatible with it( 64bits, Manchester Code) and MIFARE® Card  ·        -25 to 75 Ambient Temperature,10%-90% Ambient Humidity   ·        Built-in Antenna   ·        Built-in LED (Double Color LED)   ·        Built-in Loud Speaker (Buzzer)   ·        DC 12V Working Voltage,70mA Working Current   ·        100 Meters Communication Distance   ·        Real Time Data Transfer   ·        White or Black Color   ·        114*76*16 (mm)     Installation:  Using + type screw driver to loosen the screw between the panel and motherboard. And then embed the motherboard to the side wall with the plastic plug and screws.   Wire Connection:  Red        DC 5V-16V Black       GND Blue         D1 White        D0 Brown        BEEP Green        LED Yellow       Alarm   Notice:  1. Confirm the electric voltage (DC12V) and differentiate positive anode and cathode of power supply.   2. When external Power is used, make sure sharing the power with Controller Box or using the same GND.   3. When the distance between card reader and controller is more than 50m, please use Power Line with at least 1.5 square cm Dia, or using several parallel Network wires.       Product shows as follow:      Need more information, please just contact us!
