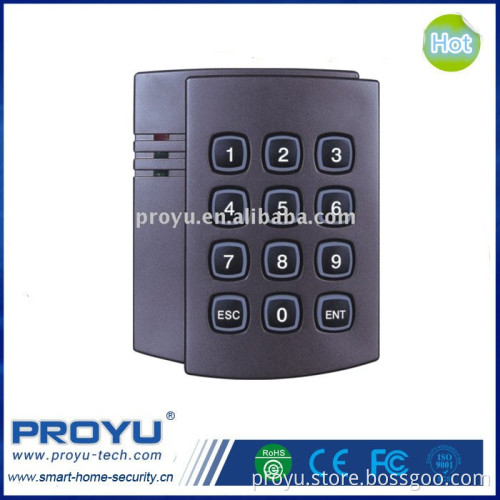

Hot selling Single door Access Control kit with keyborad PY-AC116
  • Hot selling Single door Access Control kit with keyborad PY-AC116
  • Hot selling Single door Access Control kit with keyborad PY-AC116
Hot selling Single door Access Control kit with keyborad PY-AC116
Hot selling Single door Access Control kit with keyborad PY-AC116

Hot selling Single door Access Control kit with keyborad PY-AC116

Get Latest Price
Delivery Time:
3 Days
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: Guangdong, China (Mainland)
Product Description
Product Description
Single door smart card access control ID or IC card for optional PY-AC116
Working environment:
Voltage: DC +8 V-+15 V (standard 12V)
Current:when Do not drive electric lock ≤ 70mA
Temperature: 0 °C -70 °C
Humidity: 30% -90%

5 kinds of open-door mode :
card to open the door
Password to open the door
card + password to open the door
card + card to open the door
password + password to open the door
Wiring port definition and performance:
+12 V: powersupply anode, the effective range: DC +8 V-+12 V
GND: power supply cathode, public land
ALM: alarm output and alarm output low level
ST:   STATUS door magnetismterminal
BT:   BUTTON go button terminal, low-level unlock
DO:  Weigand 26 reader data lines (data 0)
D1:  Weigand 26 reader data lines (data 1)
NC: normally closed relay points, current load capacity DC1A/120V
NO: normally open relay point, current load capacity DC1A/120V

Features:
500 people registered capacity, high cost performance, digging every hardware resources.
Quick issuers mode, whether it is registered general card or the card with a password can be registered,
passwords input setup by cardholders their own input in the first time
door state detection, only after close stable then start locking signal, preventing the door in the swing when the latch, resulting in on the impact of electric locking bolt.
with door magnetism interface, with the alarm when  open the door violence.
Indicator:
Red light: Power instructions the  red Power is red light means normal.
Green light: the green light, said unlock, put out that state lock.
Yellow light: yellow light flashing, said waiting for keyboard input, always yellow light open said that the programming mode.

Note:
A machine does not have this feature
different models registered capacity from 100 to 5,000 range.
