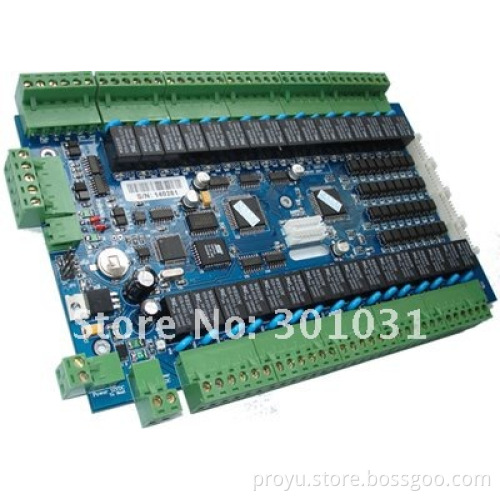

Lift controller RS485 Elevator Controller expand to controller 128 floor and connecting other multi door access controller PY-E5

RS485 elevator controller is one RS485 access controllers which use standard 485 industrial COM port to communicate with PC with the distance as long as 1200 meters. One RS485 line can connect 255pcs of RS485 access controller. Each panel has 32 output, and can connect an expansion panel, output control interface can be as many as 60pcs and we can set NO or NC. Software is compabible with all of our network access controller. This panel can be used to elevator access and locker access.   Features: 1.Standard 485(baute rate 9600) every 485 line can connect 255 controller 2.Can connecting other multi door access controller to set up a network and manage in one software 3.Capacity: 54000 cards, 60,000 records, 1000 alarm records 4.Time zone: 8 groups, and can setting related multi door opening method like card, card + password, double card…. 5.Support remote door opening, remote open or close fire alarm, alarm 6.Support many alarm events’ output, like invalid card, invalid time, door alarm, door opening time surpassing. 7.Support 2 wiegand card reader, automatically 26,34,37 protocal 8.32 input, 32 output, can each panel can connect 3 expanded panels, totally control 128 floors.   Technical Parameters:

user	30000
Log records	60000
Alarm capacity	10000
Communication	RS485
Door open method	Card, Password, Card+Password, Double card, Fist card, Software, Fire alarm, Release button, Door timer
Panel size	218mm*136mm*23mm
Panel color	deep blue
Temperature	<=60 degre
Enviroment humidity	10%-95% R.H
Voltage	DC12V
Working current	<=130ma
Rated power	<=1w
Power off protection	10 years
Panel weight	about 450g
Box color	brown
Box size	260*75*60mm

  Access control software features: Support RS485 and TCP/IP access controller at the same time. All of access controller is using the same software management.
Support access control and lift access controller and locker access controller management at the same time.
Support 3 kinds of language, and customer can add their own language as their will.
Simple operation, finishing operation by single click, double click, or right click.
Real time monitoring like and kinds of alarm, card swiping.
Support color indicating, using different color to stand for different records.
Support full screen showing.
Access,Support Access and SQL server at the same time. The default is Access.
Three operation authorized: set up users for door, set up door for users, and set up permission teams.
Support automatic shift arrangement(only SQL available)
Support daily records, user can check the operation and management history record, easy to manage and system maintenance.   Company Information     Contact Information
